| Technical Indicators | Parameter | Technical Indicators | Parameter |
|---|---|---|---|
| Measuring range | 0~ 15m (customized) | Blind area | 0.35m ~ 0.6m |
| Range accuracy | ± 0.5% (standard) | Distance resolution | 1 mm |

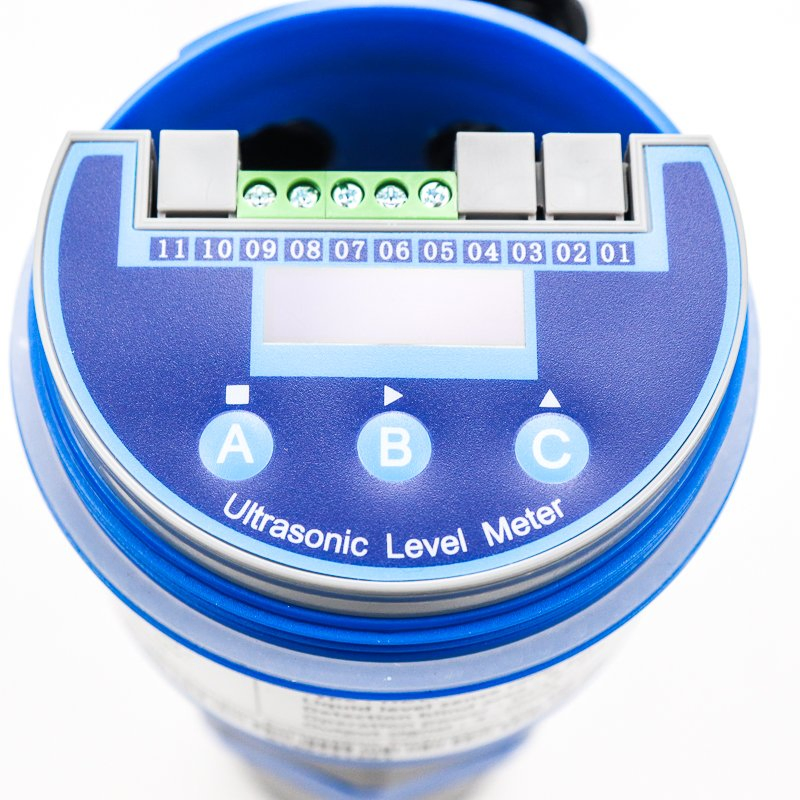

| Compression force | Atmospheric pressure | Meter Display | LCD display |
| Analog Output | 4 ~ 20 mA | Supply voltage | DC24V |
| Ambient temperature | - 20 ºC ~ + 60 ºC | Protection class | IP65 |

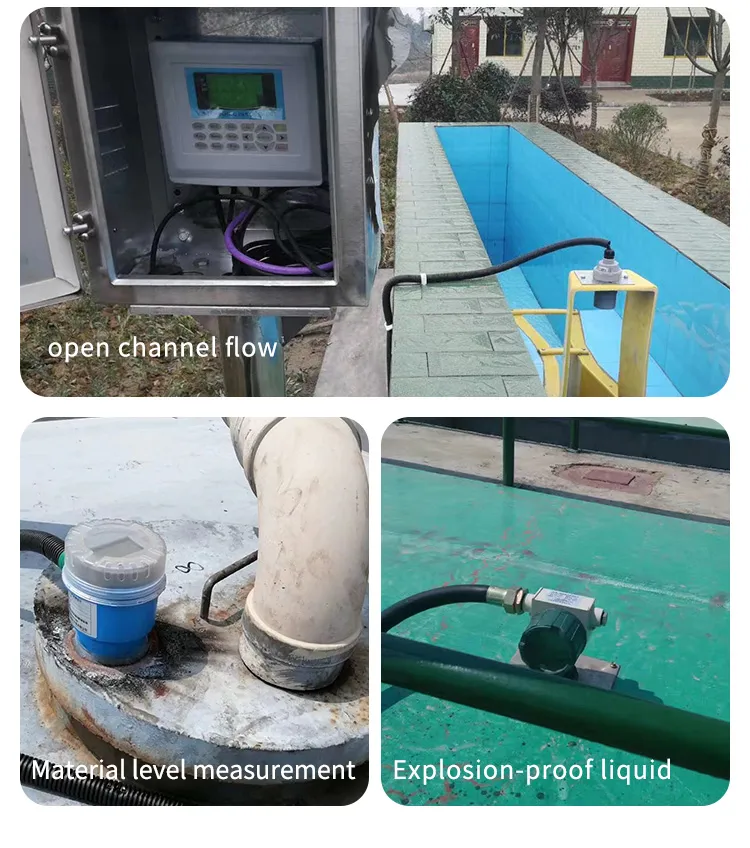

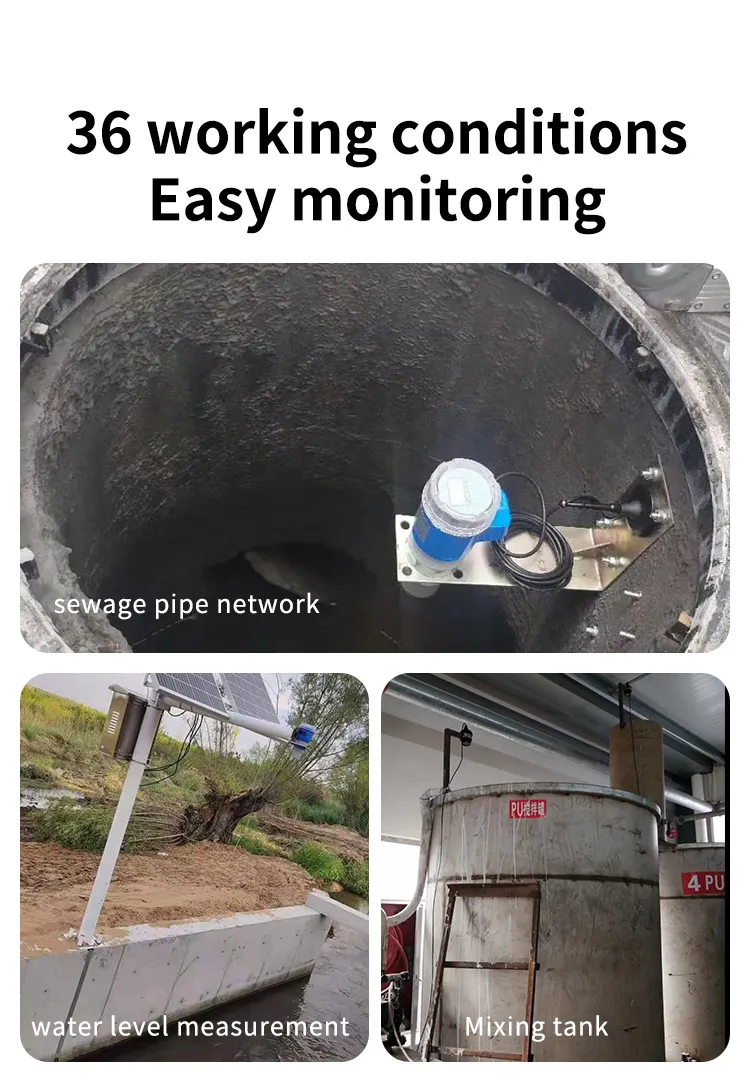

In open environments, bracket installation is recommended using the provided spiral ring. For tanks, a 60mm diameter hole can be used to secure the meter. Ensure the probe surface is level with the liquid surface.
Key Considerations:
- Installation height (TH) must be less than the device range.
- The highest liquid level must remain outside the blind zone (e.g., >0.5m).

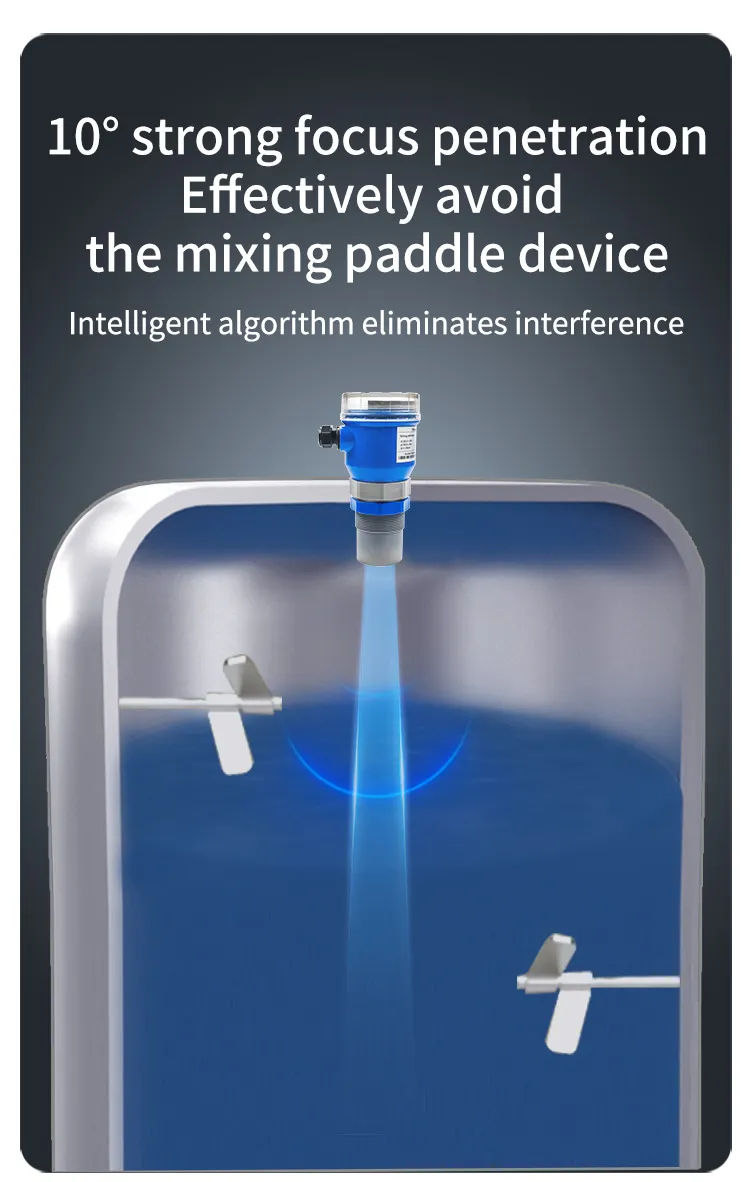

- Avoid protrusions or wall edges that might interfere with the directional wave angle.
