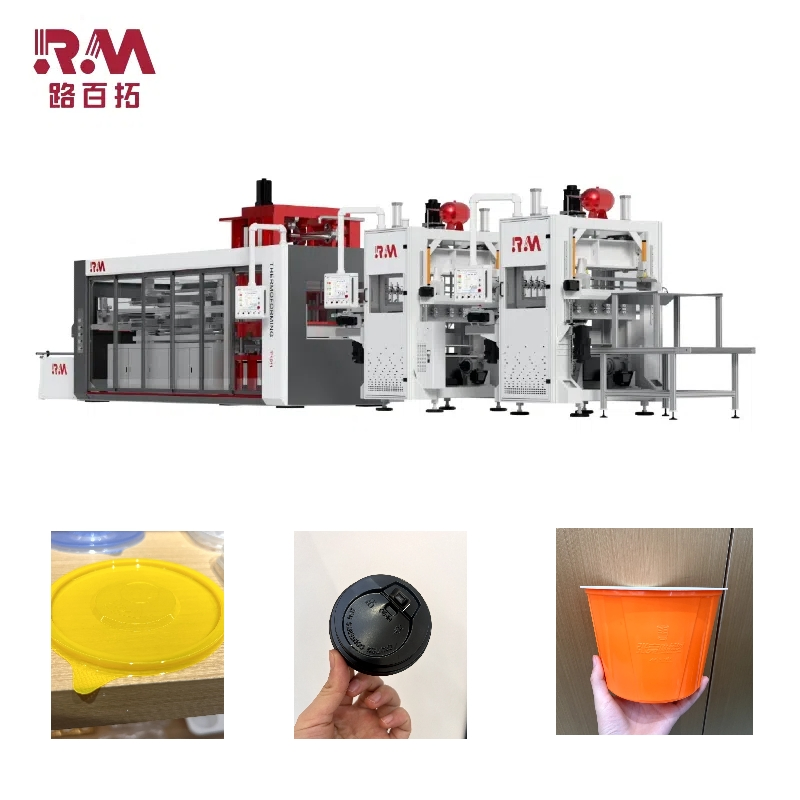

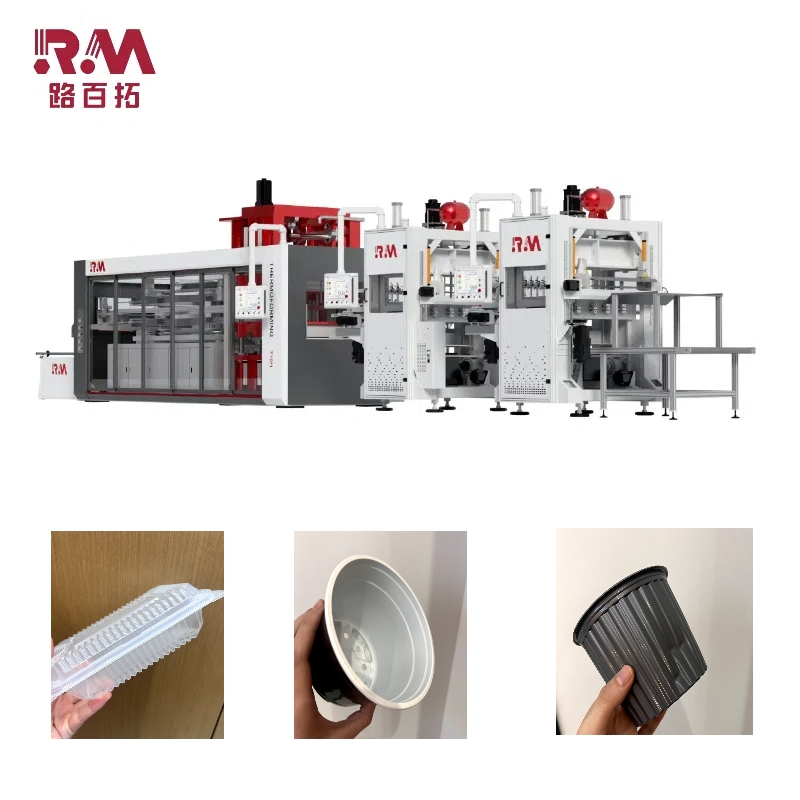

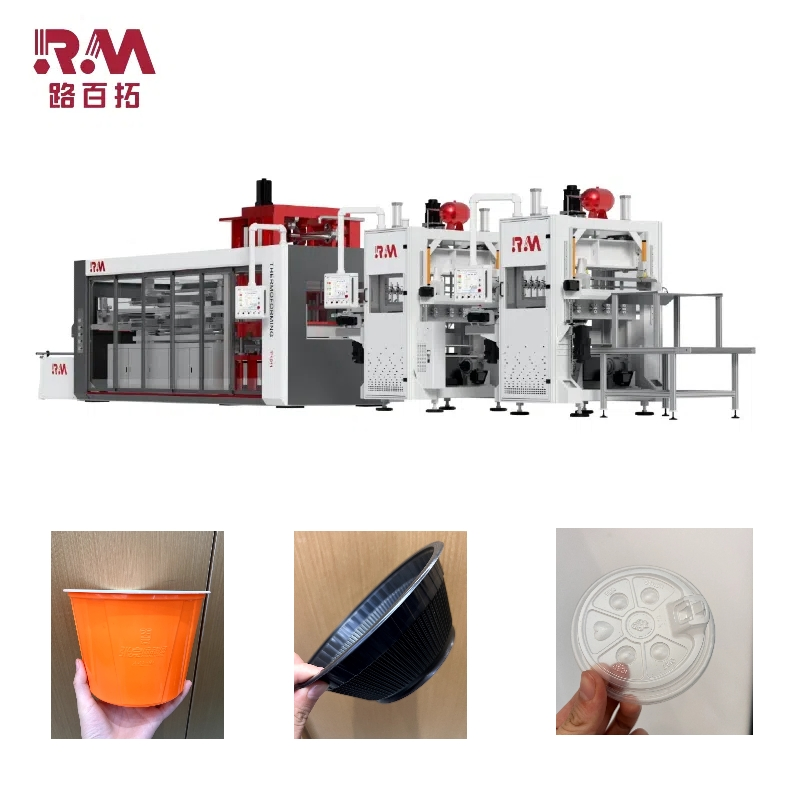

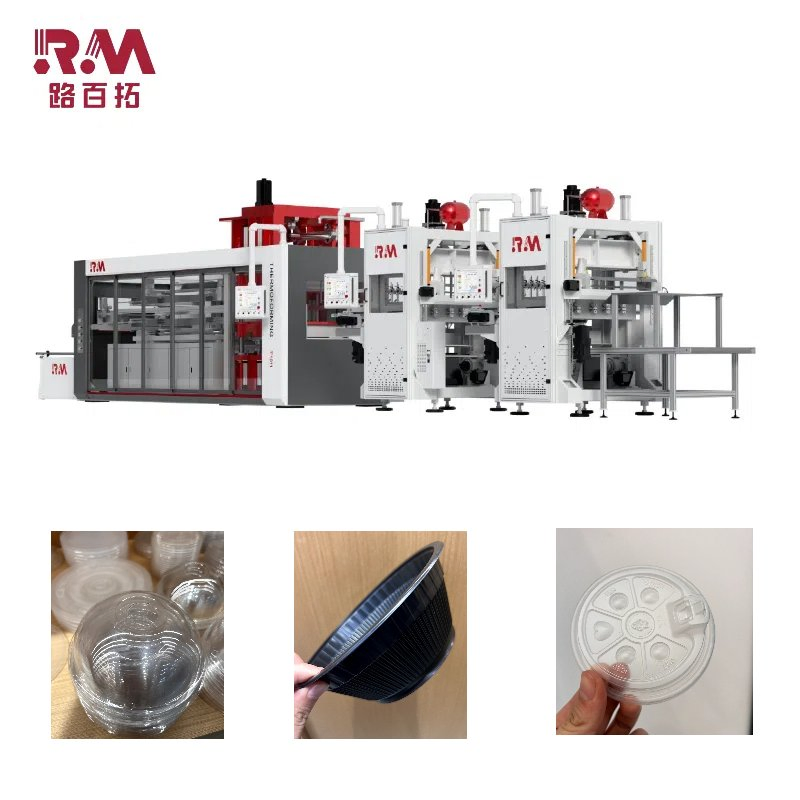

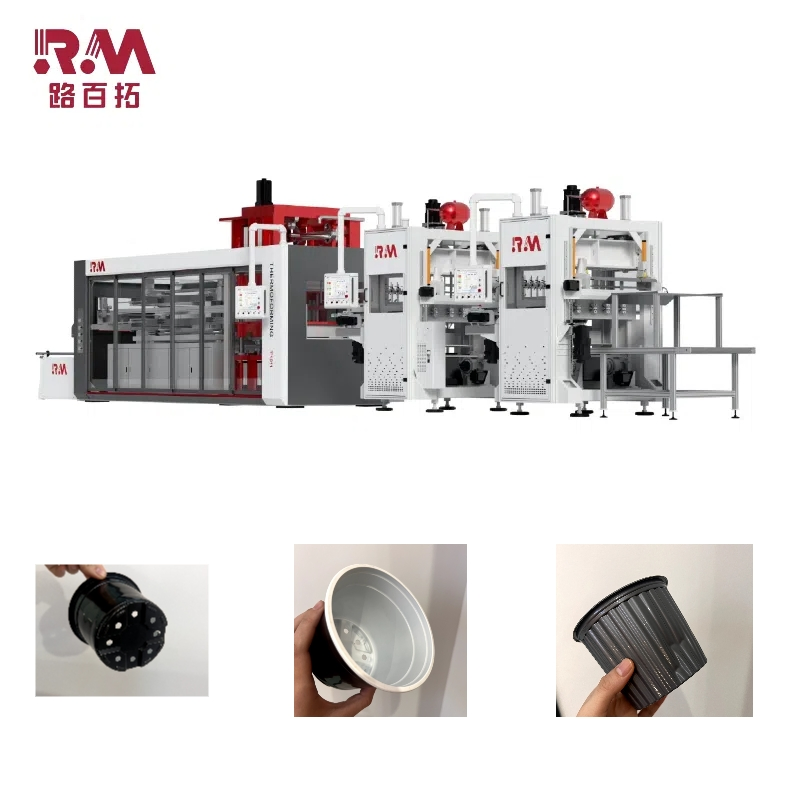

Compact Thermoforming Machine with Adjustable Settings for Plastics
Compact Thermoforming Machine with Adjustable Settings for Plastics
Compact Thermoforming Machine with Adjustable Settings for Plastics
Compact Thermoforming Machine with Adjustable Settings for Plastics
Compact Thermoforming Machine with Adjustable Settings for Plastics
1 / 5
Compact Thermoforming Machine with Adjustable Settings for Plastics
Compact Thermoforming Machine with Adjustable Settings for Plastics
Compact Thermoforming Machine with Adjustable Settings for Plastics
Compact Thermoforming Machine with Adjustable Settings for Plastics
Compact Thermoforming Machine with Adjustable Settings for Plastics

Compact Thermoforming Machine with Adjustable Settings for Plastics

Customization: Available
After-sales Service: Forever
Warranty: One Year
Send Inquiry

Product Description

■

Technical Specifications

Model NO.
RM-T1011
Certification
CE, ISO
Column number
Four Column
Molding Method
Pressing
Automatic Grade
Automatic
Max. Mould Size
1100mm×1170mm
Max. Forming Area
1000mm×1100mm
Min. Forming Area
560mm×600mm
Production Speed
≤25 times/Min
Max. Forming Height
150mm
Sheet Width
560mm-1200mm
Mould Stroke
≤220mm
PLC System
Keyence
Servo Motor
Yaskawa
Reducer
Gnord
Clamping Force
Forming-50T, Punching-7T, Cutting-7T
Thermoforming Machine Overview
Machine Detail View
■

Product Capabilities

Application: Trays, containers, boxes, lids, and other disposable plastic products.

Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump.

Suitable Material: PP, PS, PET, CPET, OPS, PLA.

Power Supply: 300KW (Heating) + 100KW (Operating) = 400KW total.

Specifications: AC380V 50Hz, 4P(100mm2) + 1PE(35mm2), Three-wire five-wire system.

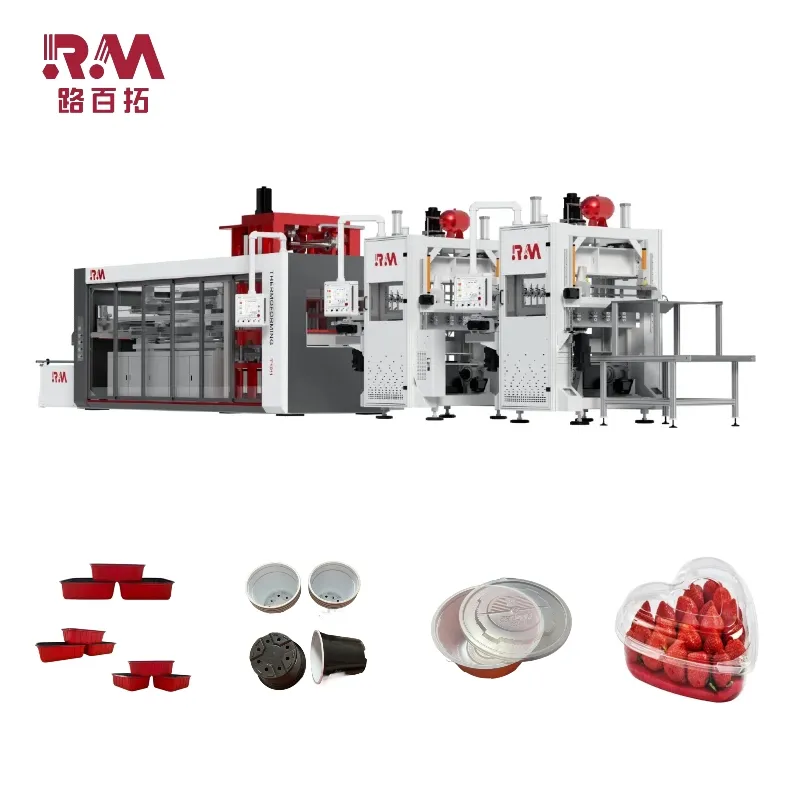

RM-T1011 Component
■

Performance Data

Forming Area Clamping Force Punching Force Blanking Force Forming Height Forming Pressure Operation Speed Punching Area Punching Speed Material
1000*1100mm 50T 7T 7T 150mm 6 Bar 35r/min 1000*320mm 100 spm PP, HI PS, PET, PS, PLA
■

Visual Showcase

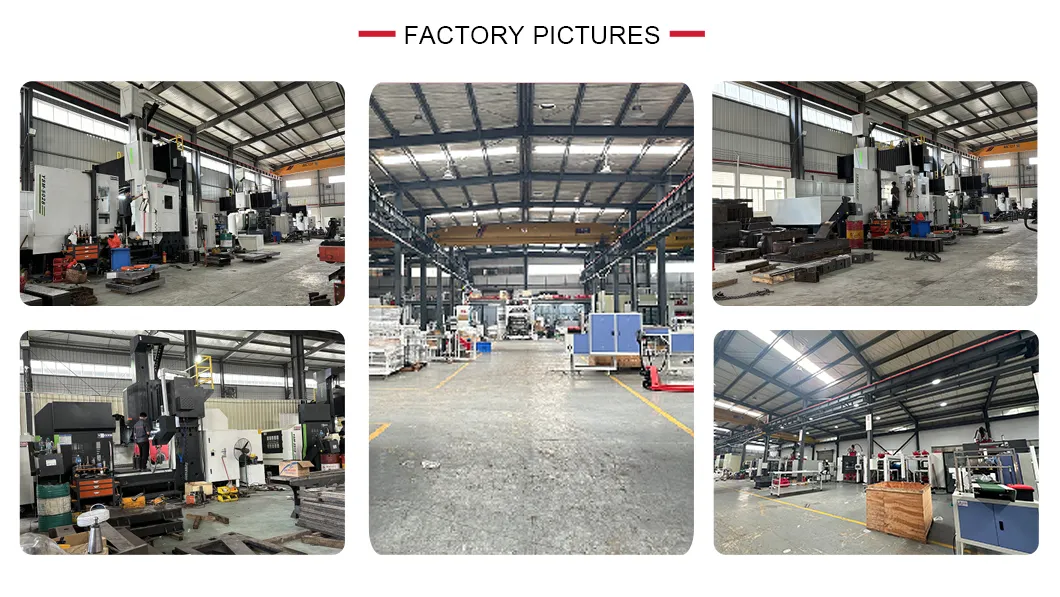

Machine Gallery 1
Machine Gallery 2
Machine Gallery 3
Machine Gallery 4
Machine Gallery 5
Machine Gallery 6
■

Frequently Asked Questions

Q: How does your factory manage quality control?
We maintain a specialized QC department dedicated strictly to overseeing and ensuring the quality of all products throughout the manufacturing process.
Q: What is the standard warranty period for the machinery?
All of our machines come with a comprehensive one-year warranty.
Q: Can we see the machine in operation before purchasing?
Yes, we operate our own plastic products division where you can observe all machine operations in a real production environment.
Q: Can the equipment be customized to meet specific production requirements?
Absolutely. We can adjust the relevant parameters and configuration of the equipment to align with your factory's specific production needs.
Q: What materials are compatible with this thermoforming machine?
The machine is designed to work efficiently with a variety of materials including PP, HI PS, PET, PS, and biodegradable PLA.
Q: What is the production capacity per year?
The annual production capacity is flexible and can be scaled according to your specific operational requirements and configuration.
