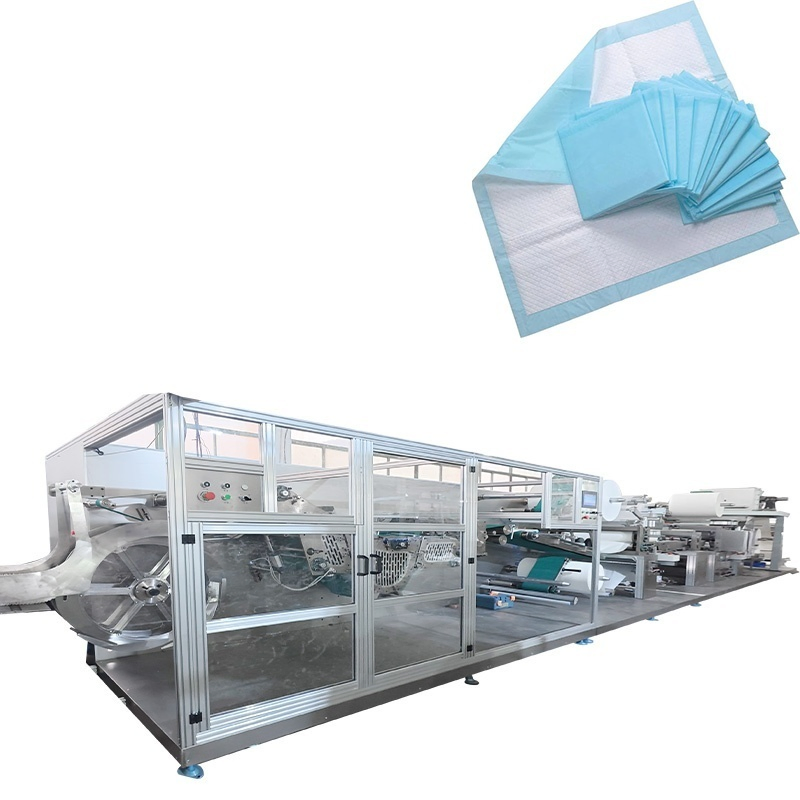

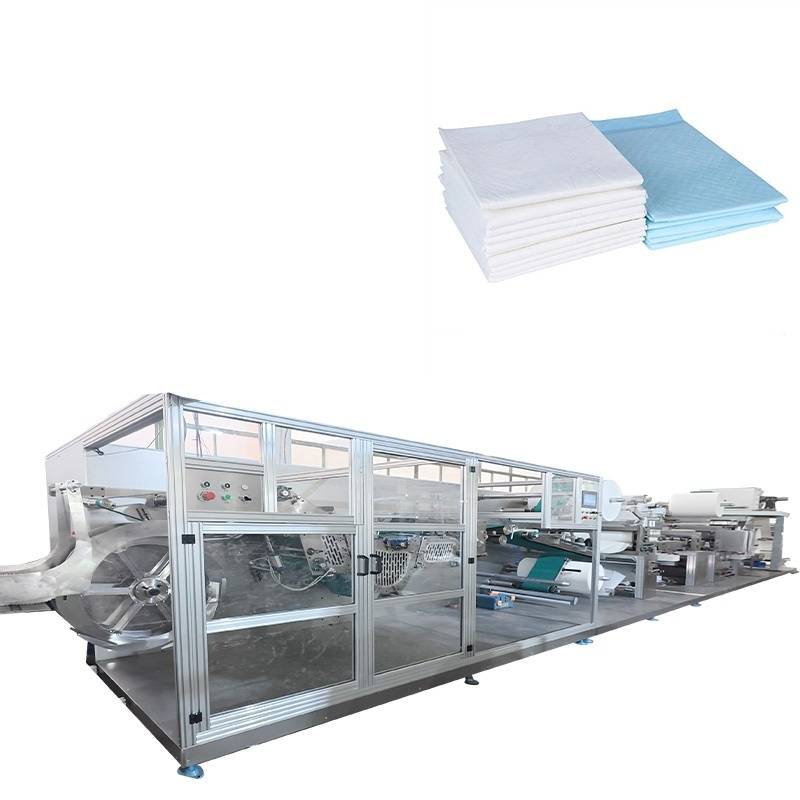

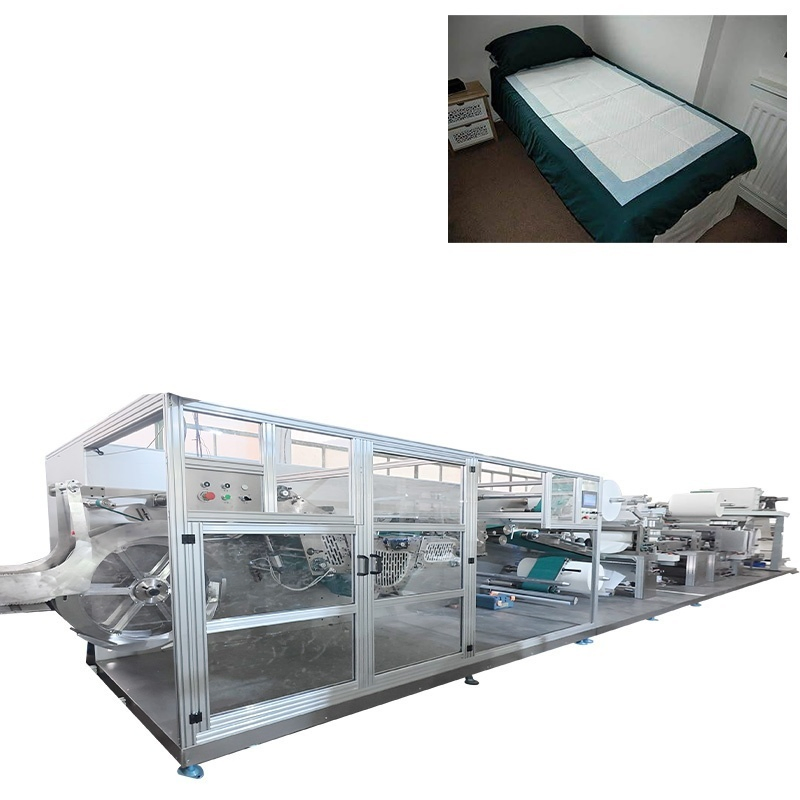

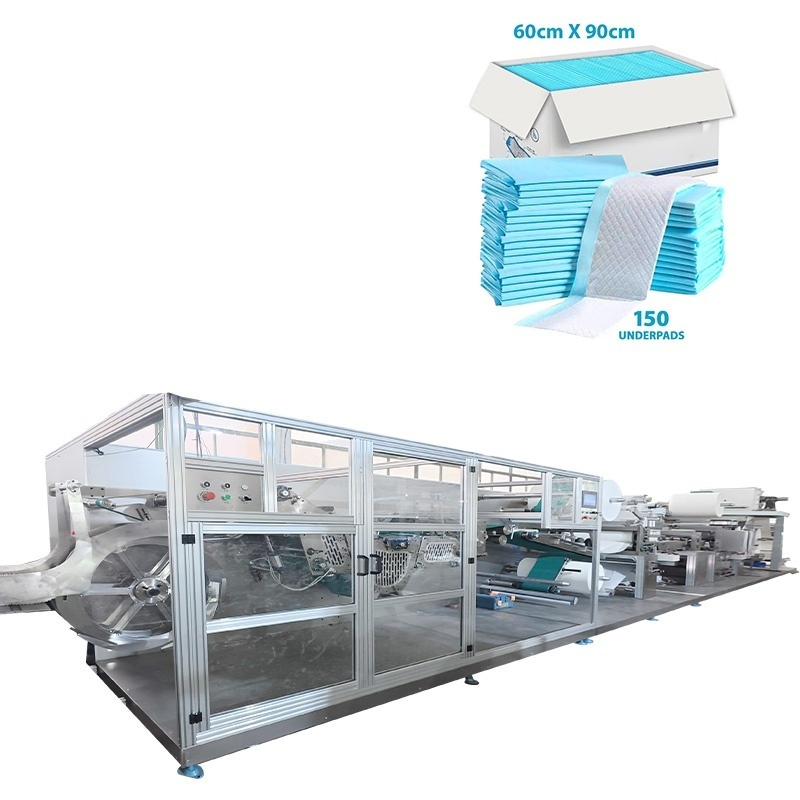

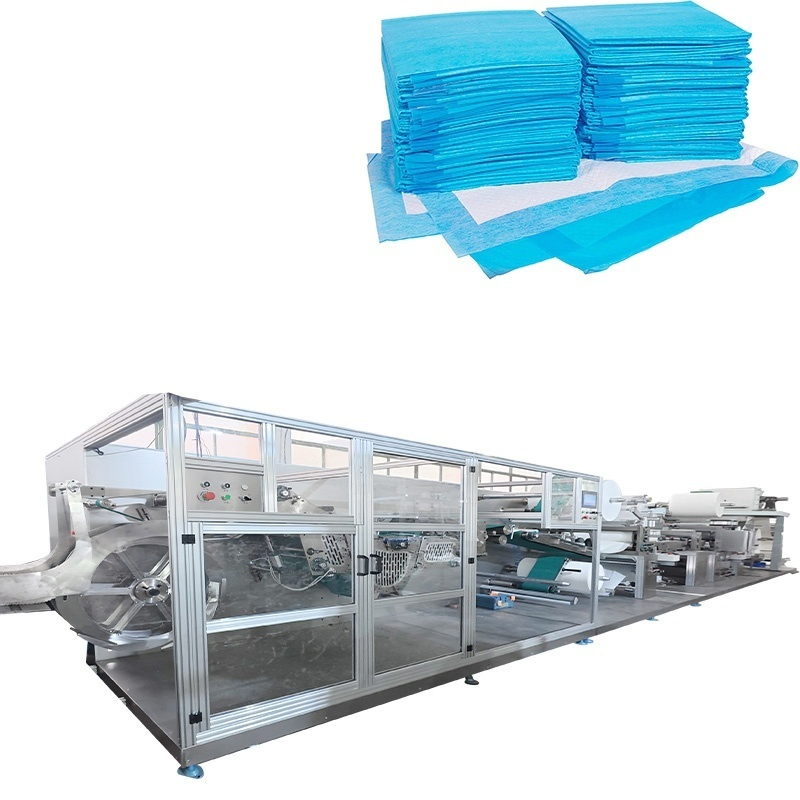

Customized All-in-One Pet Pad/Underpad Making Machine

1 / 5

Customized All-in-One Pet Pad/Underpad Making Machine

Customization:	Available
Warranty:	One Year
Type:	Box Type

Send Inquiry

Product Description

📋Basic Information

Real Running speed

＜350PCS/min

Automatic Grade

Automatic

Condition

New

After-sales Service

One Year

Usage Scenario

Hospitals, Family

Function

Absorbs Lochia, Prevents Leakage

Packaged

Single Piece Individual Packaging

Designed Speed

100-120meter/Min

Power Source

380V/50Hz

Transport Package

Wooden Case

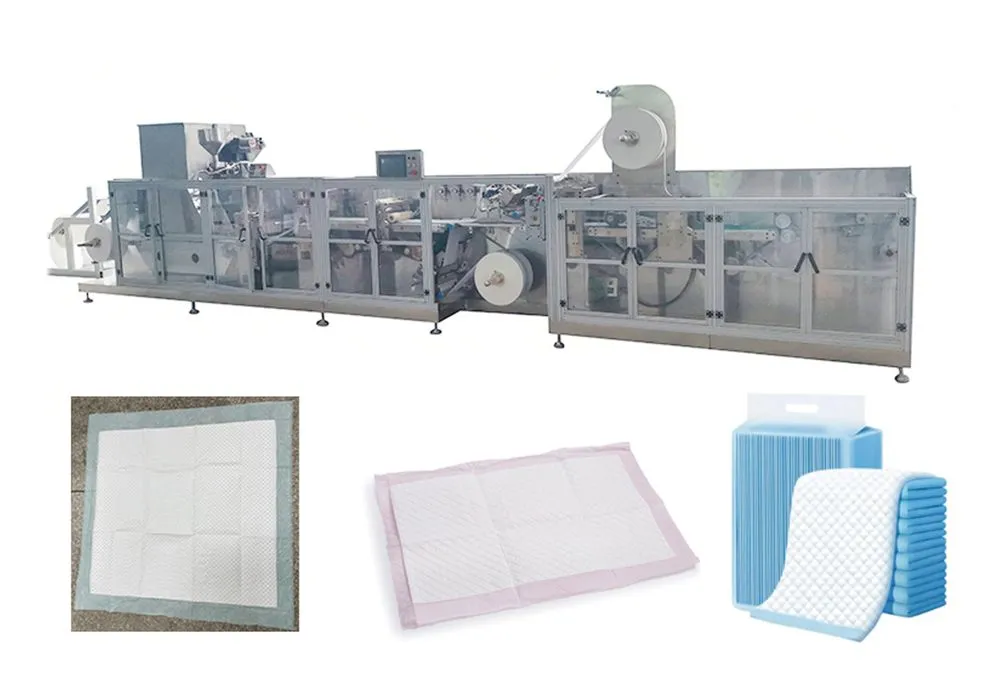

All-in-One Pet Pad & Fresh Meat Pad Making Machine

⚙️Product Parameters

Parameter Item	Specifications
Input power	380V 60HZ; 3 phase and 5 lines
Input air source	0.6MPa-0.8MPa
Folding method	Customized
Material diameter	Tissue ≤800MM, Fabric ≤800MM, Bottom film ≤600MM
Machine size (LWH)	22 × 2 × 3 M
Used material	Non woven fabric, top tissue, cotton + SAP, bottom tissue, bottom film
Speed	120m/min

🔍Product Features & Details

Crushing molding part: High-precision saw blade crusher for untreated and fully treated pulp. Pneumatic lifting wood pulp feed with frequency conversion control matched to main engine speed. Quantitative servo-controlled polymer application with adjustable transverse dimensions.
Raw material unwinding: Configuration for upper/lower toilet paper, non-woven fabric, and bottom film with two material rolls each. Active servo control unwinding with automatic tension adjustment.
Main equipment frame: Welded with 100 standard square tubes and steel wall panels (15mm+ thickness). Hybrid drive system using high-precision servo motors and variable frequency motors.
Component Modules: Includes cotton core flattening and pressing mesh boxes, cutting box with 3KW servo drive, three-roll traction box for accurate tension, and finished product cutting box.
Waste & Folding: Features a waste removal device with manual/programmed signals, transverse folding unit, and hot wheel arrangement mechanism for neat product counts.
Electrical & Air Systems: Large man-machine interface with real-time adjustable parameters. Heating part utilizes mercury conductive rings and high-precision temperature controllers.

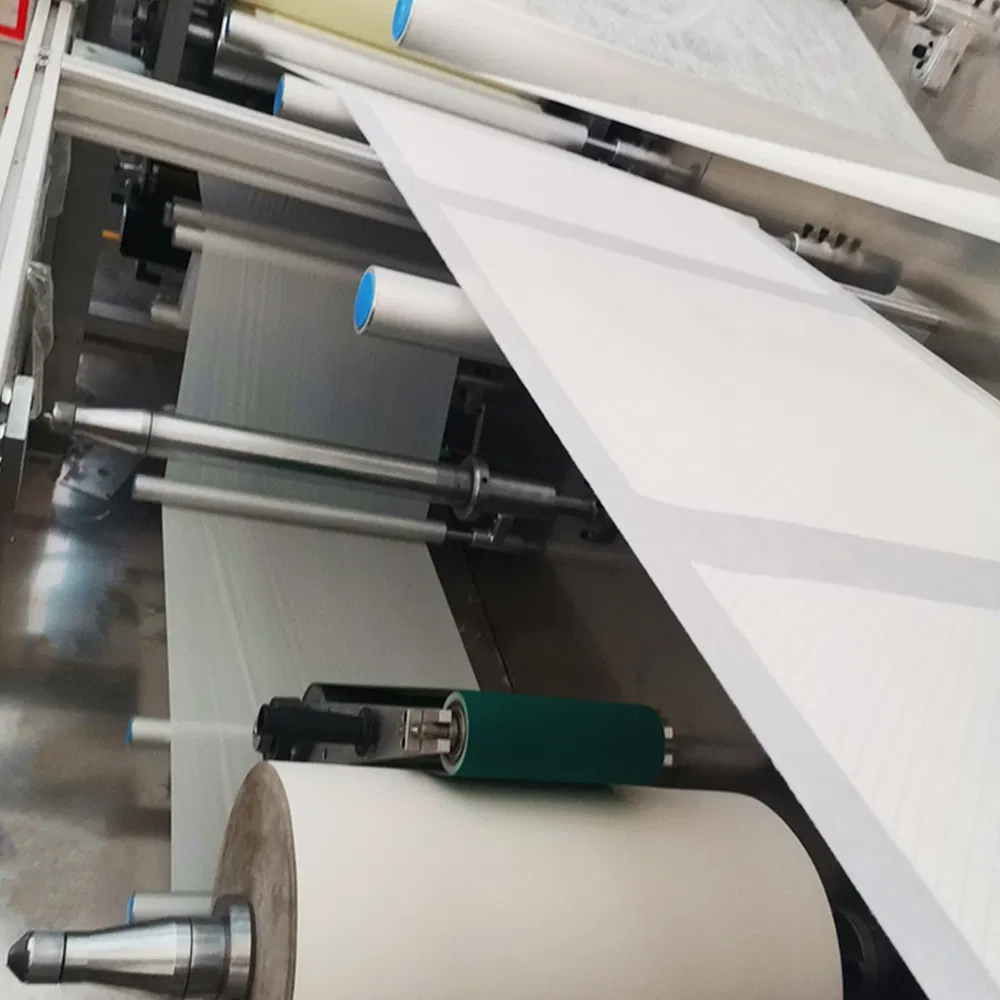

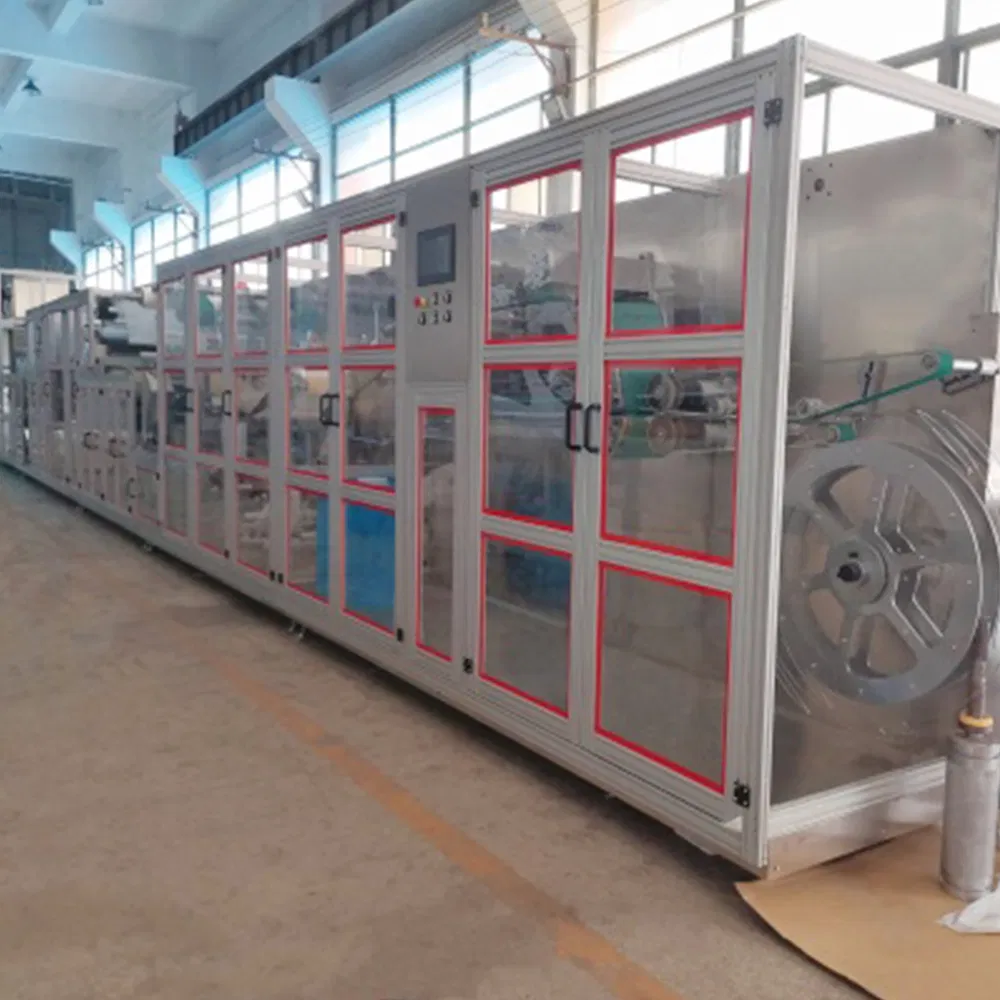

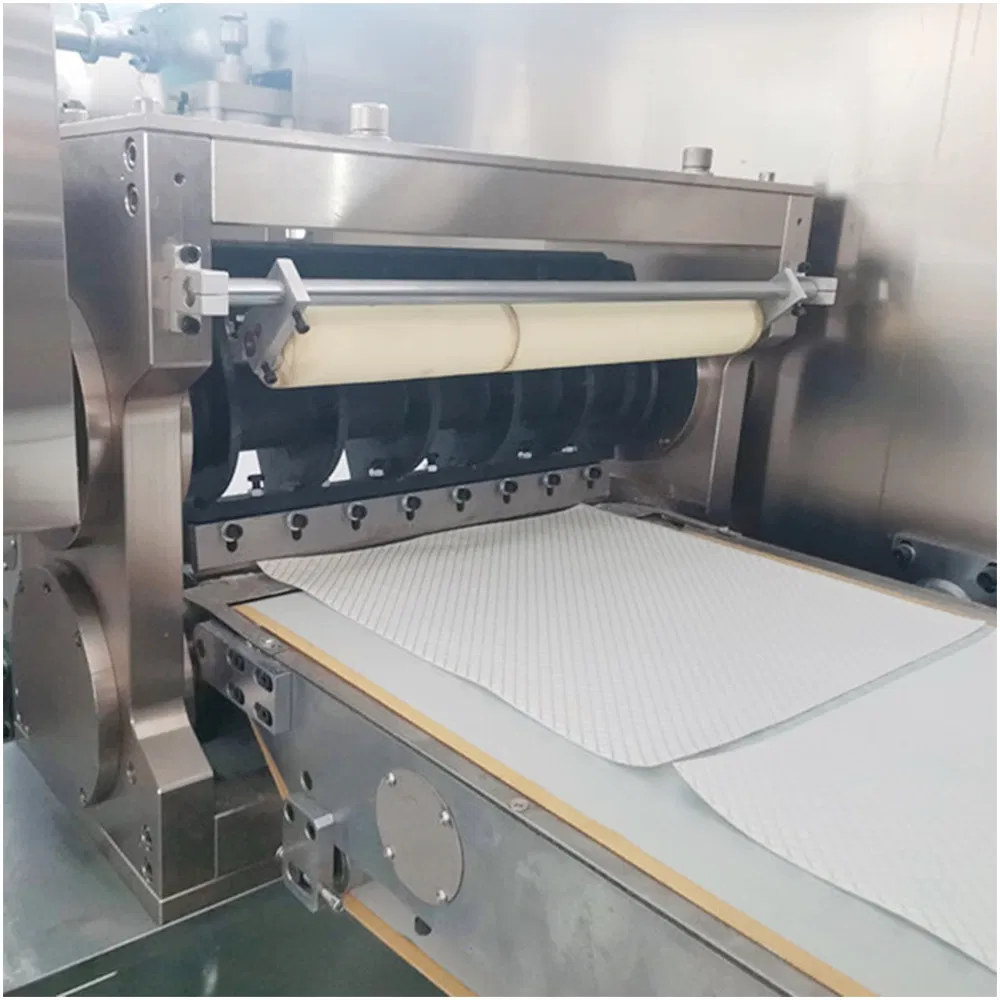

📸Detailed Photos

🌟Our Advantages

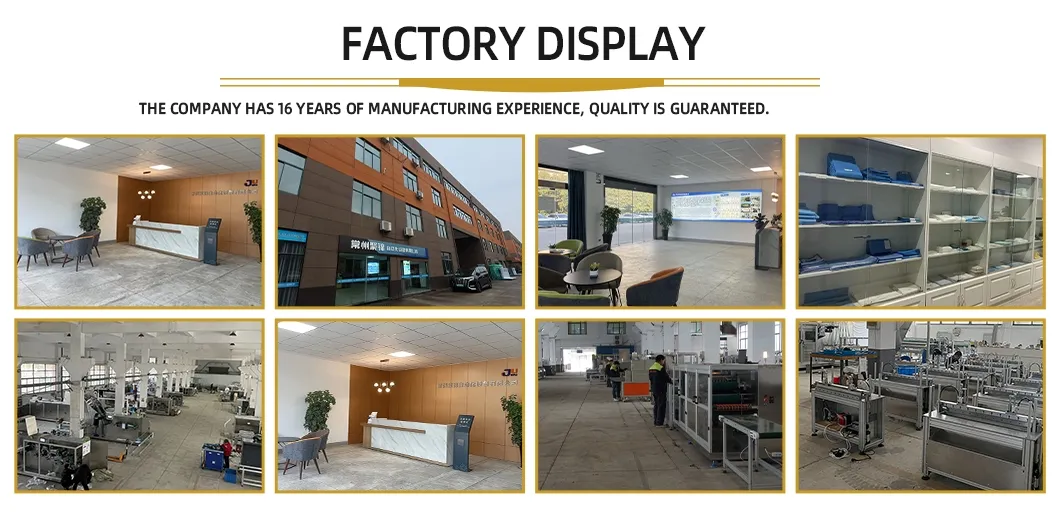

🏢Production Capabilities

Specializing in the manufacturing of automated equipment with over 16 years of industry experience. Our production line focuses on three major sectors:

1. Disposable medical products such as medical bed cover machines and surgical hole drapes.
2. Hotel products including disposable toilet seat covers, sanitary napkins, and towels.
3. Hygienic consumables including baby bibs, aprons, and pet pads.

With a dedicated design team, we provide customized machinery solutions sold to more than 25 countries worldwide, offering one-stop services from design to transportation.

🌍Exhibition & Certifications

Frequently Asked Questions

How stable is your automation equipment?

Our equipment undergoes strict quality inspections and long-term actual operation tests. Key components are selected from high-quality brands with redundant designs to ensure stability during continuous operation.

What is the after-sales response time for technical issues?

We provide a preliminary solution within 2 hours of feedback. If on-site service is required for overseas customers, we arrange professional technicians as soon as possible according to the situation.

Is the equipment operation complex?

No, it is designed with a user-friendly human-oriented interface. We provide detailed operation manuals and free professional training (on-site or online video) to ensure your operators are proficient.

Can the equipment be customized according to special requirements?

Certainly. Our R&D team has extensive experience in non-standard customization for specific functions, dimensions, and production efficiency requirements.

What is the typical production efficiency?

Efficiency varies by equipment type and product specifications. Our technical team provides a detailed production efficiency evaluation report based on your specific needs.

Are you a direct manufacturer?

Yes, we are a factory specializing in automated machinery, and we welcome customers to visit our production facilities.
