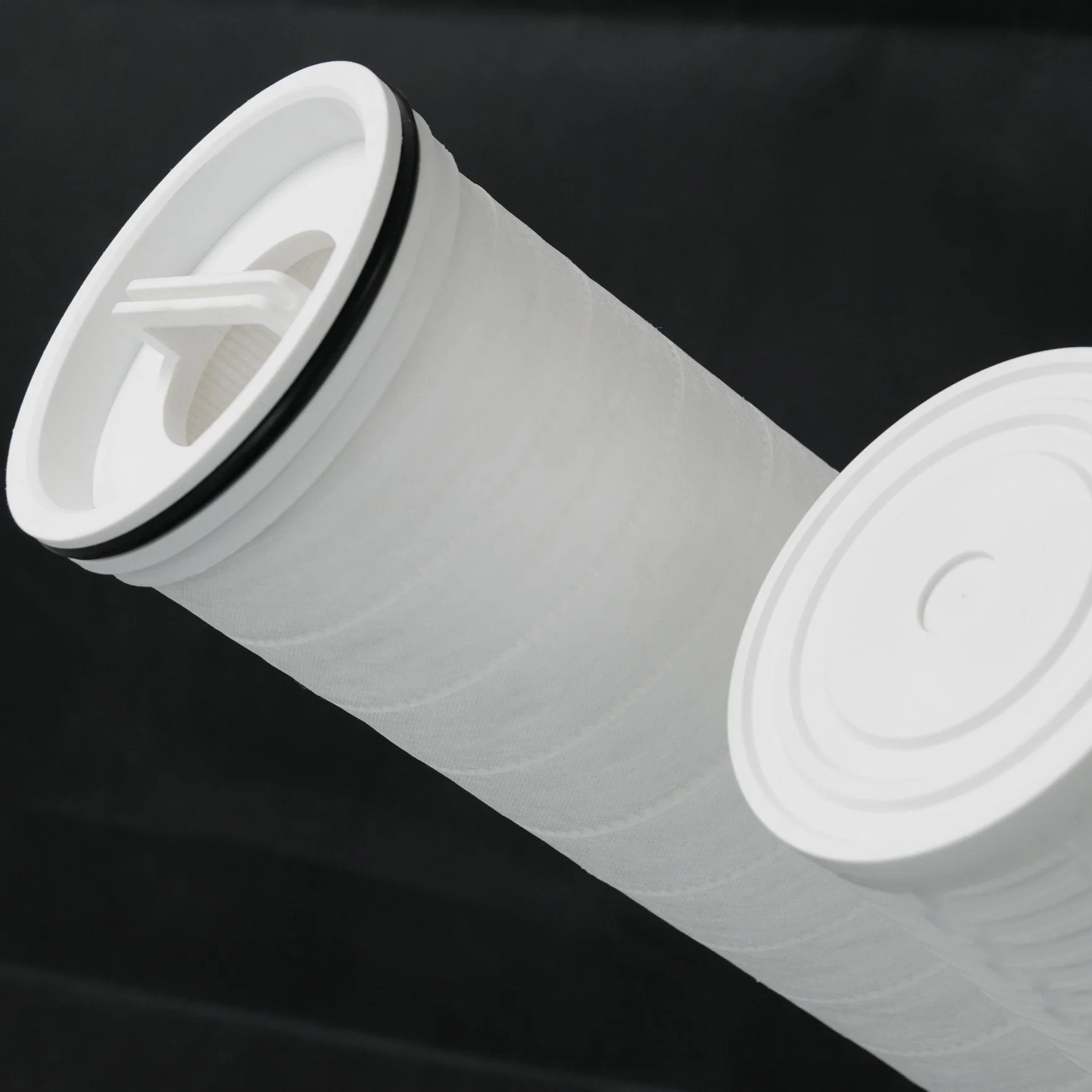

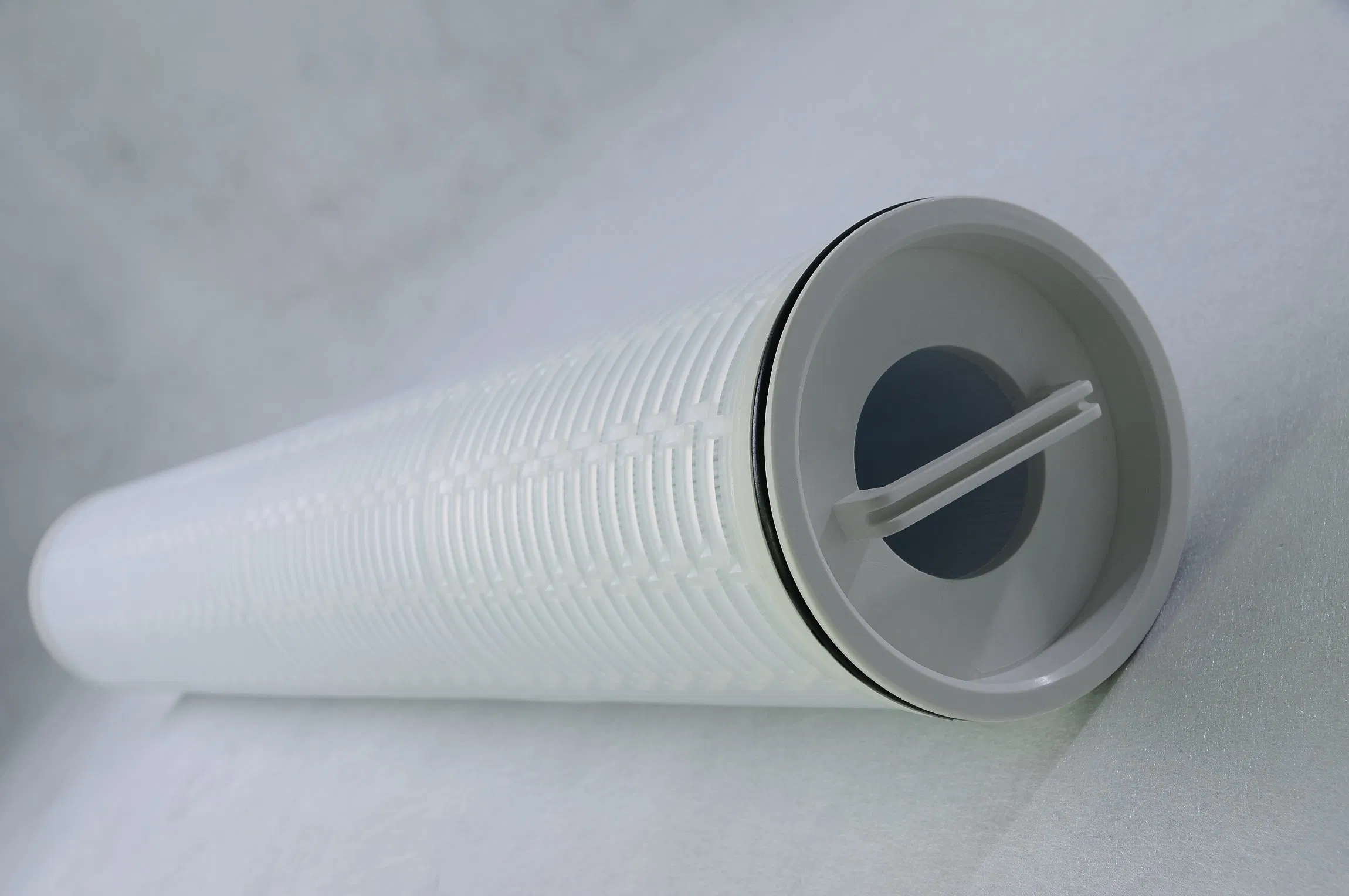

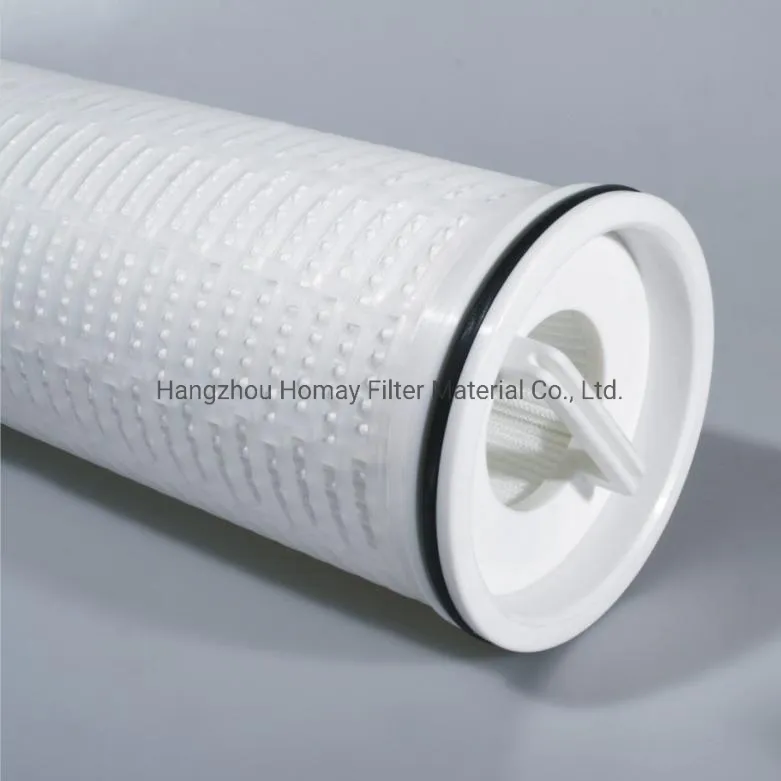

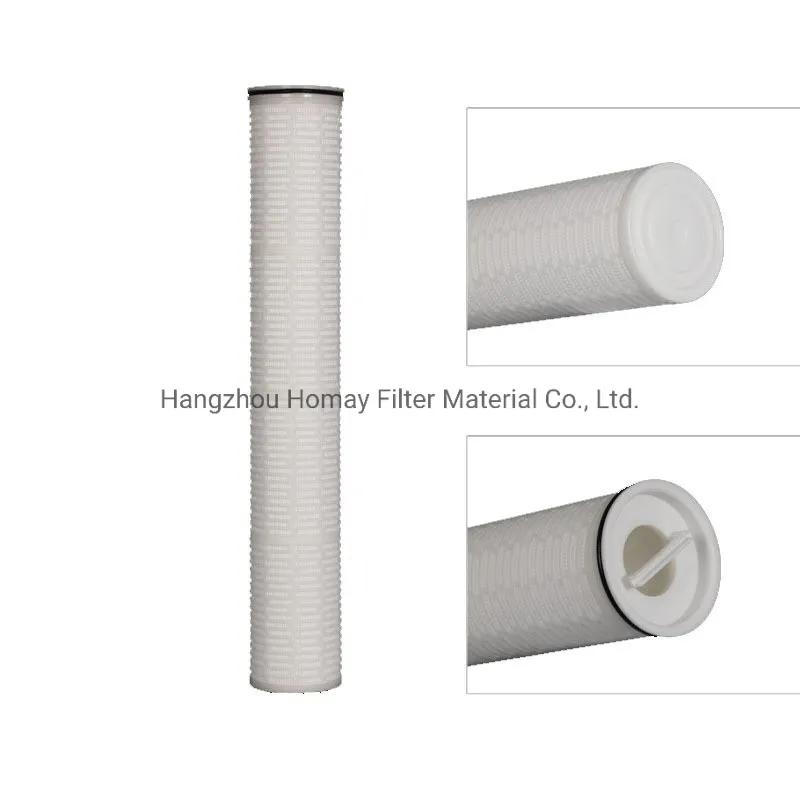

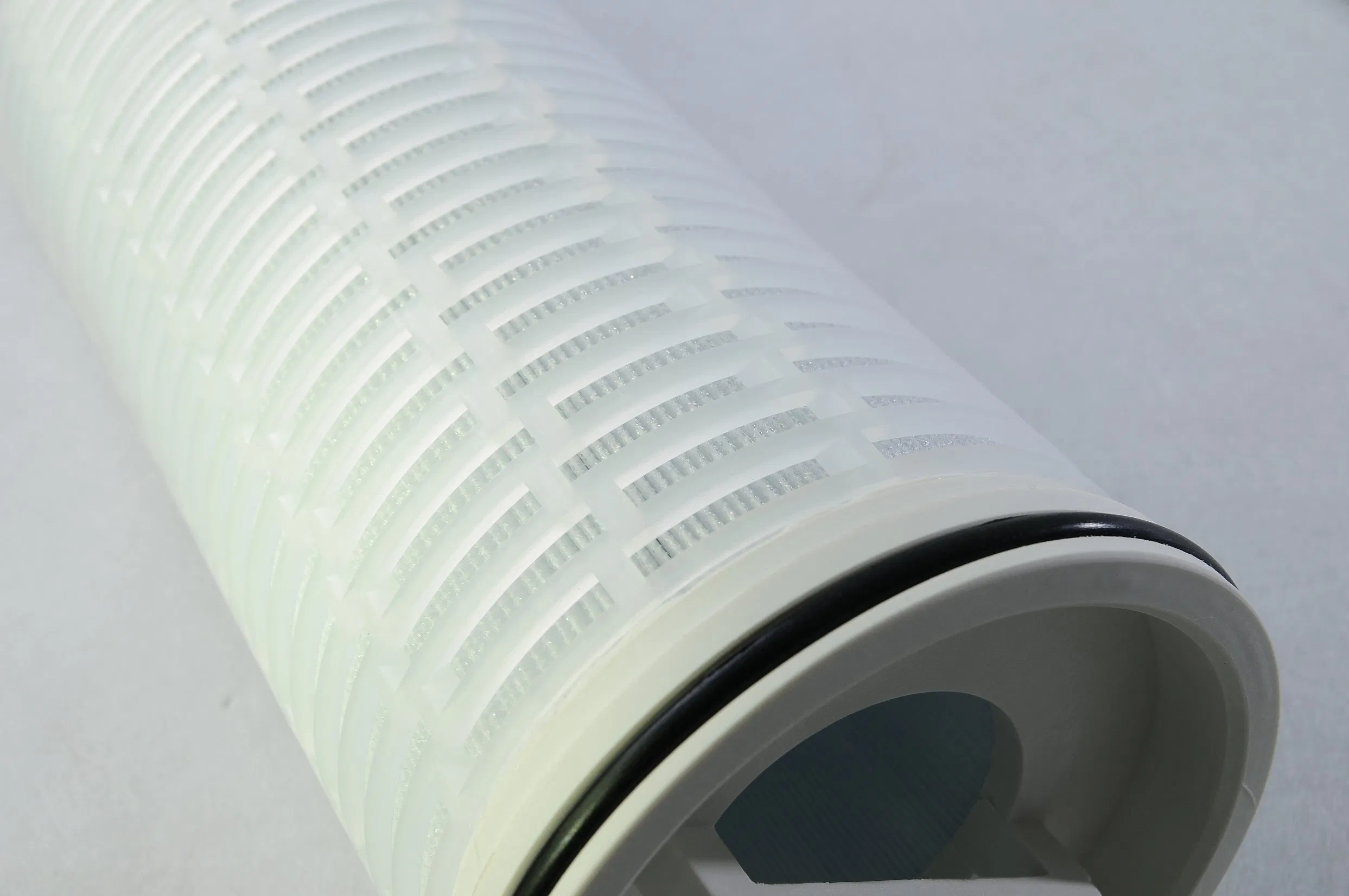

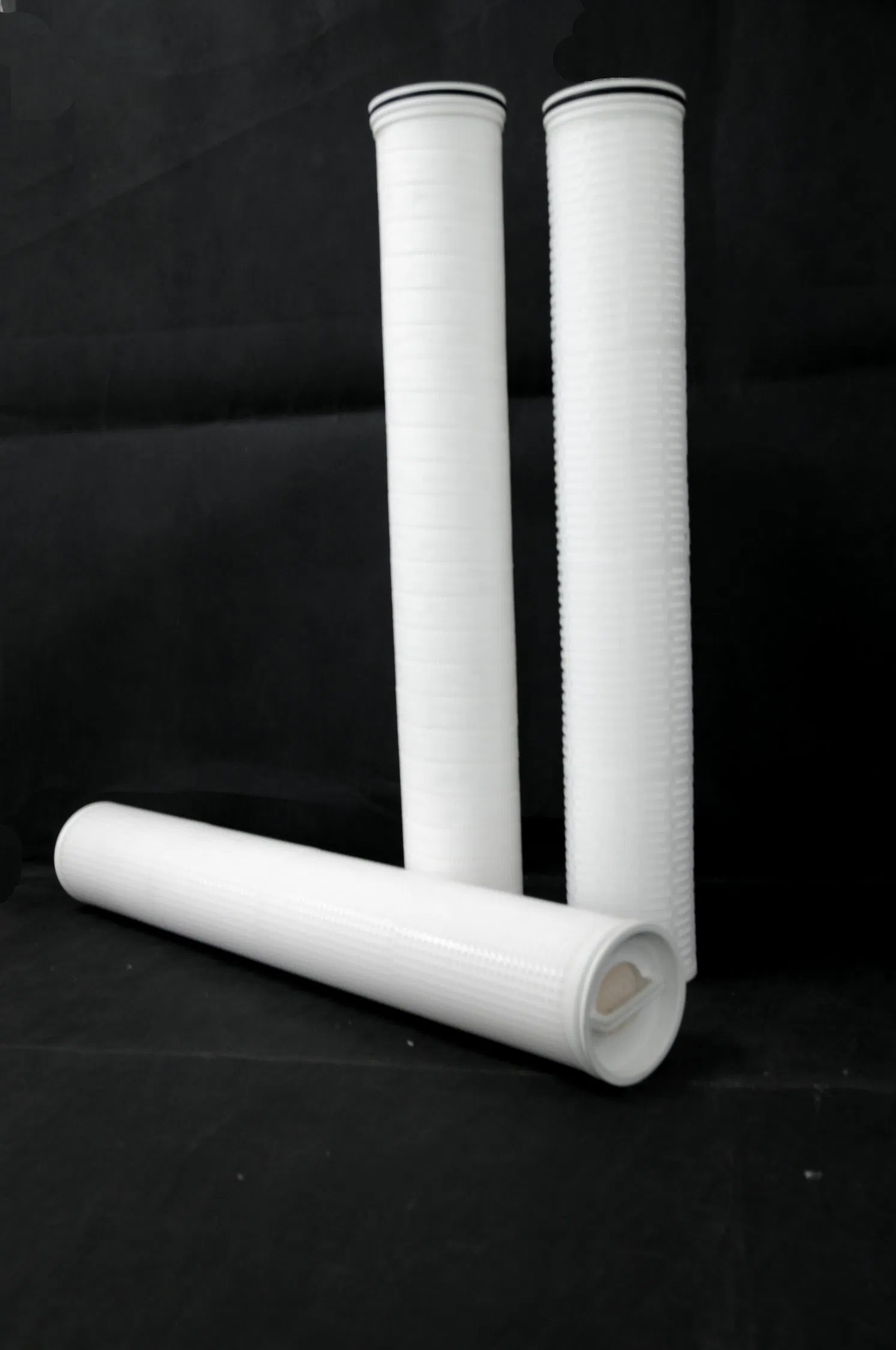

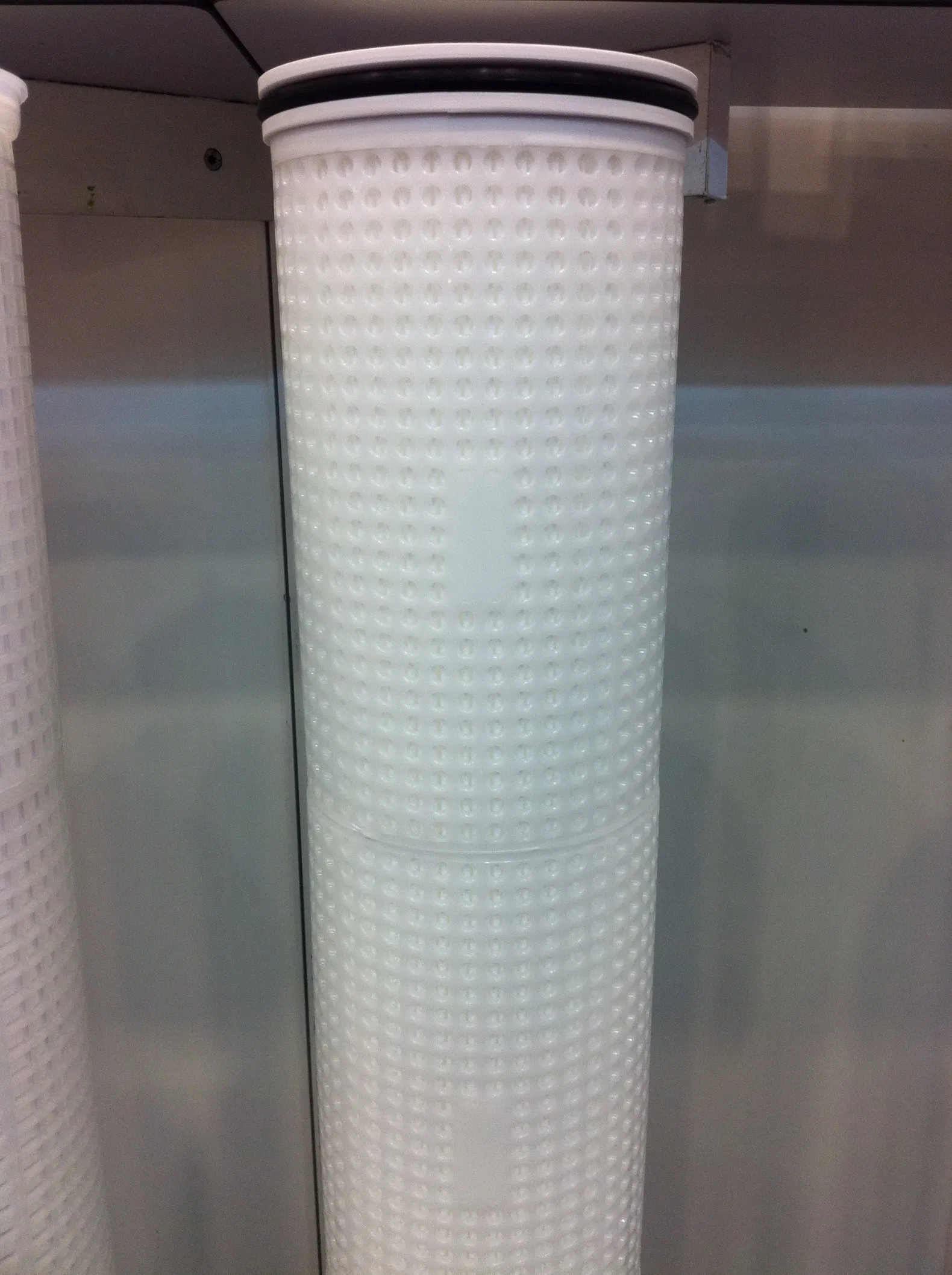

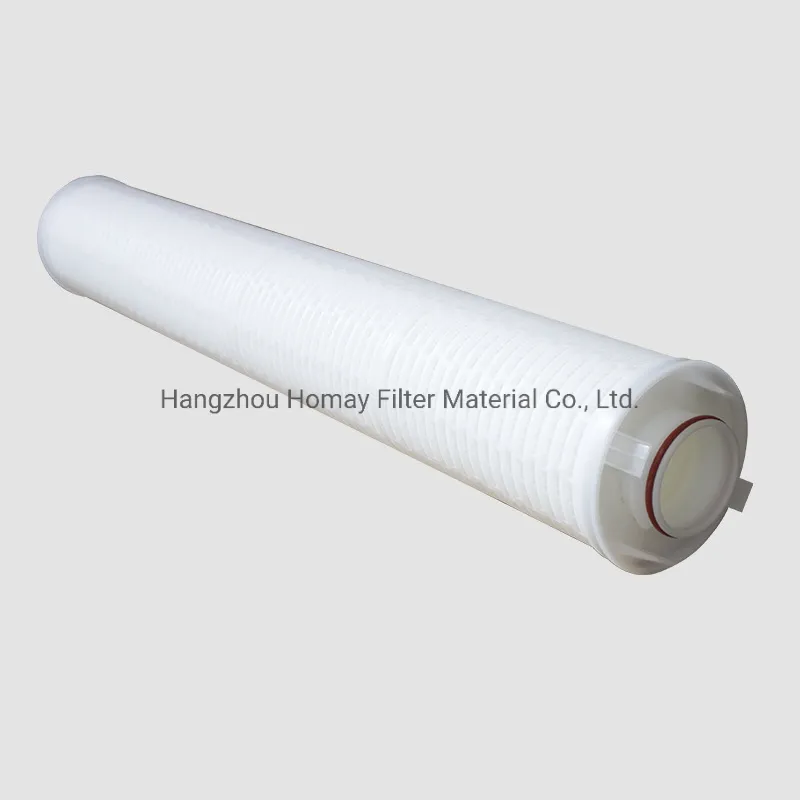

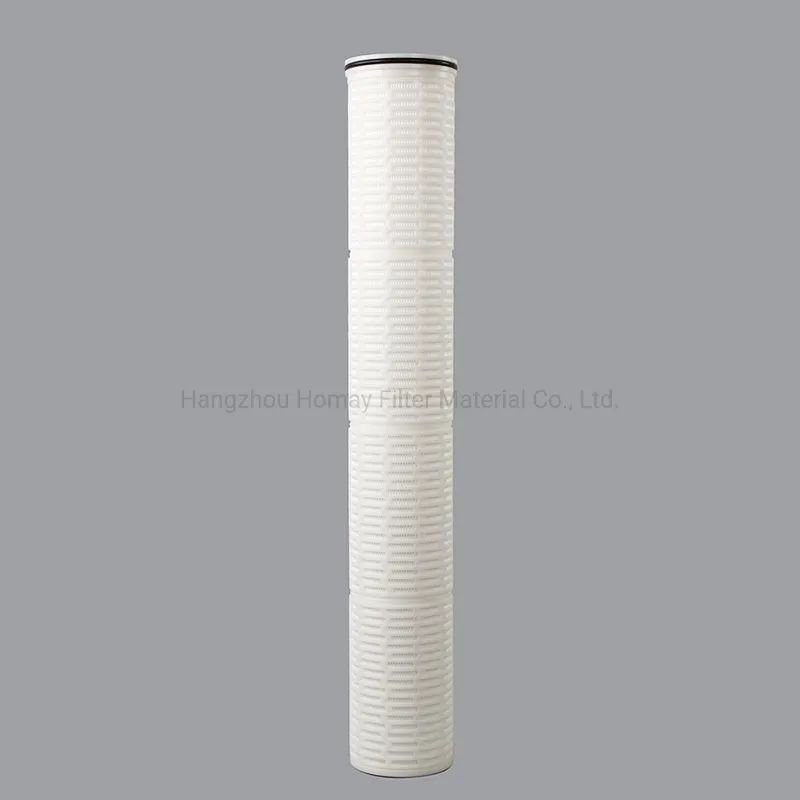

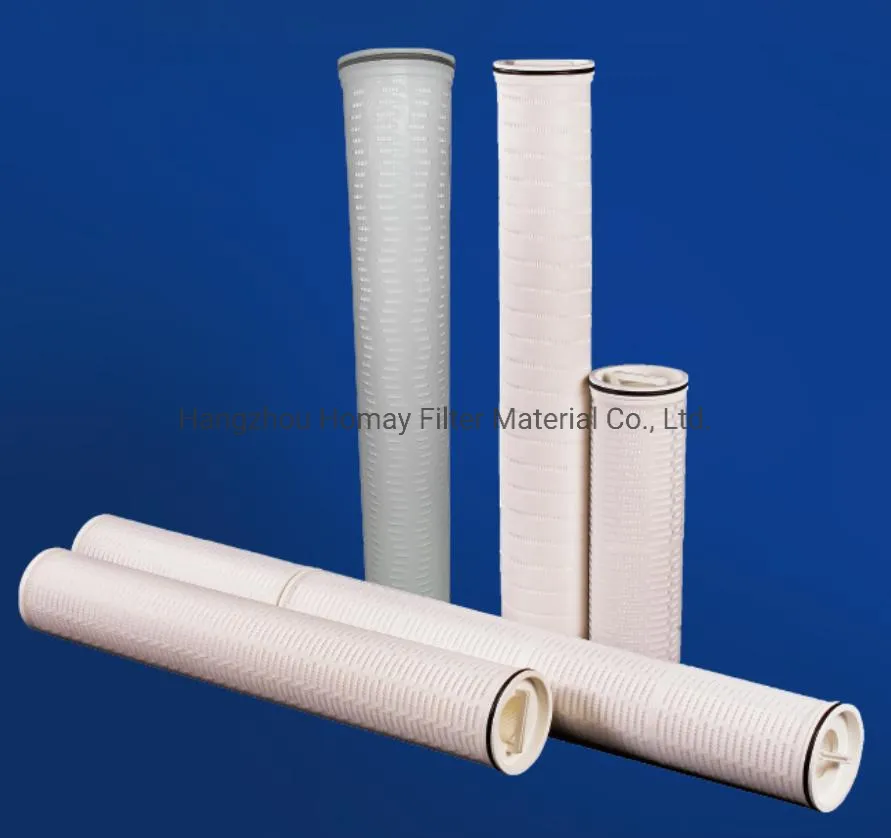

This universal high flow filter cartridge features a large diameter and expansive filtration area, significantly reducing the number of cartridges and the housing size required. Its long service life and high flow rate result in low investment and reduced manpower across various industrial applications.
| Model NO. | HMPHF | Filter Connector | PP |
|---|---|---|---|
| Filtration Grade | Medium Filter | Filter Type | Compact Activated Carbon |
| Gasket/O-Ring | EPDM, Silicone, PTFE Coated | Specification | 20, 40, 60 Inches |
| HS Code | 84219990 | Capacity | 5000 PCS/Day |
| Parameter | Details |
|---|---|
| Media Material | PP / GF / PTFE / MB |
| Shell Material | PFA |
| Max. Operating Temperature | 80ºC |
| Max. Operating DP | 4bar @ 21ºC / 2.4bar @ 80ºC |
| Media | Removal Rating (μm) | Length | Outside Type | Seal Material |
|---|---|---|---|---|
| GF: Glass Fiber PN: PP Nominal PA: PP Absolute MB: PP Melt Blown |
0.5, 1, 3, 5, 10, 25, 50, 70, 100 | 20", 40", 60" | B: Belt C: Cage 6: SS316L 4: SS304 |
S: Silicone B: Buna E: EPDM V: Viton F: E-FKM |
A: The maximum operating temperature for the PP high flow filter cartridge is 80ºC.
A: We offer standard lengths of 20 inches, 40 inches, and 60 inches to fit different housing requirements.
A: Yes, you can select from Silicone, Buna, EPDM, Viton, or E-FKM depending on your specific application needs.
A: High flow cartridges have a much larger filtration area (up to 8m²), which allows for higher flow rates, fewer cartridge changes, and smaller filter housing footprints.
A: Yes, we provide both nominal and absolute micron ratings ranging from 0.5μm up to 100μm.
A: They are widely used in sea water desalination, power plant water treatment, food and beverage processing, and microelectronics manufacturing.
