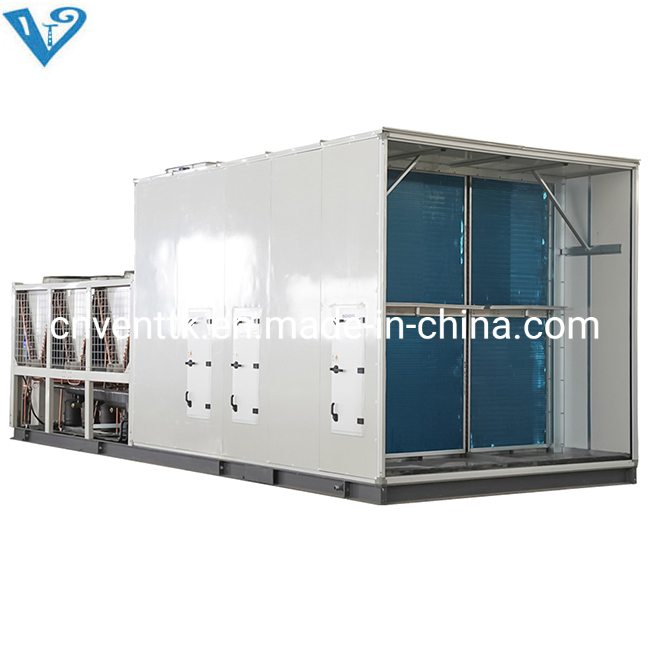

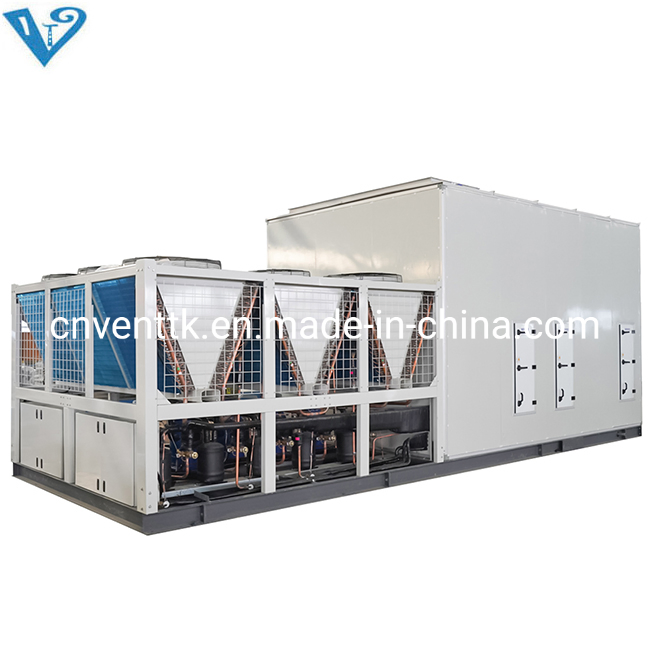

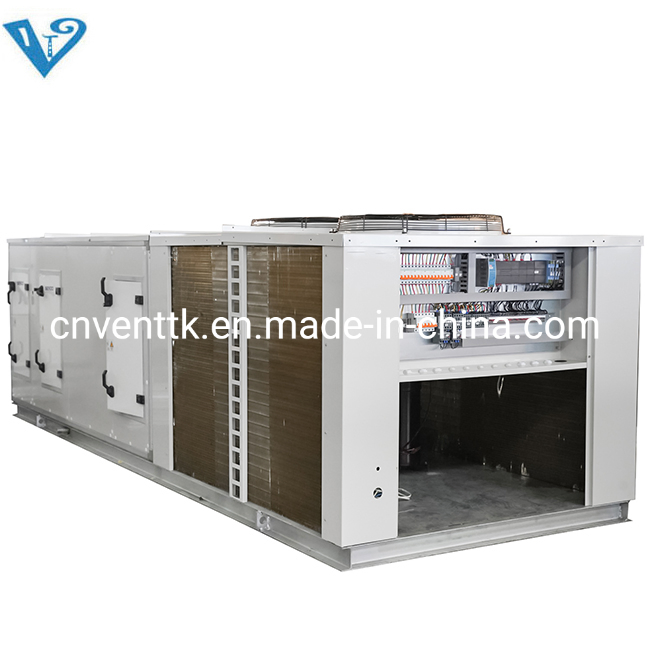

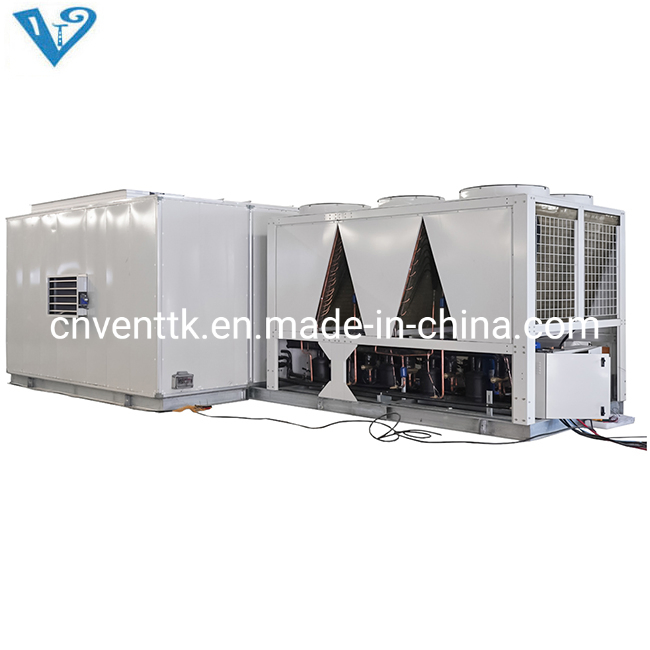

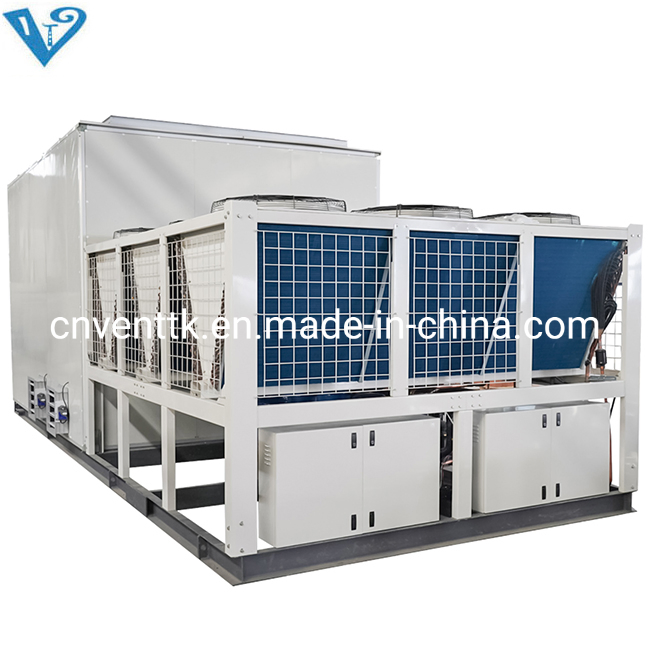

All in One Type Integrated Combined Rooftop Air Conditioner
All in One Type Integrated Combined Rooftop Air Conditioner
All in One Type Integrated Combined Rooftop Air Conditioner
All in One Type Integrated Combined Rooftop Air Conditioner
All in One Type Integrated Combined Rooftop Air Conditioner
1 / 5
All in One Type Integrated Combined Rooftop Air Conditioner
All in One Type Integrated Combined Rooftop Air Conditioner
All in One Type Integrated Combined Rooftop Air Conditioner
All in One Type Integrated Combined Rooftop Air Conditioner
All in One Type Integrated Combined Rooftop Air Conditioner

All in One Type Integrated Combined Rooftop Air Conditioner

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

ℹBasic Specifications
Model NO.
D5-002-3X350
Corrosion Durability
Higher
Operating Voltage
380/400 VAC
Noise Level
Low
Application Fields
Medicine
Mounting
Floor Standing
Lifetime
15~20 years
Certification
RoHS, ISO, CE
Condition
New
Cooling Capacity
10~350kw
Compressor
Scroll Type
Case Material
Galvanized Steel
Compressor Brand
Copeland, Panasonic
Condenser
Copper Tube Aluminum Fin
Air Filter
Aluminum Filter G3
Refrigerant
R22, R407c, R410A, R134A
Origin
China
Production Capacity
20000PCS/Month
❄Rooftop Air Conditioner Overview
Integrated Combined Rooftop Air Conditioner

Capacity: 12~35kw, 3.5~10 Tons, 40000~120000 BTUs.

Efficiency: 2.7~3.3 cop.

Warranty: Compressor - 3 years limited; other parts - 1 year limited.

⚙Key Features
  • Structure: Panels and frame made from galvanized steel protected with polyester powder painting for atmospheric resistance.
  • Hermetic Compressor: High efficiency scroll compressor with built-in thermal overload cut-out and crankcase heater.
  • Centrifugal Fan: Forward curve centrifugal fans for air treatment; high external pressure and long air supply distance.
  • Electric Panel: Includes breakers, contactors, and phase sequence relays for maximum protection.
  • Controller: Easy operation with cooling/heating/auto modes, error indication, and timing functions.
📊Technical Specifications (Rooftop Series)
Model (ZA Series) WRF12ZA WRF15ZA WRF18ZA WRF24ZA WRF30ZA WRF35ZA
Cooling capacity kW 12 15.2 17.5 24 30.3 25.6
Heating capacity kW 13.2 16.6 18.4 26.5 33.3 27.7
Power Supply 380V / 3Ph / 50Hz
Refrigerant R410A
Noise dB(A) 67 67 68 71 72 72
🏢Duct Type Air Conditioner

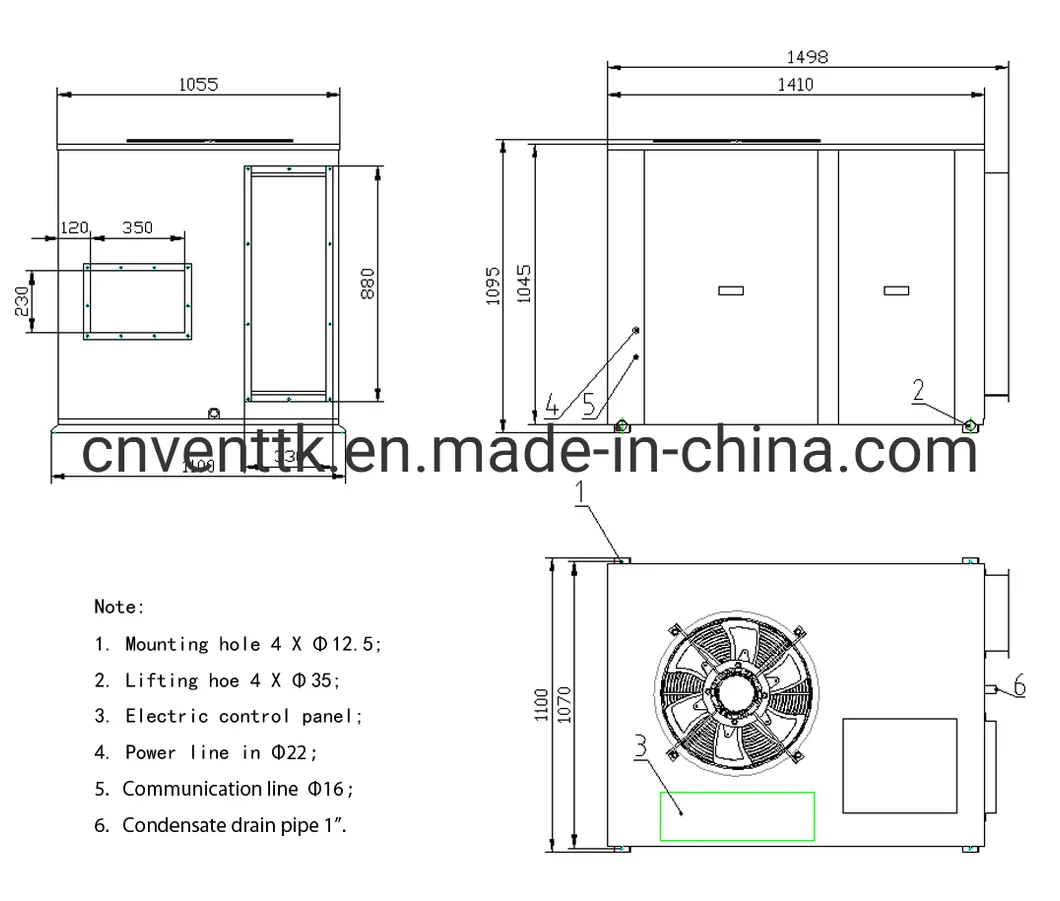

Duct type air conditioner drawing
  • 11 sizes available ranging from 19.5 kW to 103.7 kW cooling capacity.
  • Wide application: Hotels, apartments, villas, factories, and office buildings.
  • Multi-safety protection including high/low pressure and antifreeze switches.
  • Optional parts: Salt water evaporator, Electric heater, Hot water coil, T3 climate support.
📐Product Dimensions & Layout

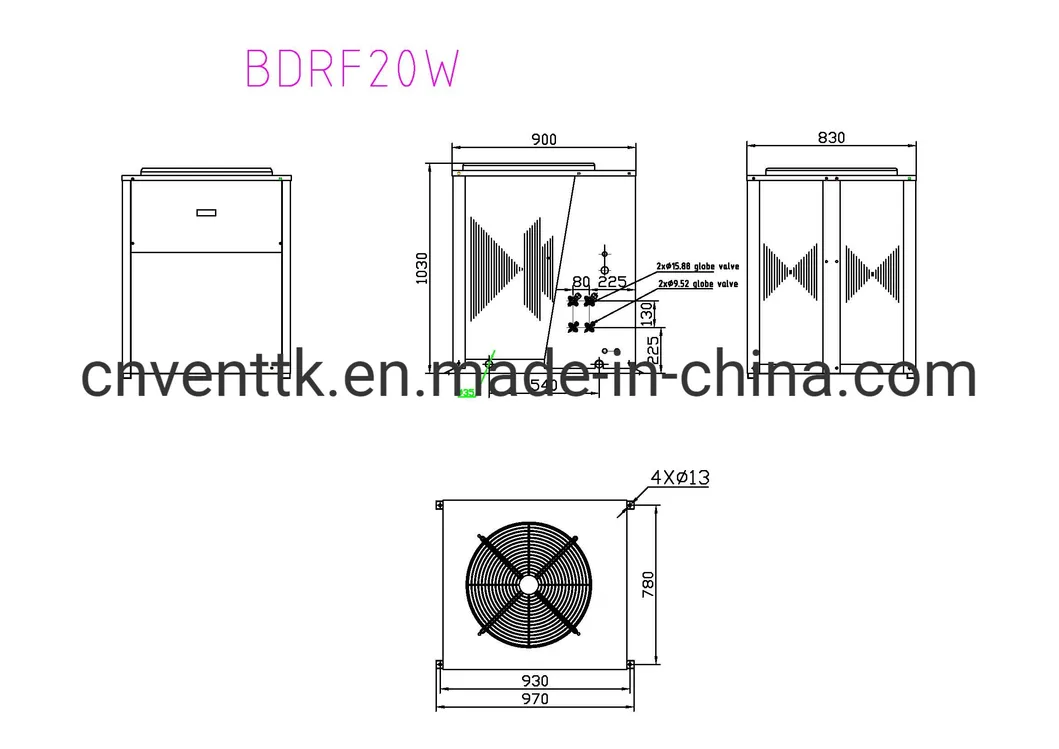

Outdoor unit size

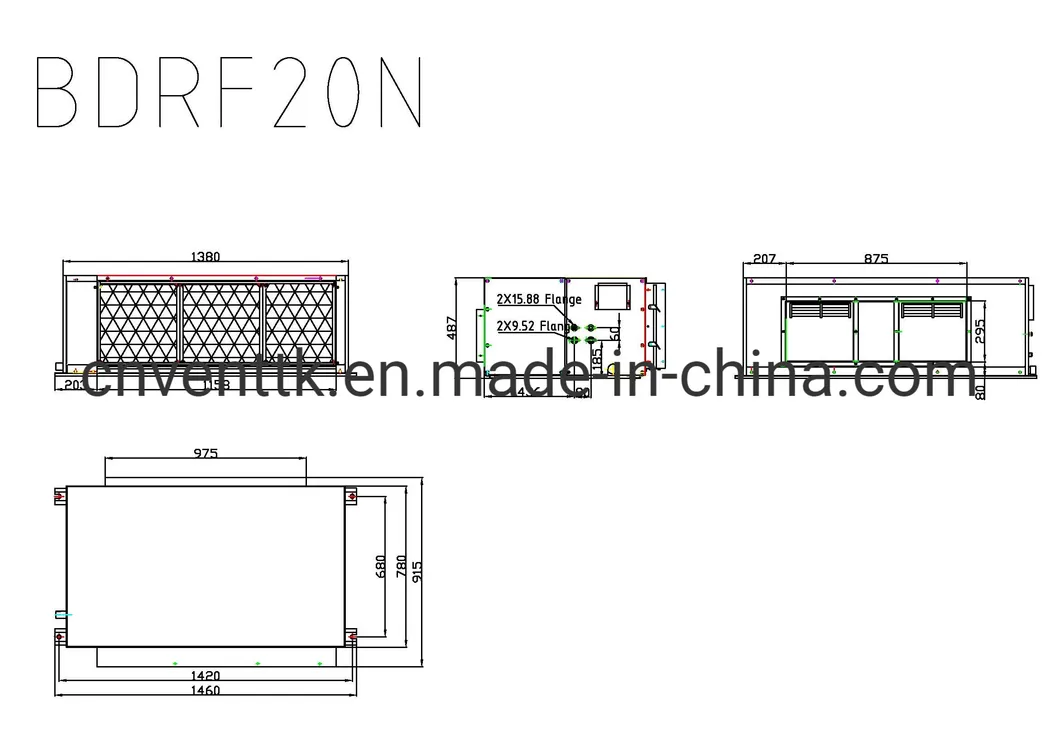

Indoor unit size 1
Indoor unit size 2
Dimensional Drawing 1
Dimensional Drawing 2
❓Frequently Asked Questions
1. What is the typical service life of these air conditioning units?
Our units are designed for long-term industrial and commercial use, with an expected lifetime of 15 to 20 years under proper maintenance.
2. Which compressor brands are used in your products?
We utilize high-efficiency scroll compressors from world-renowned brands such as Copeland and Panasonic to ensure reliability and performance.
3. Can these units operate in extremely hot tropical climates?
Yes, we offer an optional T3 (Tropical climate) configuration specifically designed to maintain high performance in ambient temperatures exceeding standard limits.
4. What kind of corrosion protection is provided?
The panels and frames are made from galvanized steel and further protected with polyester powder painting, providing superior resistance to atmospheric agents and corrosion.
5. Are the units compatible with Building Management Systems (BMS)?
Yes, BMS device compatibility is available as an optional feature, allowing for integrated control and monitoring within smart building infrastructures.
6. What certifications do these air conditioners hold?
Our air conditioning systems are fully compliant with international standards, holding RoHS, ISO, and CE certifications.
