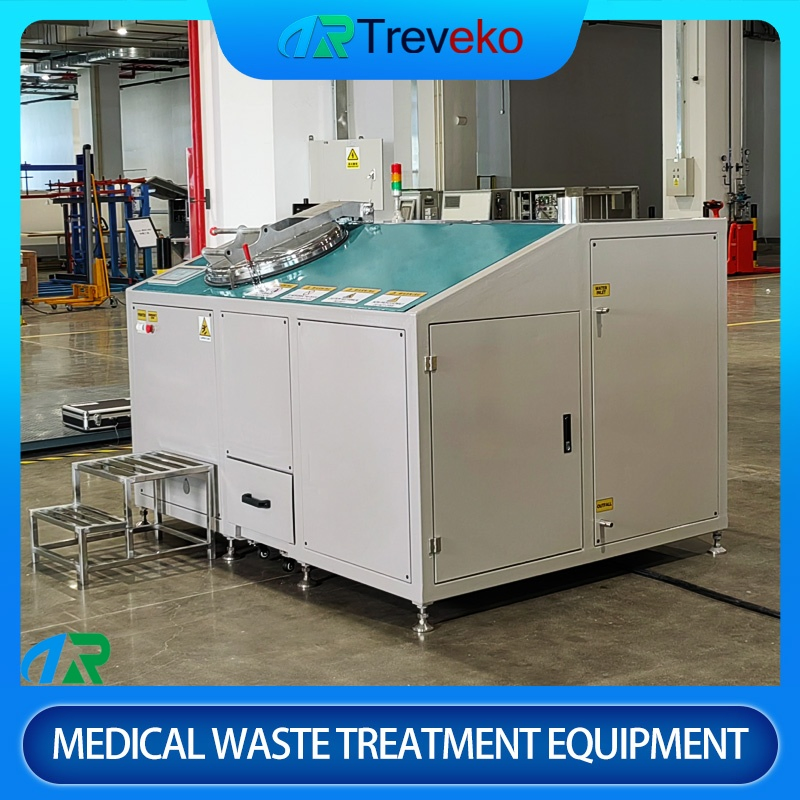

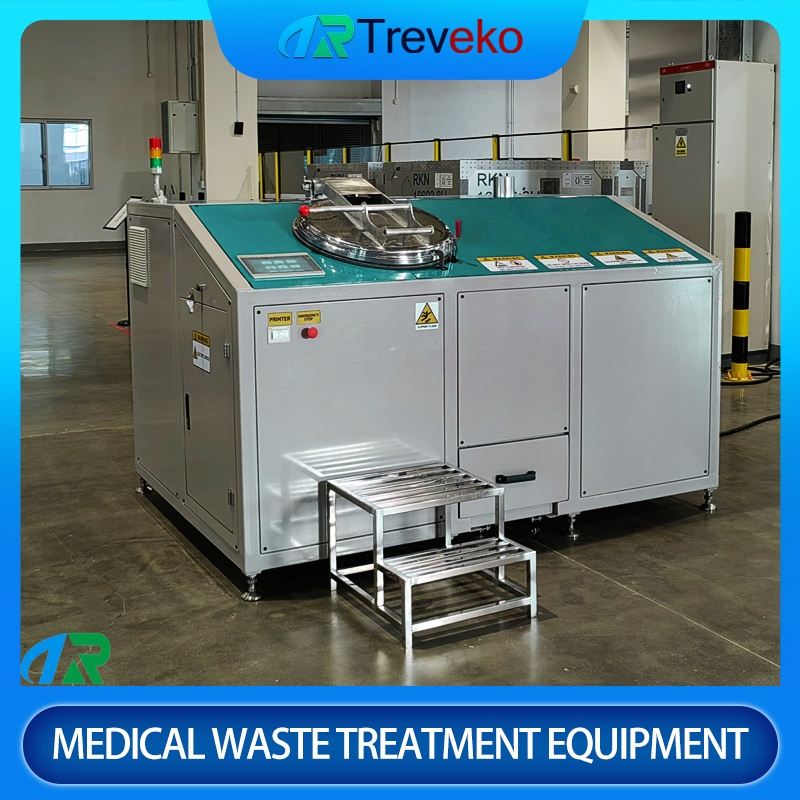

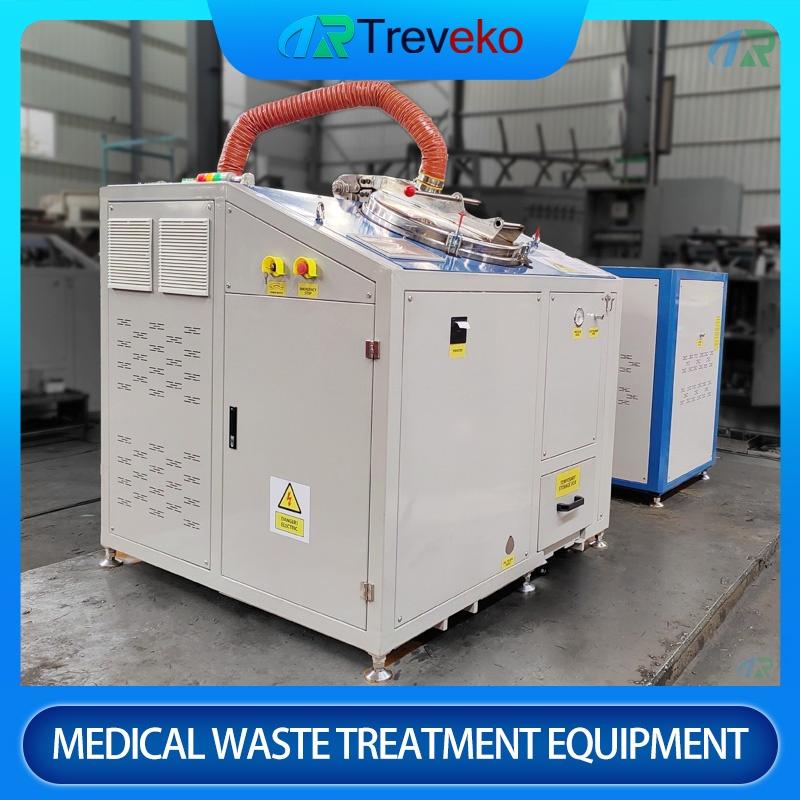

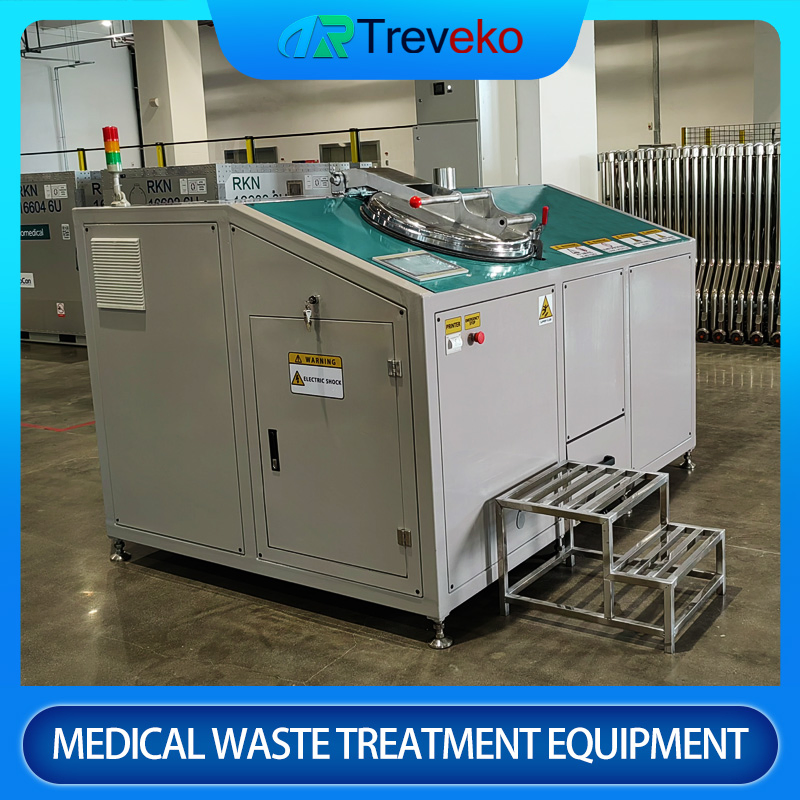

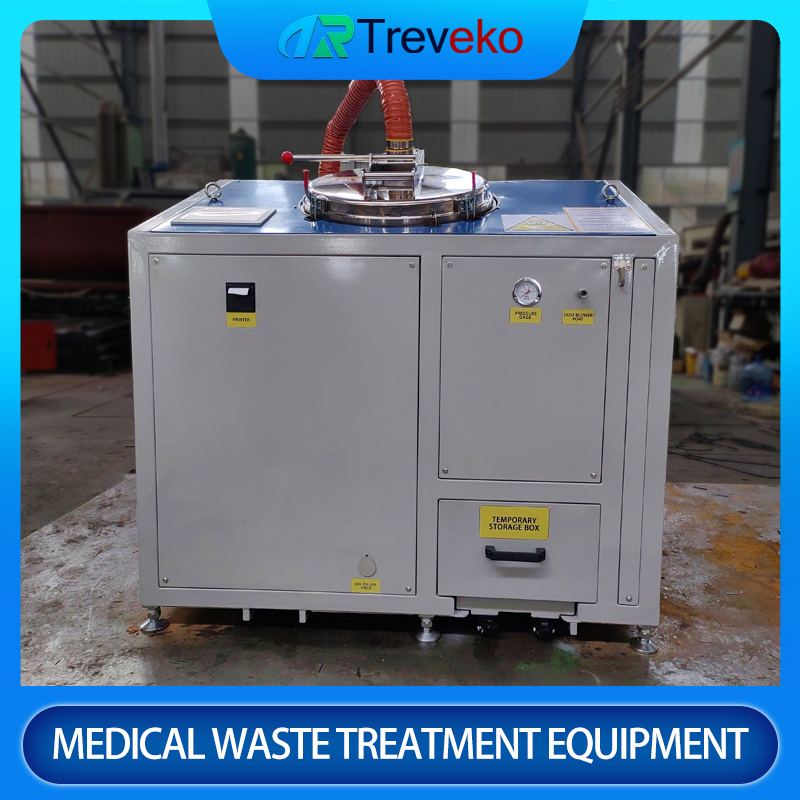

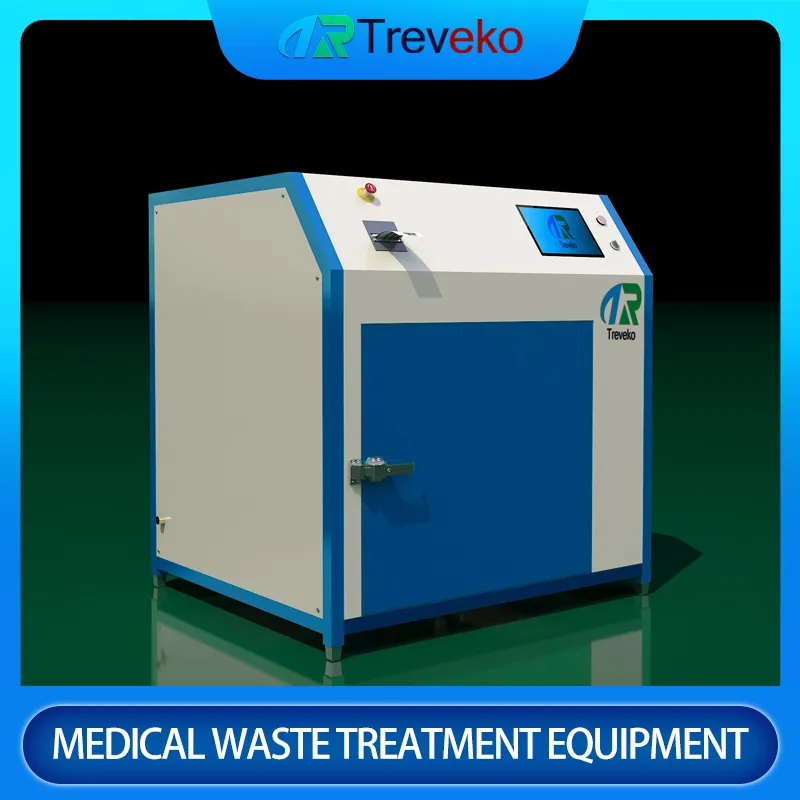

All-in-One Microwave Steam Sterilization Equipment for Decentralized Medical Waste Management

📊 Basic Information

Model NO.	TR-MWT-20
Condition	New
Certification	ISO, CE
Automation	Automatic
Screw	Twin-Screw
Treatment	Microwave
Total Power	24kw
Silo Volume	100L
Silo Material	Stainless Steel + Alloy Steel
Processing Volume	20 Kg/H
Sterilization Rate	>99.99% (Bacillus Subtilis)
Reduction Rate	80% Volume, 20% Weight

📦 Packaging & Delivery

Package Size	220.00cm * 170.00cm * 200.00cm
Package Gross Weight	2000.000kg
Transport Package	Wooden Crates or Pallets

🛠️ Product Description

🔹

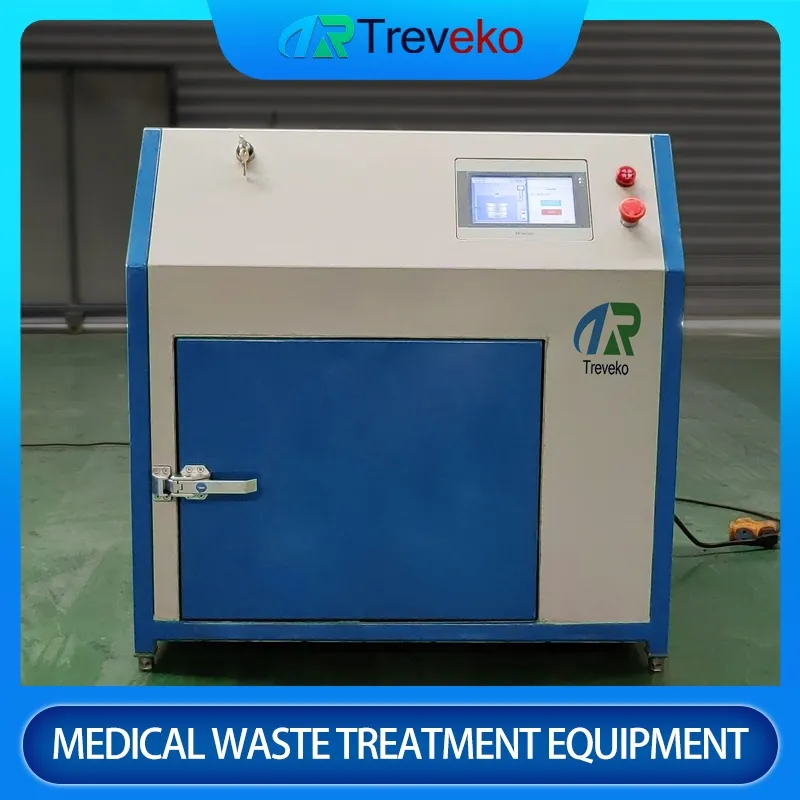

Compact & Batch Operation Units like TR-MWT-10/40 are ideal for on-site treatment in clinics and labs. Their small footprint allows for flexible placement in limited spaces.

🔹

Microwave-Steam Synergy Utilizes 2.45 GHz microwave energy with steam injection to achieve deep sterilization (≥95°C for ≥45 min), ensuring a log reduction ≥6.

🔹

Automated PLC Control Features an intuitive touchscreen interface for one-touch operation, real-time monitoring, and automated data logging for compliance.

🔹

Safety & Emission Control Closed-loop 316 stainless steel chamber with activated carbon adsorption filters to remove odors and VOCs safely.

🔄 Process Flow

1

Preparation & Loading: Waste is placed in a dedicated container and loaded into the sealed chamber.

2

Automatic Cycle Start: Operator selects "Auto Mode" via the touchscreen PLC panel.

3

Sterilization Phase: Combined steam and 2.45 GHz microwave energy heat waste to ≥95°C for 45+ minutes.

4

Exhaust Gas Treatment: Negative pressure extracts gases through an activated carbon filter to remove odors.

5

Cooling & Unloading: System cools contents to ambient temperature and signals cycle completion for safe removal.

📋 Technical Specifications

Parameter / Model	TR-MWT-10	TR-MWT-20	TR-MWT-30
Hopper Volume	40 L	100 L	180 L
Hopper Material	SS + Alloy Steel	SS + Alloy Steel	SS + Alloy Steel
Shredder Power	-	15 kW	18.5 kW
Microwave Generators	1.5 kW x 2	1.5 kW x 2	1.5 kW x 2
Kill Rate	>99.99%	>99.99%	>99.99%
Reduction	Vol: 80%, Wt: 20%	Vol: 80%, Wt: 20%	Vol: 80%, Wt: 20%
Overall Dim. (mm)	920850980	176016001570	200015001800
Throughput (kg/h)	4	20	30

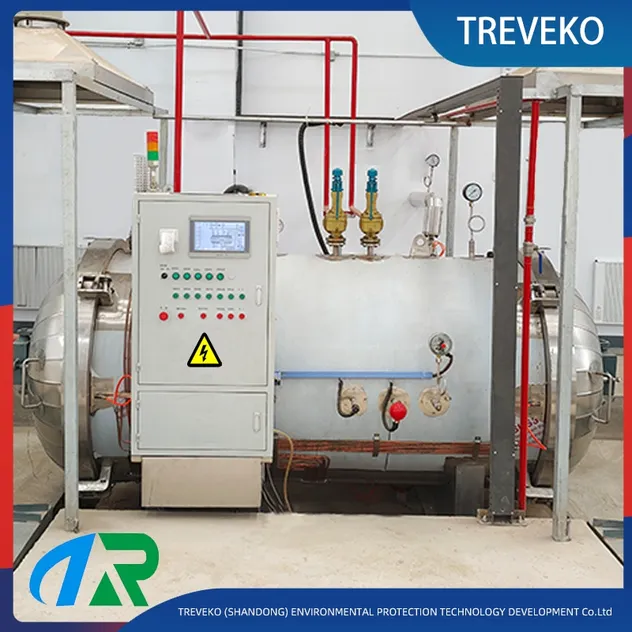

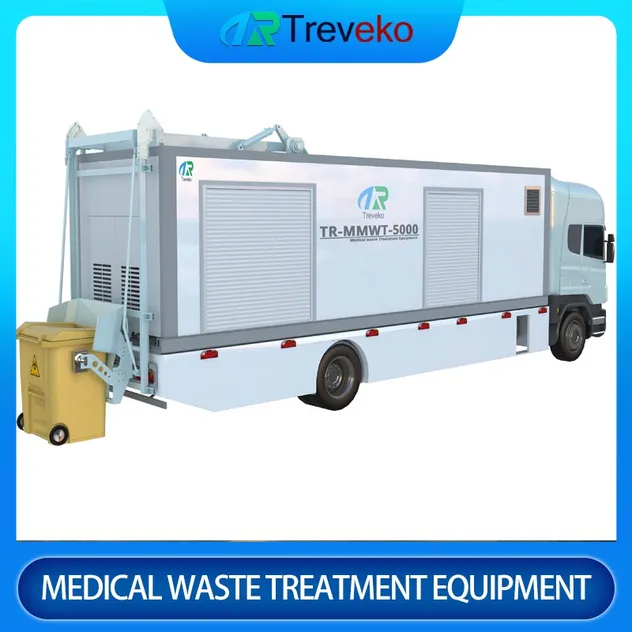

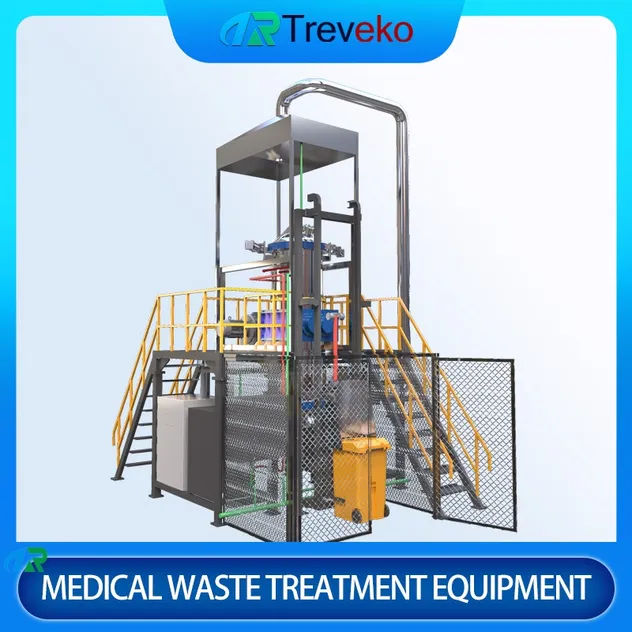

🌟 Other Products

🏢 Professional Expertise

We are a Sino-foreign joint venture specializing in environmental technology. Our focus is on manufacturing high-end environmental protection equipment, providing solid waste treatment solutions, and developing innovative technical services for global ecological management.

🤝 Global Cooperation

❓ Frequently Asked Questions

What types of medical waste can this equipment disinfect?

It is suitable for infectious medical waste from clinics and hospitals, including cotton swabs, gauze, disposable medical devices, masks, and more.

Is the operation complicated for medical staff?

No, the PLC touchscreen allows for one-button start-up. Medical personnel can operate it independently after just 10–30 minutes of training.

Can the equipment be customized?

Yes, we support customization of core parameters like processing capacity, dimensions, and specific control system requirements.

How effective is the sterilization process?

The system achieves a microbial log reduction ≥ 6 (99.9999% kill rate), effectively inactivating even the most resistant pathogens like Bacillus atrophaeus spores.

Does the equipment produce bad odors or emissions?

The unit features an integrated activated carbon adsorption system that treats waste gas, removing odors and VOCs to meet strict environmental emission standards.

What are the requirements for installation?

It is a plug-and-play skid-mounted unit requiring only a standard power supply (380V), water for the steam system, and a basic exhaust vent connection.
