OEM Filter Element 40" High Flow Filter Cartridge Dirt Holding Capacity for Oil and Chemical
OEM Filter Element 40" High Flow Filter Cartridge Dirt Holding Capacity for Oil and Chemical
OEM Filter Element 40" High Flow Filter Cartridge Dirt Holding Capacity for Oil and Chemical
OEM Filter Element 40" High Flow Filter Cartridge Dirt Holding Capacity for Oil and Chemical
OEM Filter Element 40" High Flow Filter Cartridge Dirt Holding Capacity for Oil and Chemical
1 / 5
OEM Filter Element 40" High Flow Filter Cartridge Dirt Holding Capacity for Oil and Chemical
OEM Filter Element 40" High Flow Filter Cartridge Dirt Holding Capacity for Oil and Chemical
OEM Filter Element 40" High Flow Filter Cartridge Dirt Holding Capacity for Oil and Chemical
OEM Filter Element 40" High Flow Filter Cartridge Dirt Holding Capacity for Oil and Chemical
OEM Filter Element 40" High Flow Filter Cartridge Dirt Holding Capacity for Oil and Chemical

OEM Filter Element 40" High Flow Filter Cartridge Dirt Holding Capacity for Oil and Chemical

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
HMPHF
Filter Connector
PP
Filtration Grade
Medium Filter
Filter Type
Compact Activated Carbon
Gasket/O-Ring
EPDM, Silicone, PTFE Coated
Specification
20, 40, 60 Inches
HS Code
84219990
Capacity
5000PCS/Day
Product Description

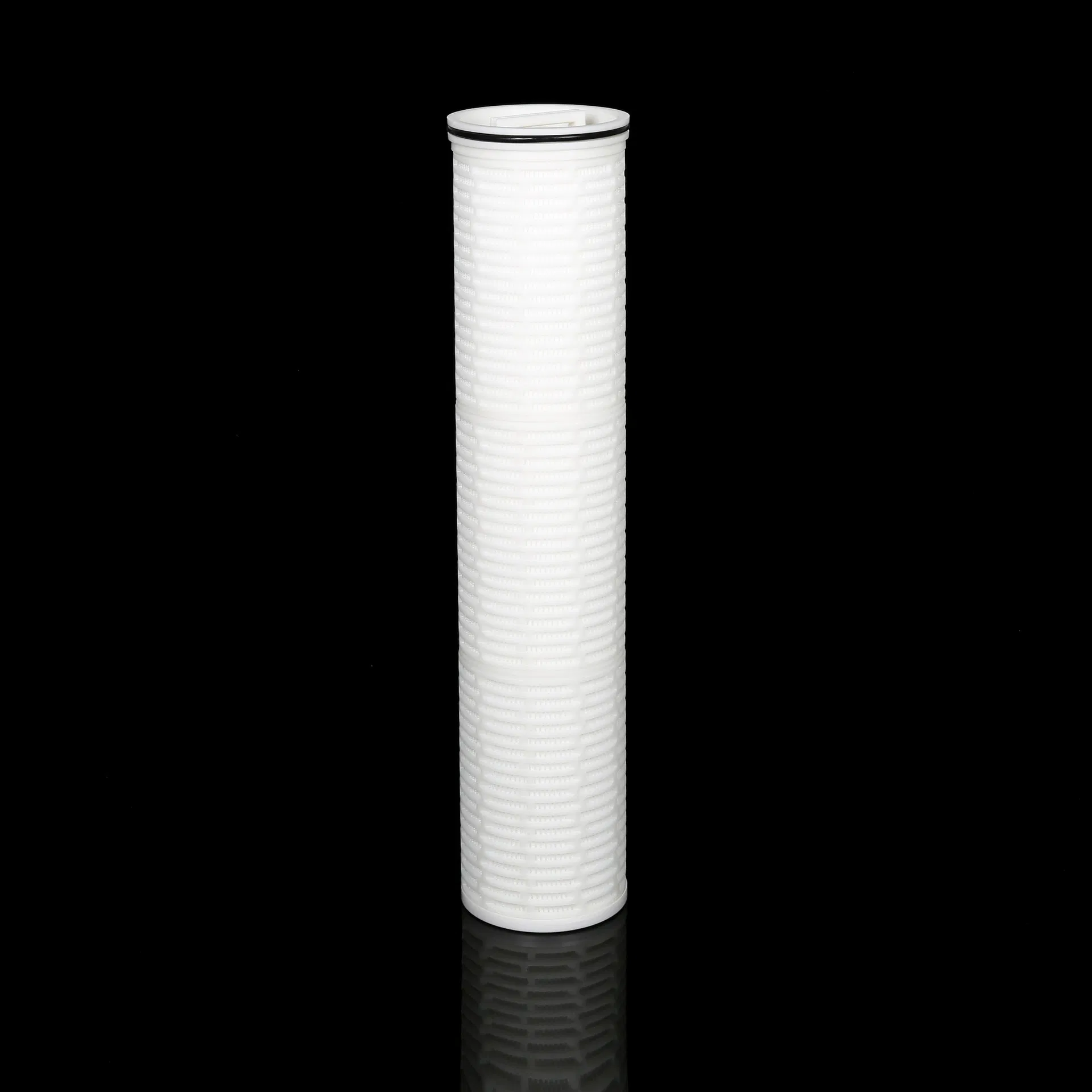

OEM Filter Element 40 Inches High Flow Filter Cartridge

This is a universal high-flow filter cartridge designed for industrial efficiency. Its large diameter provides a significant filtration area, reducing the required number of cartridges and the footprint of the filter housing. High flow rates and long service life lead to lower operational investment and labor costs.

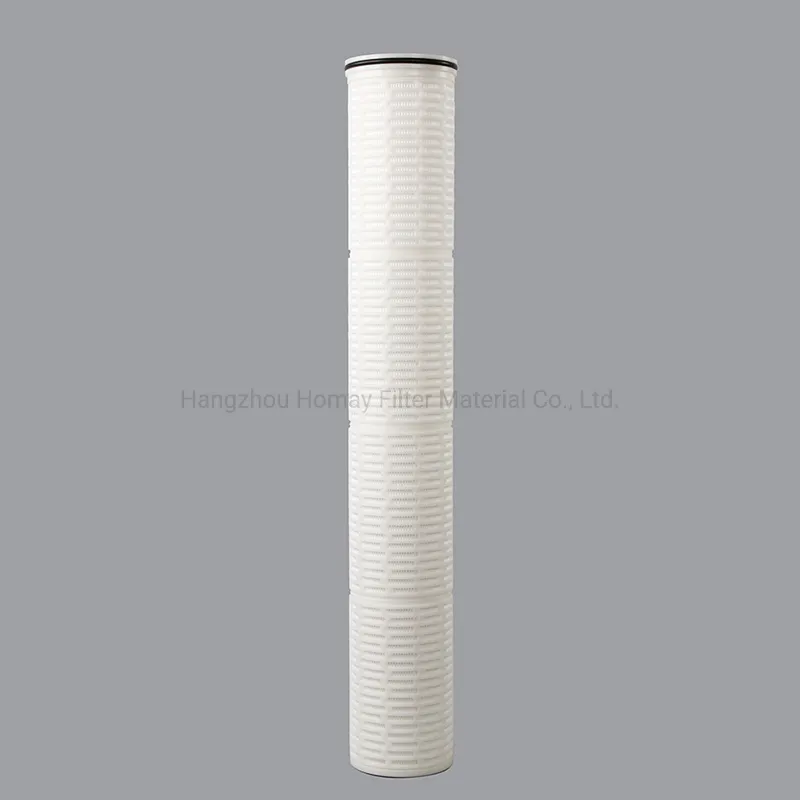

High Flow Filter Cartridge Overview
Benefits & Features
Large Filtration Area: Up to 8m² for superior flow capability.
Dirt Holding: High dirt holding capacity for longer service cycles.
Customizable: Various layer designs to meet specific application needs.
Precision: Both nominal and absolute micron ratings are available.
Industrial Applications
Sea water desalination
Food and beverage
Microelectronics
Oil & Chemical
Power plant & Steel mill water treatment
Product Parameters
Parameter Details
Media MaterialPP / Glass Fiber / PTFE / Melt Blown
Shell MaterialPFA
Max. Operating Temperature80ºC
Max. Operating DP4bar @ 21ºC / 2.4bar @ 80ºC
Ordering Information
Series Media Micron Rating (μm) Length Outside Type Seal Material
HMPHF GF: Glass Fiber
PN: PP Nominal
PA: PP Absolute
MB: PP Melt Blown		 0.5, 1, 3, 5, 10, 25, 50, 70, 100 20", 40", 60" B: Belt
C: Cage
6: SS316L
4: SS304		 S: Silicone
B: Buna
E: EPDM
V: Viton
F: E-FKM
Detailed Photos

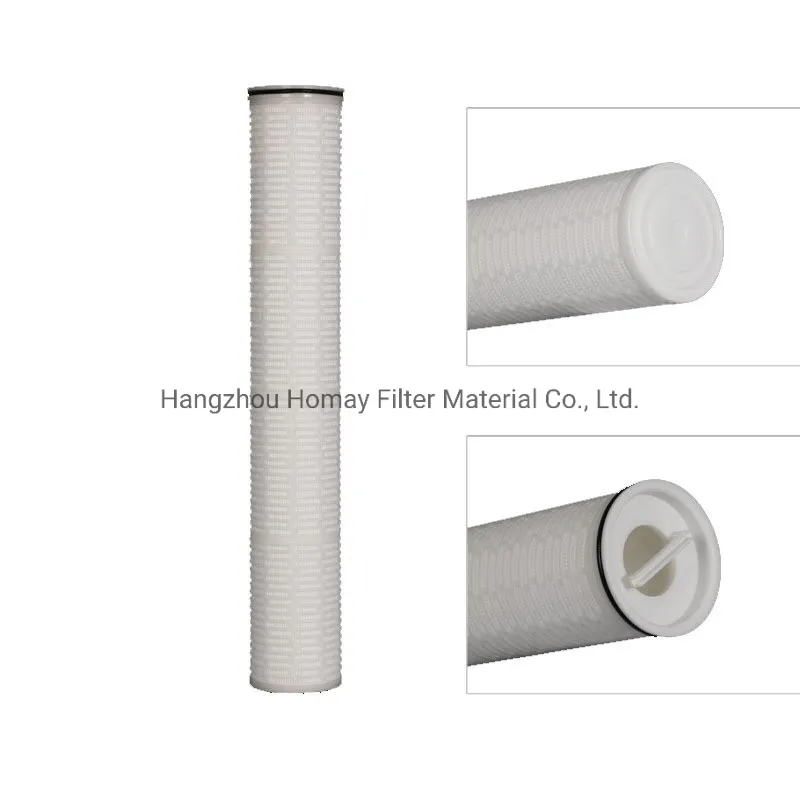

Filter Detail 1

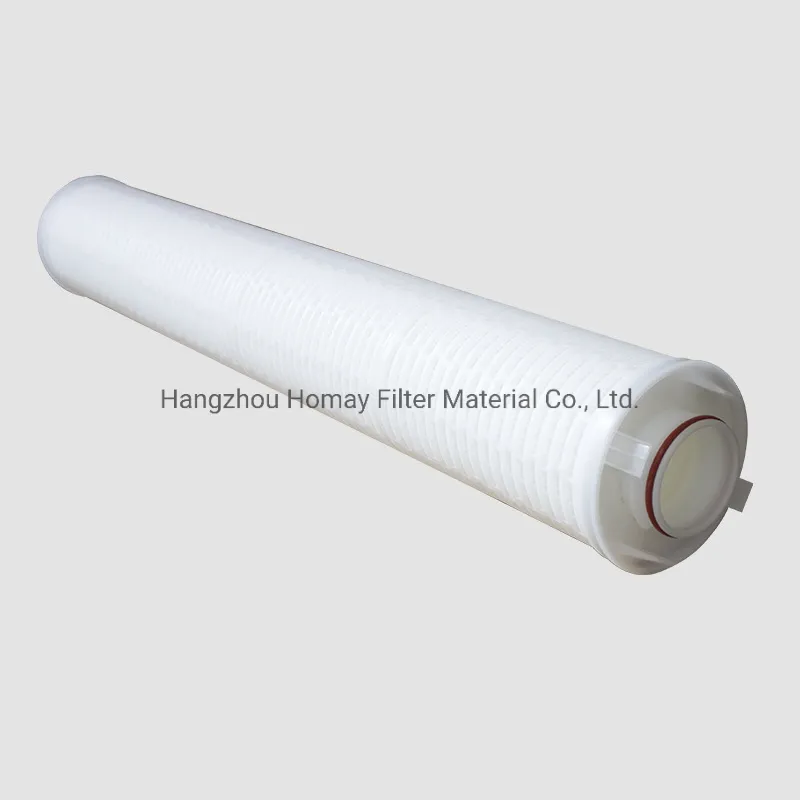

Filter Detail 2

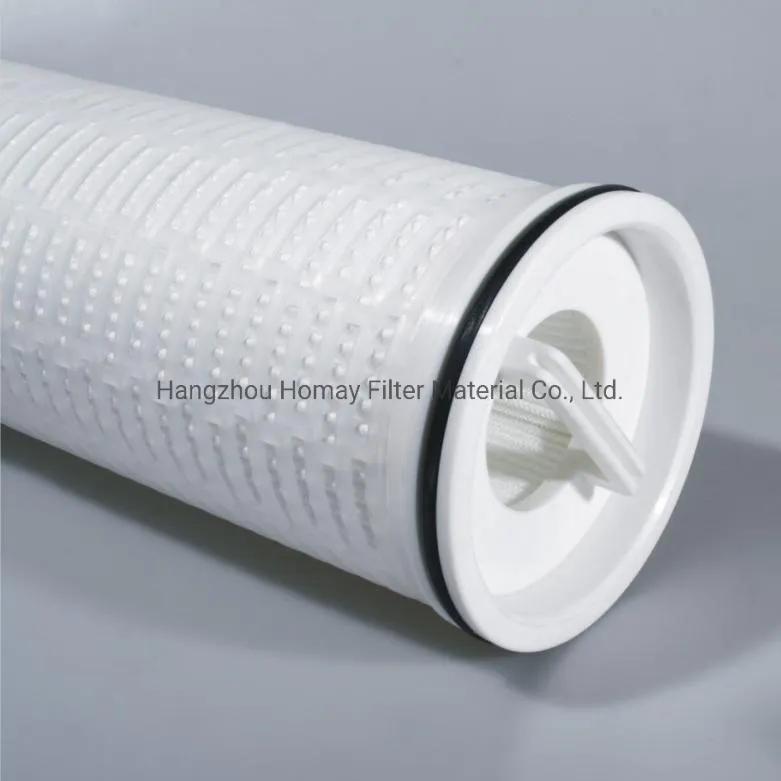

Filter Detail 3

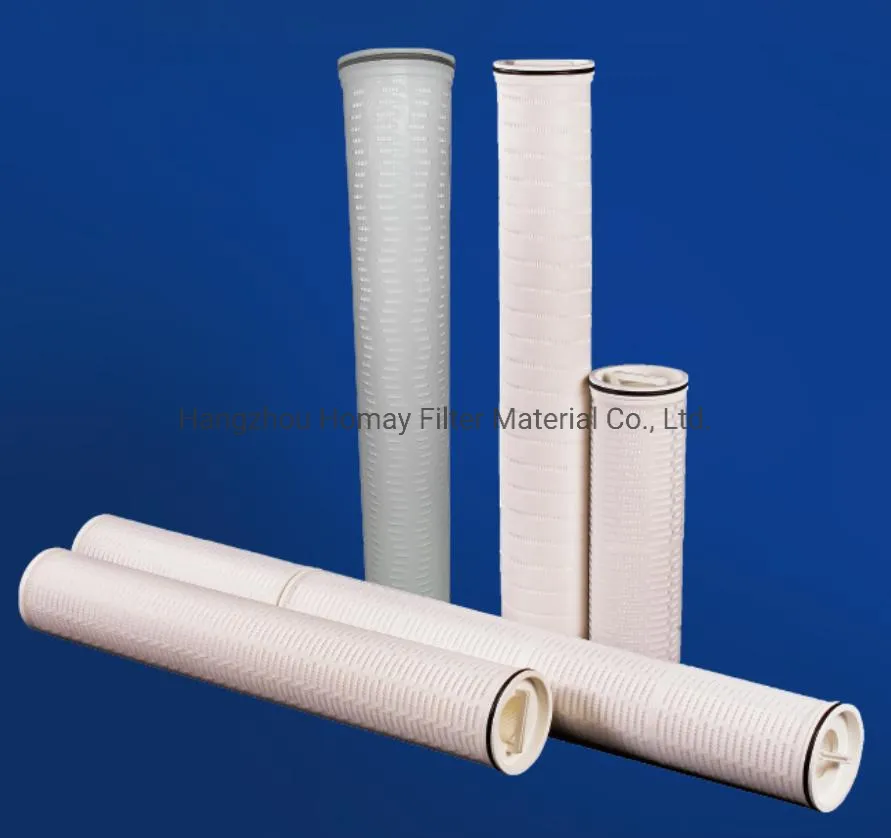

Filter Detail 4
Filter Production
Quality Check
Filter Specifications
Application Diagram
Frequently Asked Questions
What are the primary benefits of using high flow filter cartridges?
High flow cartridges offer a much larger filtration area (up to 8m³), allowing for higher flow rates and superior dirt-holding capacity. This reduces the number of filters needed and simplifies housing requirements.
In what lengths are these filter cartridges available?
The standard lengths available are 20 inches, 40 inches, and 60 inches to fit various industrial housing sizes.
What is the maximum operating temperature for these filters?
The maximum operating temperature for these filter cartridges is 80ºC, making them suitable for many hot water and chemical applications.
What industries typically use these high flow filters?
They are widely used in sea water desalination, food and beverage processing, microelectronics, oil and chemical industries, and power plant water treatment.
Can I choose between different sealing materials?
Yes, we offer multiple seal options including Silicone, Buna, EPDM, Viton, and E-FKM to ensure compatibility with different fluids.
Are both nominal and absolute micron ratings available?
Yes, depending on your filtration requirements, you can select from various media types that offer either nominal or absolute micron ratings.
