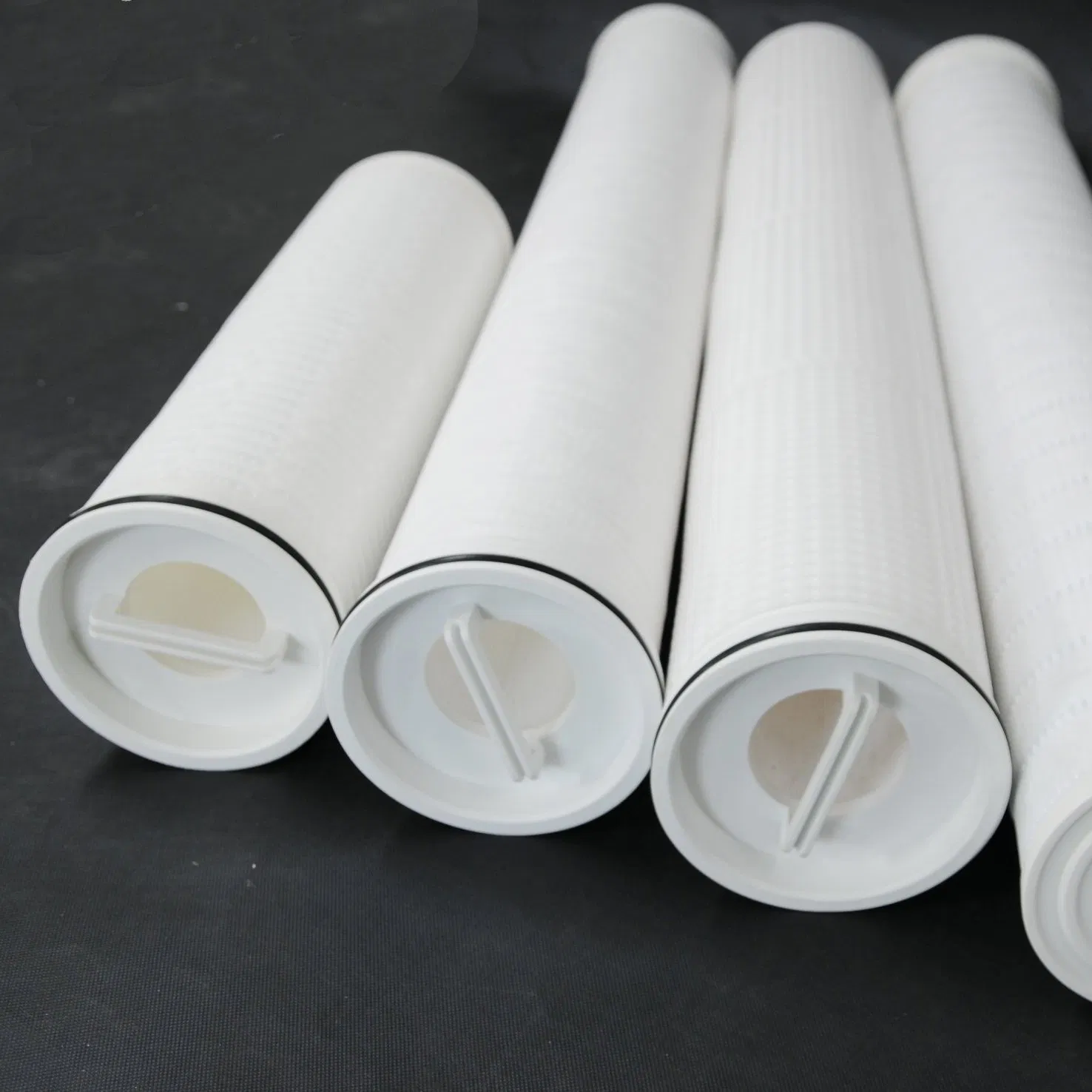

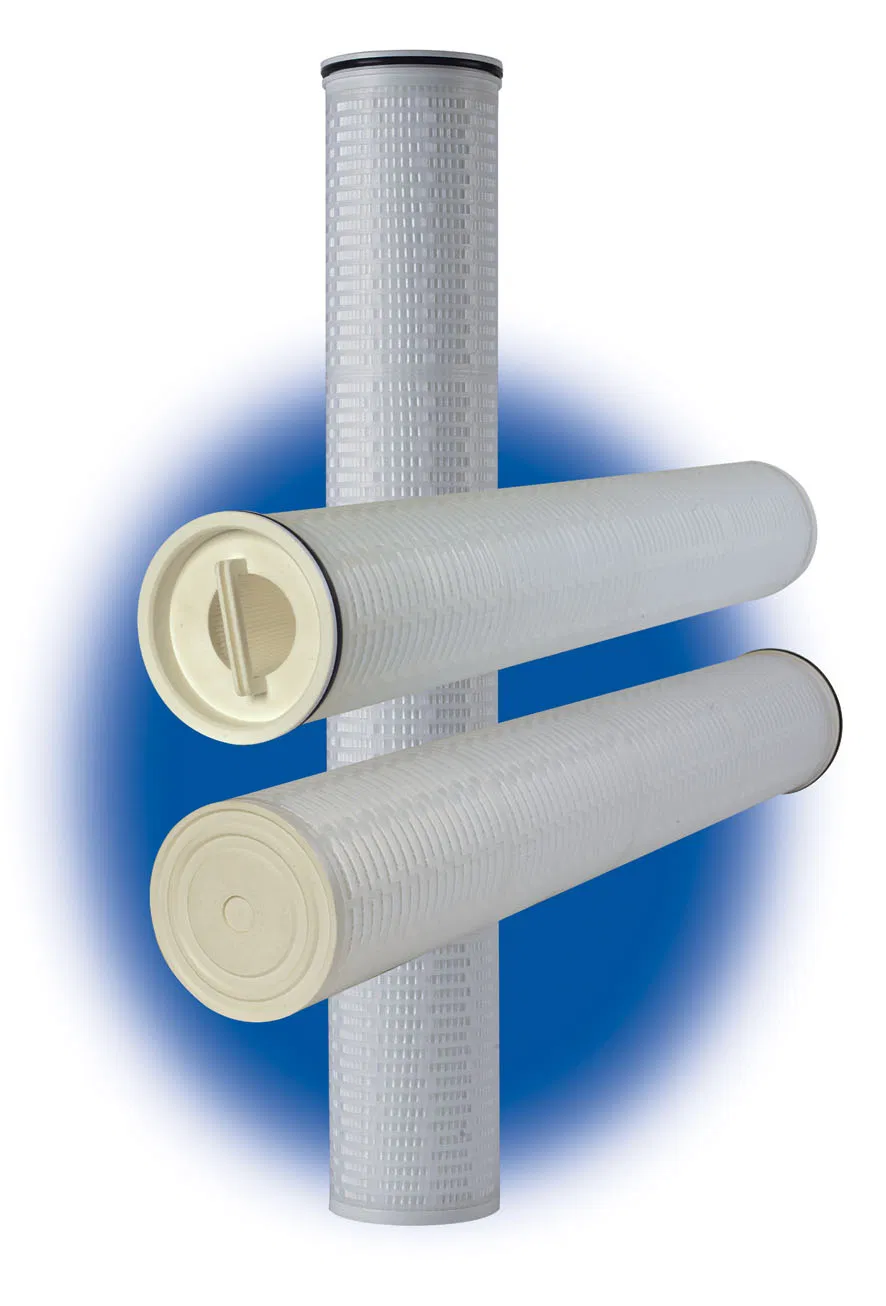

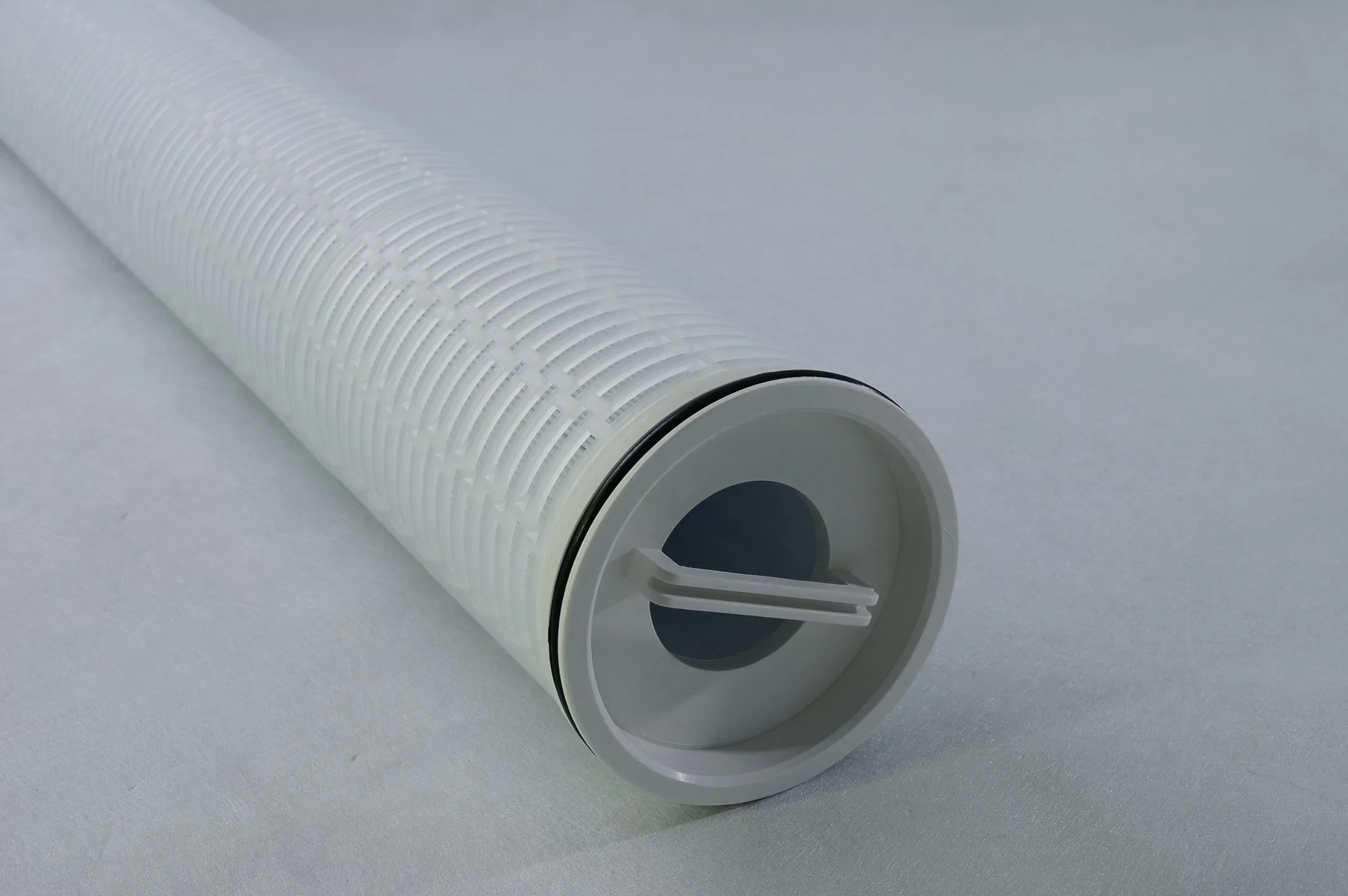

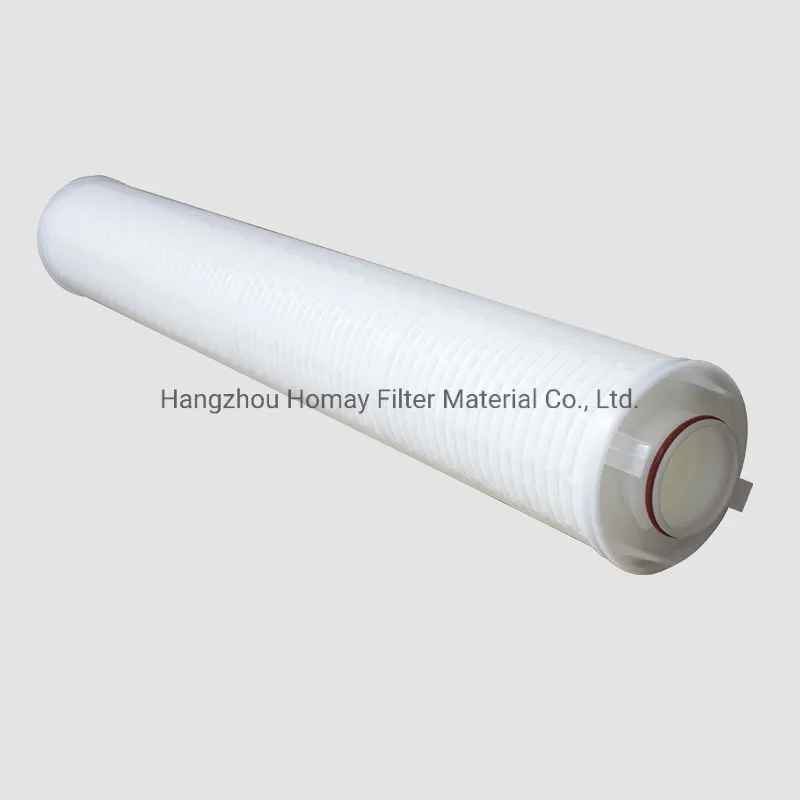

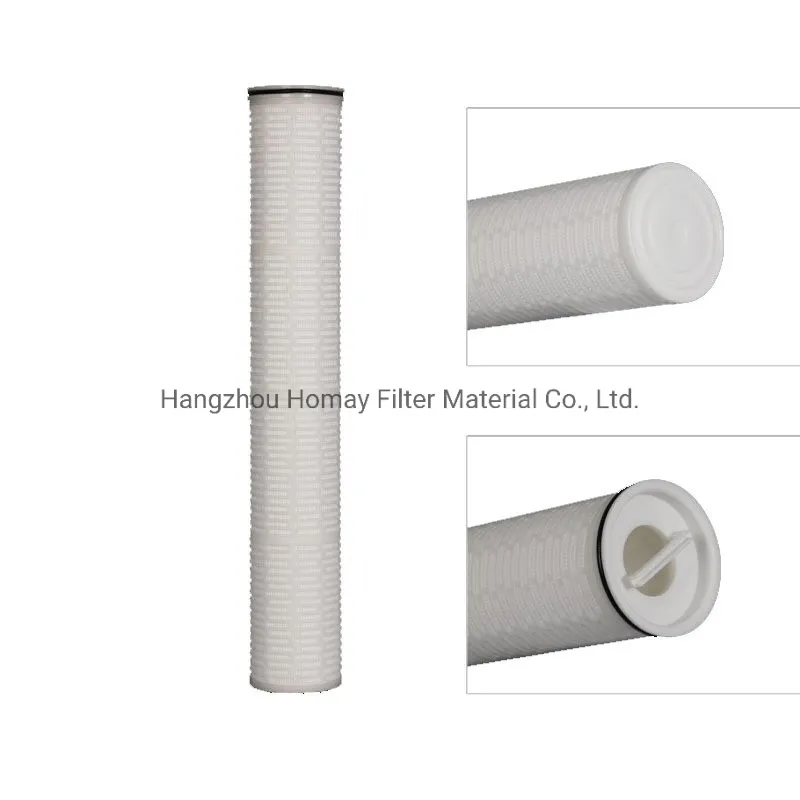

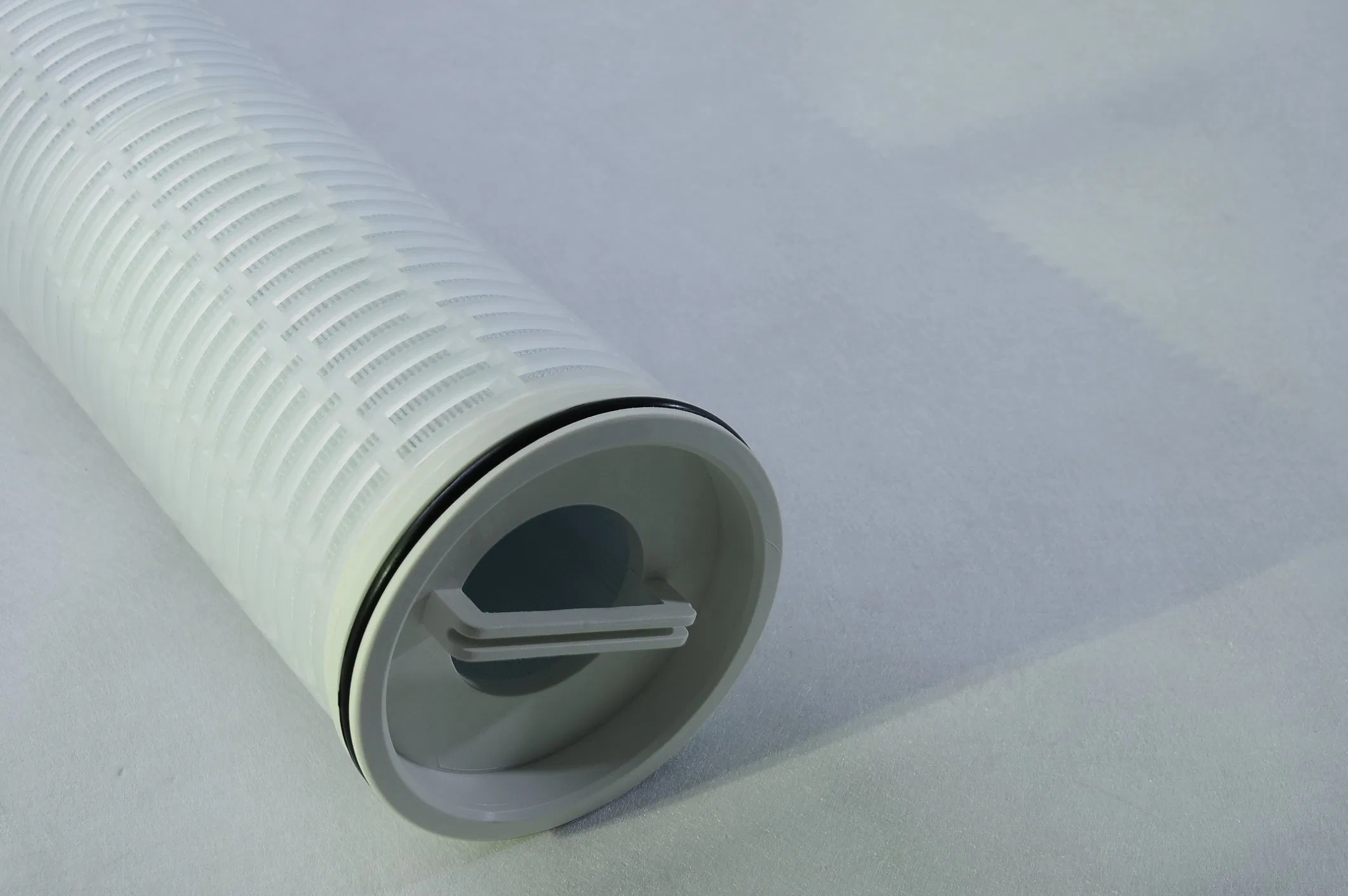

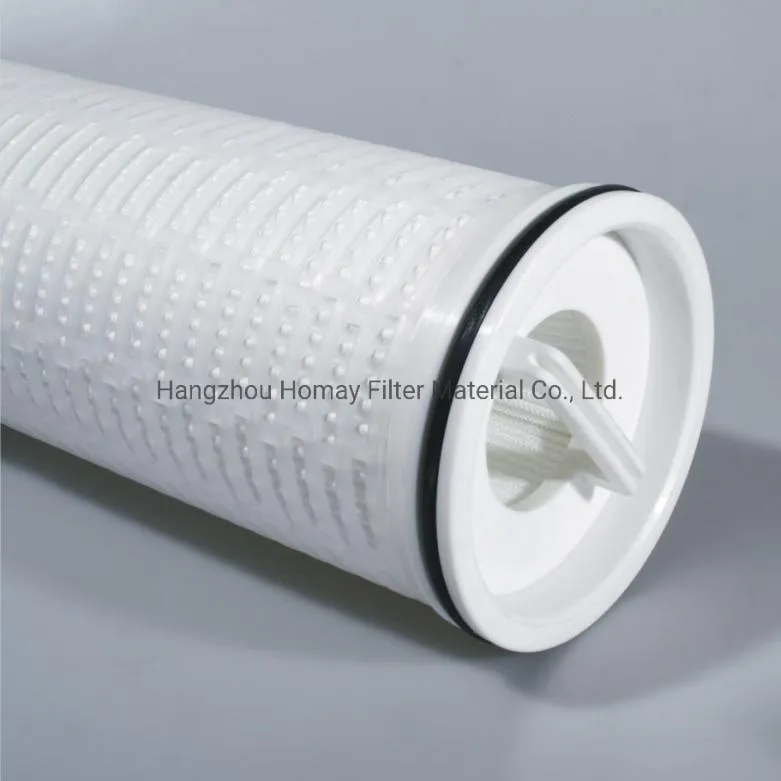

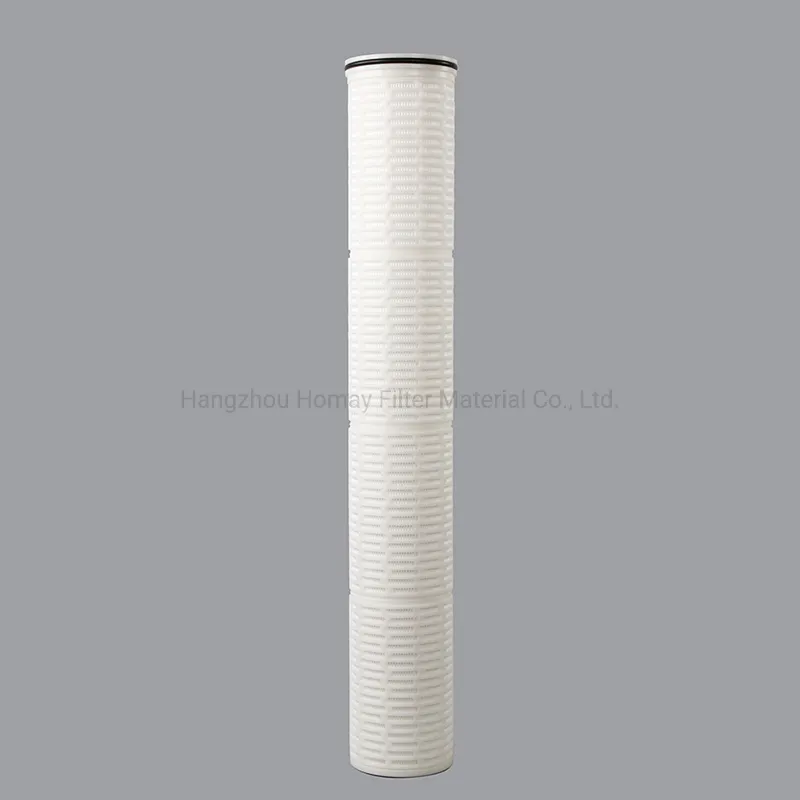

This is a universal high flow filter cartridge designed with a large diameter and expansive filtration area. It significantly reduces the number of filter cartridges and the size of the housing required. Its long service life and high flow rate ensure low investment and reduced manpower across various industrial applications.
| Model NO. | HMPHF |
|---|---|
| Filter Connector | PP |
| Filtration Grade | Medium Filter |
| Activated Carbon Filter Type | Compact |
| Gasket/O-Ring | EPDM, Silicone, PTFE Coated or Others |
| Specification | 20, 40, 60 Inches |
| HS Code | 84219990 |
| Production Capacity | 5000PCS/Day |
| Package Size | 7.00cm * 8.00cm * 102.00cm |
| Package Gross Weight | 4.000kg |
| Media | PP / GF / PTFE / MB |
|---|---|
| Shell | PFA |
| Max. Operating Temperature | 80ºC |
| Max. Operating DP | 4bar @ 21ºC / 2.4bar @ 80ºC |
| Series | Media Type | Removal Rating | Length | Outer Support | Seal Material |
|---|---|---|---|---|---|
| HMPHF | GF: Glass Fiber PN: PP Nominal PA: PP Absolute MB: Melt Blown |
0.5μm, 1μm, 3μm, 5μm, 10μm, 25μm, 50μm, 70μm, 100μm |

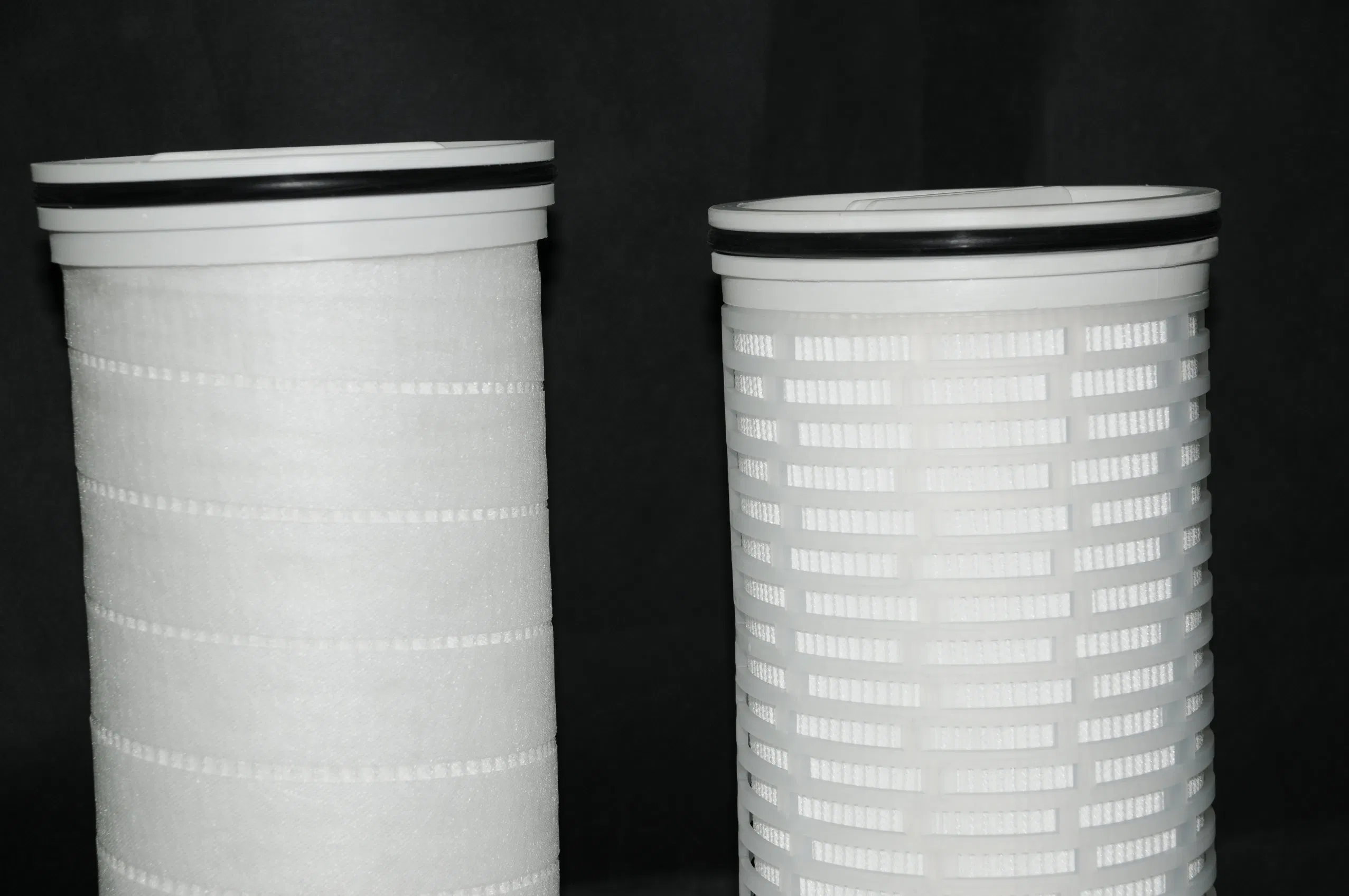

20", 40", 60" | B: Belt C: Cage 6: SS316L 4: SS304 |
S: Silicone B: Buna E: EPDM V: Viton F: E-FKM |
They offer a much larger filtration area (up to 8m²) and higher flow rates compared to standard cartridges, which means fewer filters are needed, reducing housing size and maintenance costs.
The maximum operating temperature for the HMPHF series is 80ºC, making them suitable for a wide range of industrial hot water and chemical applications.
Common applications include sea water desalination, food and beverage processing, microelectronics, power plant water treatment, and oil/chemical filtration.

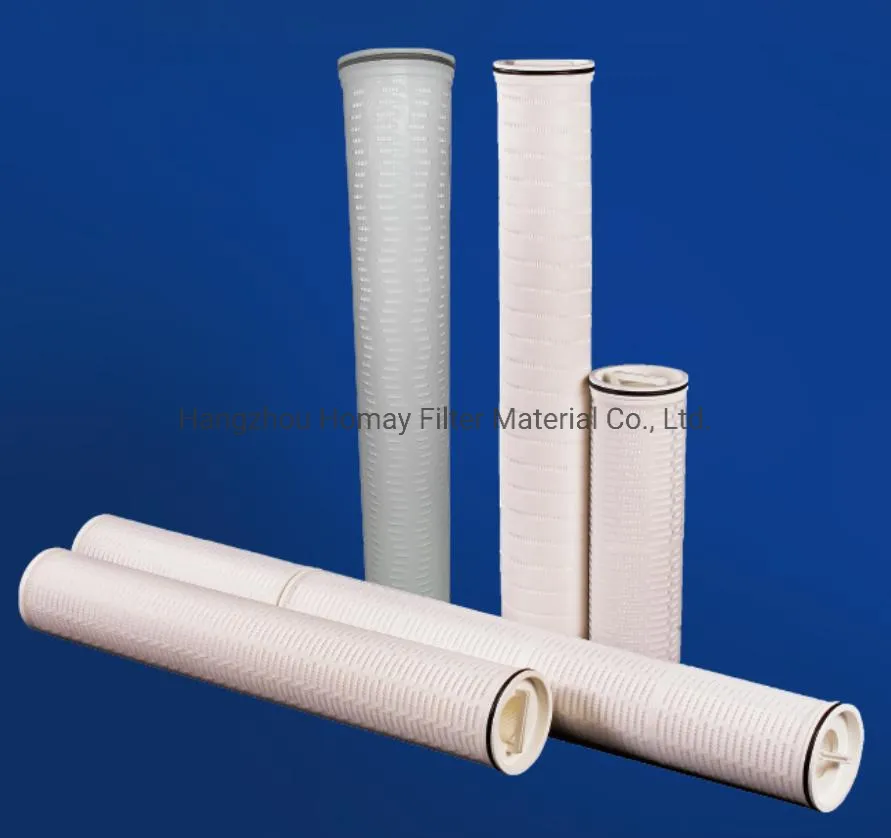

The cartridges are available in standard lengths of 20 inches, 40 inches, and 60 inches to fit different housing requirements.
Yes, we offer multiple seal options including Silicone, Buna, EPDM, Viton, and E-FKM to ensure compatibility with various fluids.
Ratings range from as fine as 0.5μm up to 100μm, with options for both nominal and absolute filtration efficiency.
