The high flow replacement filter cartridge series is designed for use in various filter housings containing 1-37 cartridges. It meets diverse flow rate requirements. The large diameter and expansive filter area ensure a reduction in the number of cartridges and the housing dimensions required. These cartridges are ideal for water treatment systems, offering higher dirt-holding capacity and longer service life for large industrial water plant projects.
Product Name

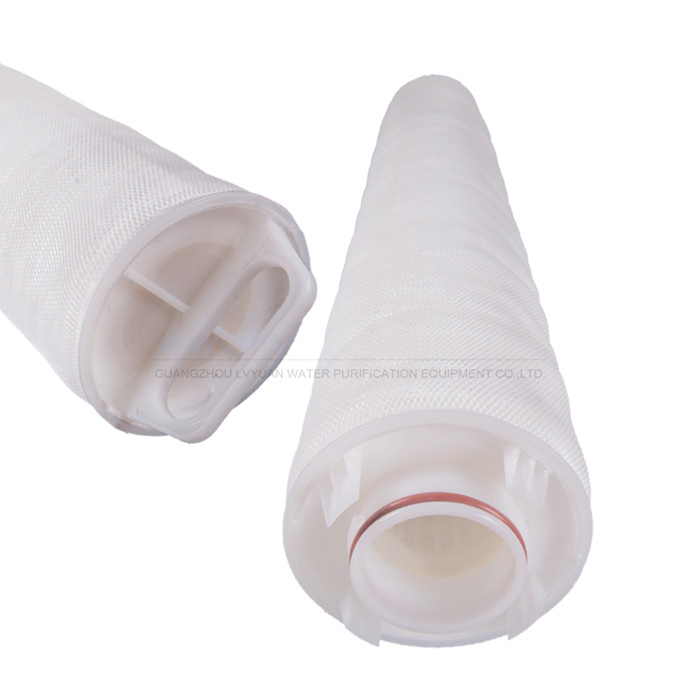

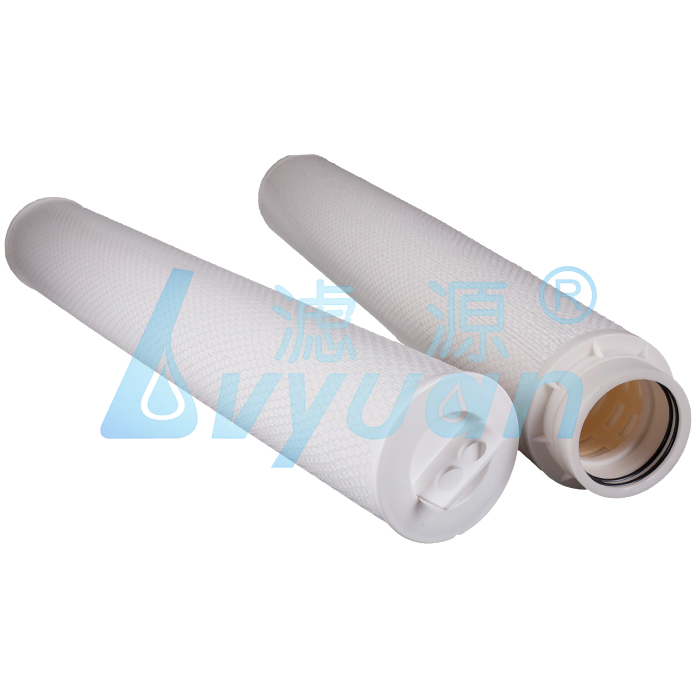

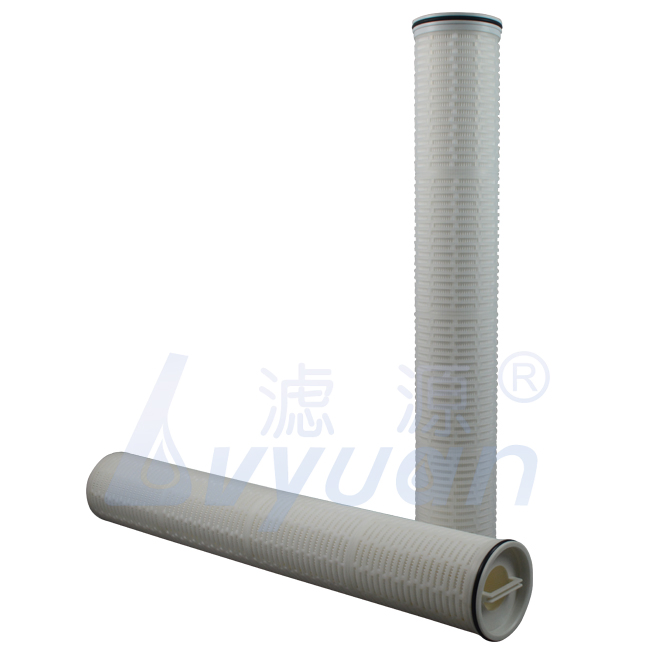

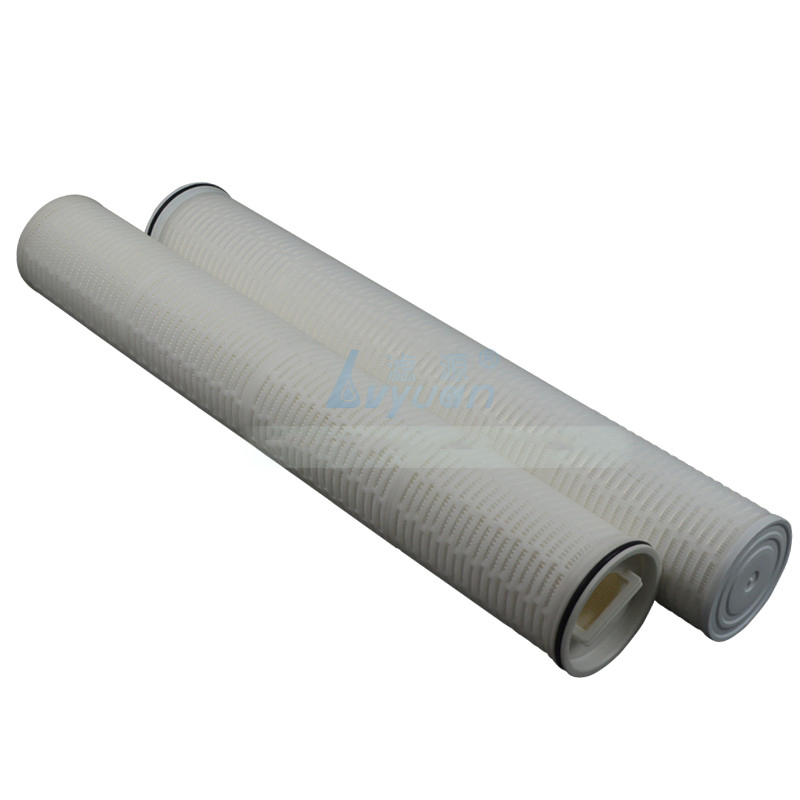

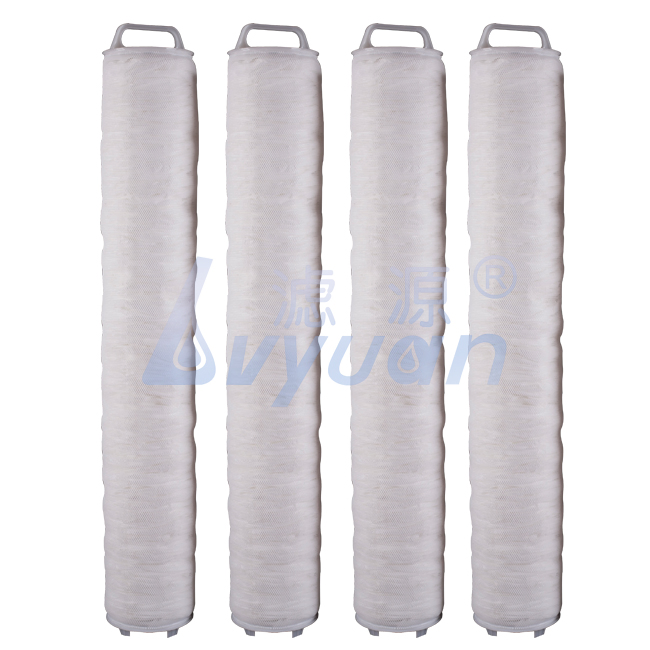

Large capacity polypropylene pleated membrane cartridge for salt water sediment pre-treatment
Filtration Media
Polypropylene membrane & Fiberglass membrane
Support Material
Polypropylene
Structural Components
Polypropylene
Filtration Microns
1μm, 2μm, 3μm, 5μm, 10μm, 20μm, 25μm, 30μm, 50μm
Length Options
10", 20", 30", 40", 50", 60", Customized
Adaptor Type
SOE/DOE
Max. Temp (PP)
82ºC
Max. Temp (Fiberglass)
121ºC
Applications
Chemical industry, Organic solvents, Pharmaceutical, Food industry, RO water treatment
Product Series Overview

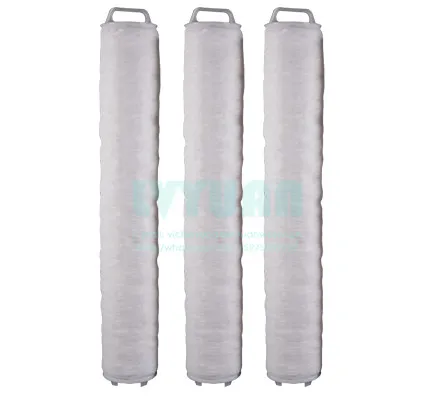

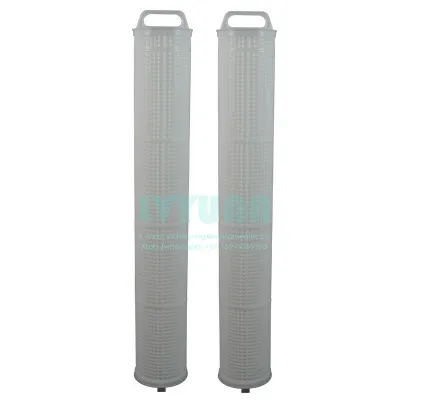

LY-HFM & LY-HFMH Series: Designed for high flow rate requests with large diameters to reduce housing dimensions. The LY-HFMH series features horizontal pleated designs for specific industrial water plant projects.

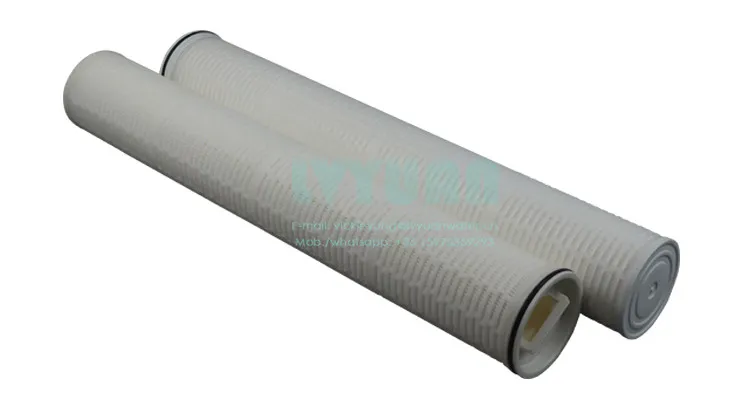

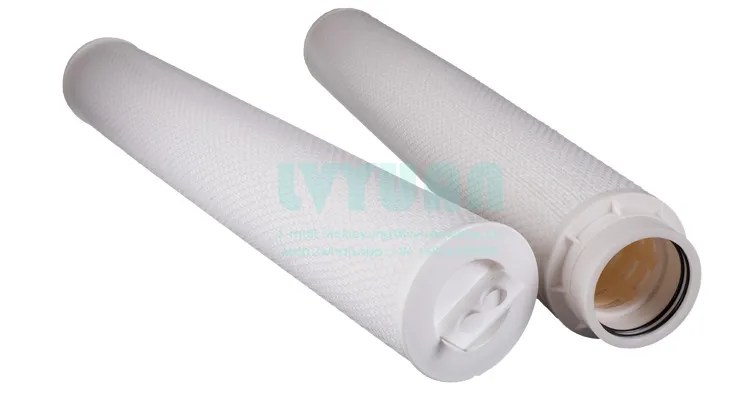

LY-HFPK & LY-HFPL Series: The LY-HFPK serves as a replacement for depth filtration with up to 1300LPM flow rate per cartridge. The LY-HFPL features a 6-inch (152mm) diameter with a strong hard cage to withstand high operating pressure.
Certificates & Quality Assurance
Packing & Delivery
Frequently Asked Questions
What is the maximum flow rate for these cartridges?
The high flow series can handle up to 1300 LPM (Liters Per Minute) per filter cartridge, significantly reducing the number of filters required for high-volume applications.
What materials are available for the filter membrane?
We offer membranes made of Polypropylene (PP), Fiberglass, and Melt Blown materials to suit different chemical compatibility and temperature requirements.
Are custom filter sizes available?
Yes, while standard lengths range from 10 to 60 inches, we can provide customized sizes and configurations to fit your specific housing requirements.
What are the typical applications for these filters?
They are widely used in RO water pre-treatment, the chemical industry, organic solvent filtration, pharmaceutical liquid processing, and the food and beverage industry.
What is the maximum working temperature?
Pleated polypropylene cartridges can operate up to 82ºC, while pleated fiberglass versions are suitable for temperatures up to 121ºC.
How is the filter cartridge sealed?
We use hot melting welding for construction to ensure a robust, leak-proof seal without the use of adhesives. Various O-ring materials like EPDM, Viton, and Silicone are available for the connectors.
