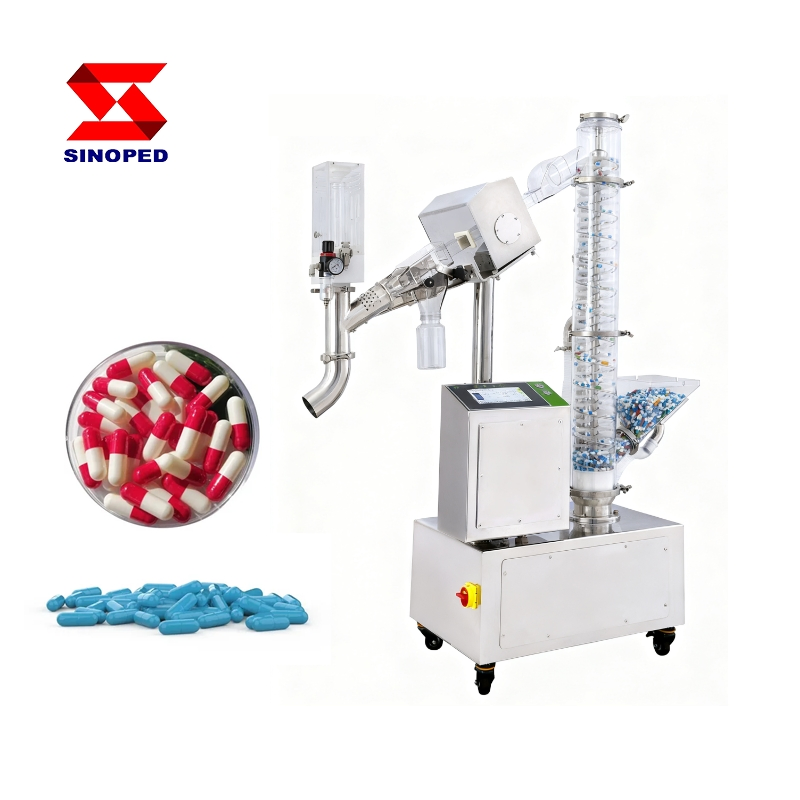

Sinoped Multifunction All in One Vertical Capsule Polisher Metal Detect Equipment

Customization: Available
Application: Chemical Industry, Cosmetic Industry, Food Industry, Food Safety, Pharmaceutical Industry
Automation Grade: Automatic

Product Description

Basic Information
Features
Sterilization Capability, Temperature Control
Machine Material
Stainless Steel
Packaging Material
Wooden Case
Warranty
1 Year
Weight
120kg
Operating Voltage
220V 50/60Hz
Production Capacity
300,000 Pills/H
Specification
1198*434*1444mm
Product Overview

The Capsule Polishing Metal Detection Integrated Machine is a multi-functional device that integrates capsule polishing, dust removal, lifting, sorting, and metal detection, suitable for all types of capsules. This equipment combines advanced polishing technology with high-frequency metal detection technology, providing superior detection results.

Its highly compatible design allows it to be paired with any type of capsule filling machine, ensuring product quality. Through multiple technological upgrades, it offers the pharmaceutical industry an efficient and safe solution, making it an indispensable piece of equipment on capsule production lines.

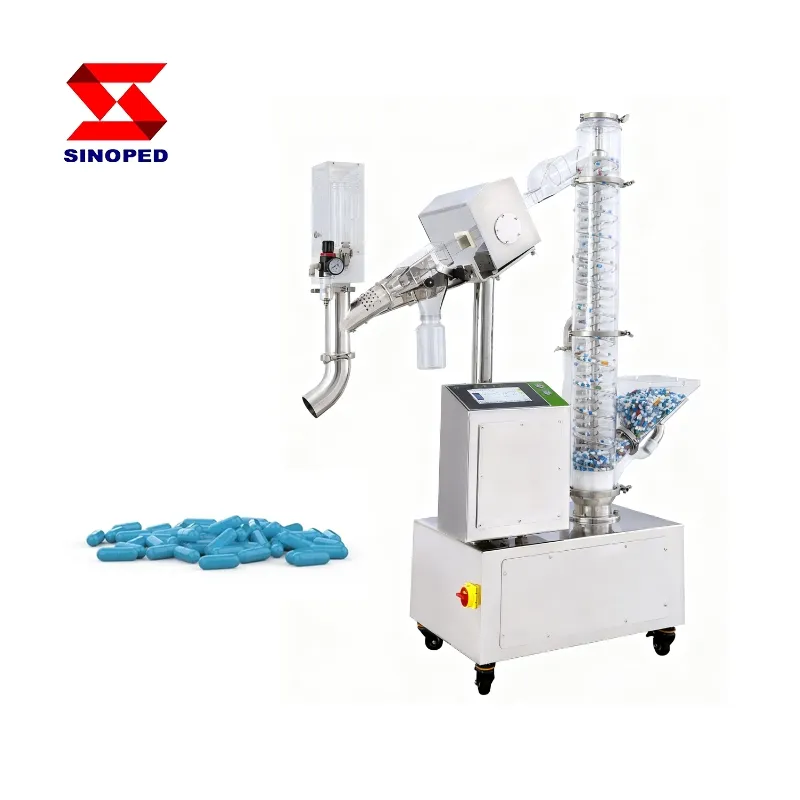

Capsule Polisher Metal Detector
Key Features & Functions
1
Metal Detection: High-frequency detection (0-800kHz) suitable for detecting and removing magnetic and non-magnetic metallic foreign objects. The detection coil is made of stainless steel and is completely sealed internally.
2
Polishing and Sorting: Removes surface dust and automatically separates empty capsules, broken capsules, and capsules with low powder content.
3
Human-Machine Interface: Single touchscreen operation. Supports password-based hierarchical control, records 100,000 events, and stores 240 product parameters. Complies with FDA 21CFR requirements.
4
Automatic Learning: Microprocessor control system with product tracking and automatic learning functions to ensure detection accuracy.
5
Seamless Rejection Structure: Integrated injection molding design eliminates unsanitary corners. Tool-free disassembly facilitates cleaning and meets hygiene standards.

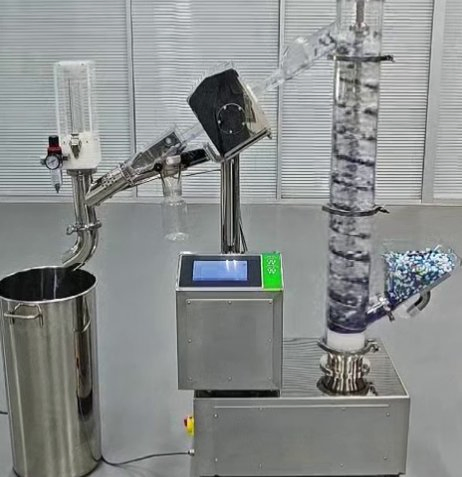

Detail 1

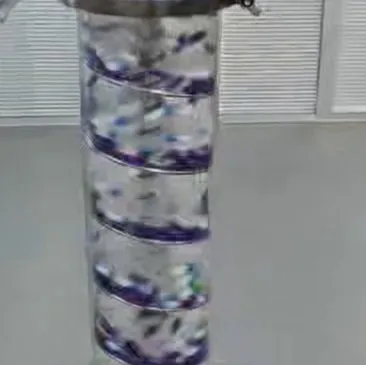

Detail 2

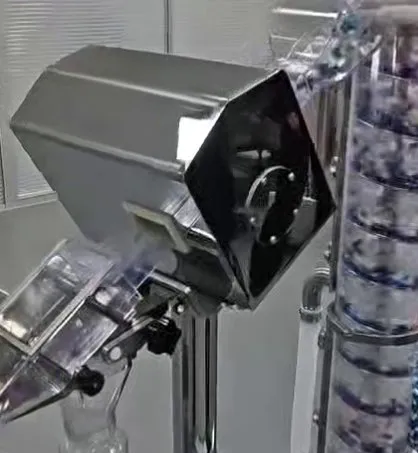

Detail 3
Technical Specifications
Model Compatibility00# 0# 1# 2# 3# 4#
Feed Inlet Height697mm
Equipment Dimensions1198*434*1444mm
Max Production Capacity300,000 pills/H
Weight120kg
Vacuum Suction3.0m³/min-0.02mpa
Operating Voltage220V 50/60Hz
Design & Dimensions
  • Quick Disassembly: Tool-free design for easy operation and cleaning.
  • 360° Rotation: Polishing area supports full rotation for flexible equipment connection.
  • Variable Frequency Technology: Ensures quiet and stable operation with soft brushes to prevent damage.
  • Material Standards: 316L stainless steel for contact parts; 304 for others. Complies with GMP and FDA requirements.

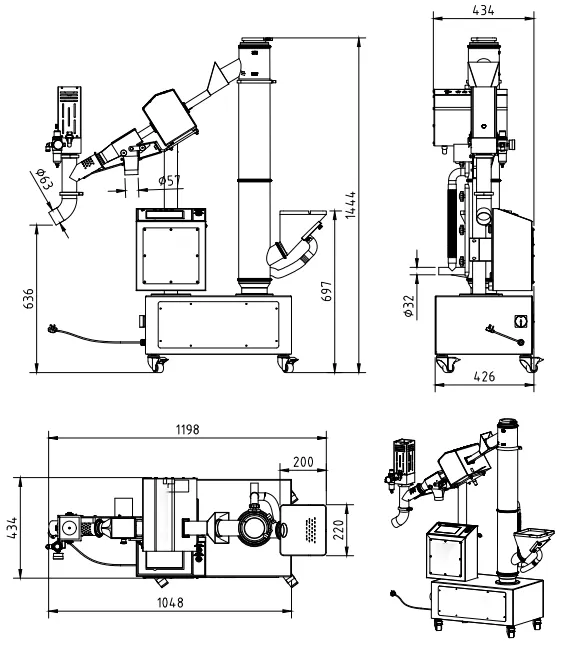

Technical Drawing
After Sales Service

1. Long-term technology supply and after-service support.

2. Engineers available to service machinery overseas.

3. Support for visa fees, travel, and accommodation for technical personnel during overseas service.

Company Profile

We are a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment. With a well-experienced team and a professional design institute, we have developed many types of machinery in various varieties.

Our products are exported to many countries and areas, including Korea, India, Indonesia, USA, Australia, and throughout Europe. We supply production lines, turn-key projects, and technical know-how to ensure our customers get high-quality goods at competitive prices.

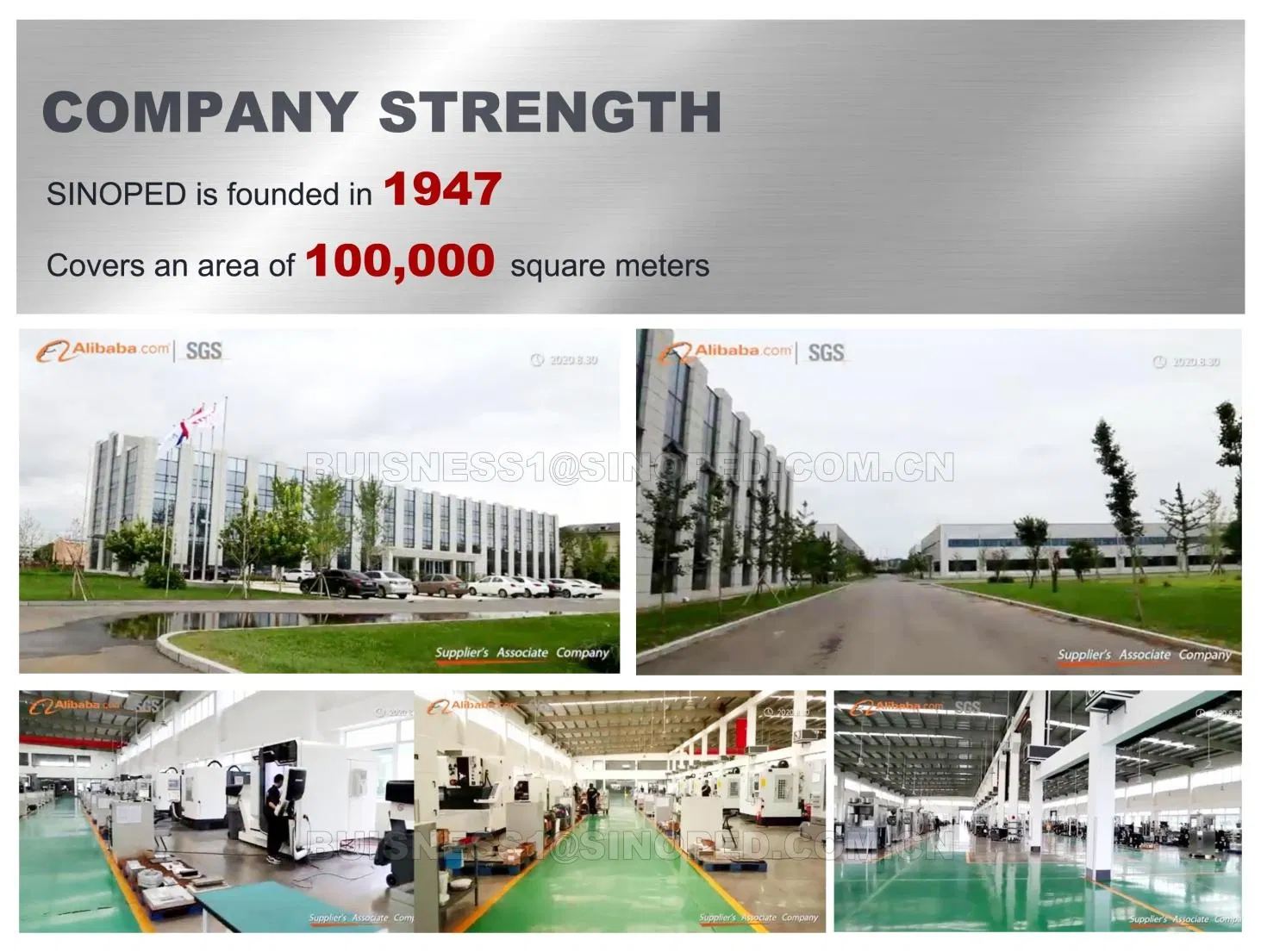

Factory

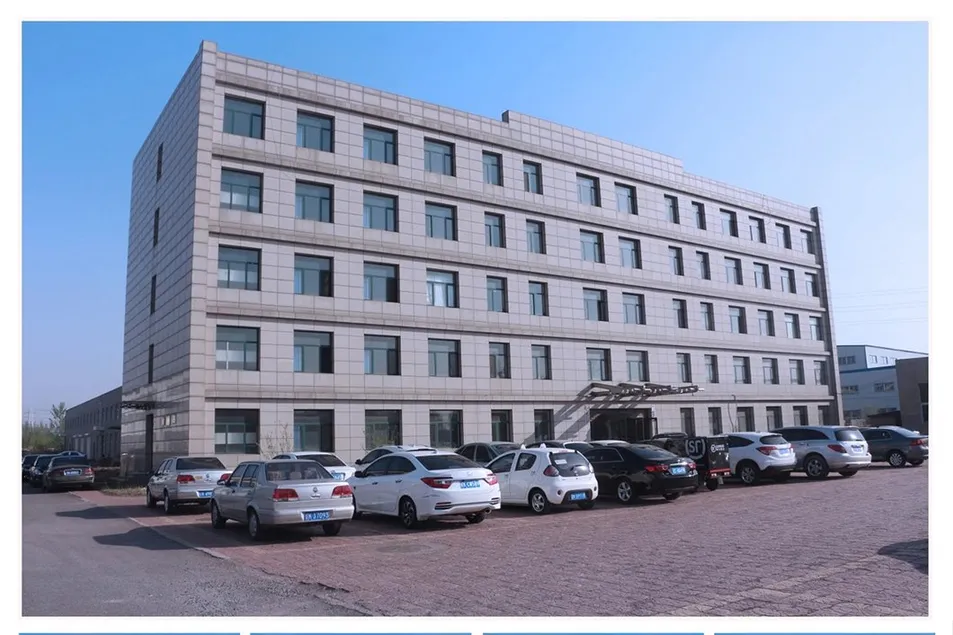

Production
Quality Control
Frequently Asked Questions
1. How is product quality guaranteed?
We always provide a pre-production sample before mass production and conduct a final inspection before shipment.
2. What types of equipment can be purchased?
We offer Packaging Machines, Mixing Machines, Clean Room solutions, Filling Machines, and Gummy Making Machines.
3. Why choose your equipment over other suppliers?
We are highly professional in pharmaceutical equipment and machines with extensive design and manufacturing experience.
4. What service terms are provided?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA. Accepted Payment: T/T, L/C, Western Union in USD, EUR, or CNY.
5. Does the equipment comply with hygiene standards?
Yes, all parts in contact with materials are made of 316L stainless steel or food-grade materials, complying with GMP and FDA requirements.
6. Is technical support available for international customers?
Yes, we provide long-term technology supply and can dispatch engineers overseas for machinery service and maintenance.
