🟦 Basic Information
Type
High Flow Rate Filter
Filtration Grade
PRE Filter
Material
Polypropylene (PP)
Micron
1/3/5/10/25/50/75/100/150
Sealing Method
Hot Melting Welding
Specification
10/20/30/40/50/60 inch
🟦 Product Description
The high flow replacement filter cartridge series is designed for use in various filter housings containing 1-37 cartridges. Its large diameter and significant filtration area reduce the required number of cartridges and housing dimensions, offering higher dirt holding capacity and longer service life for industrial water plant projects.
| Product Name |

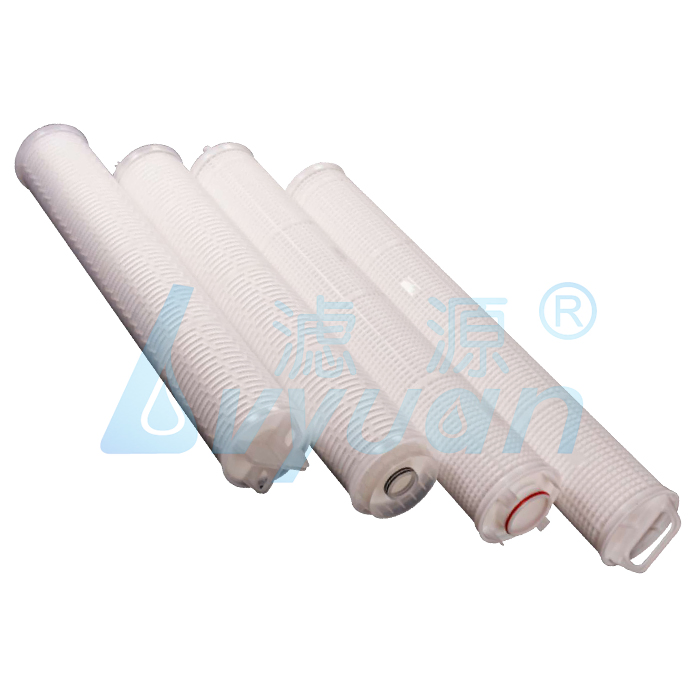

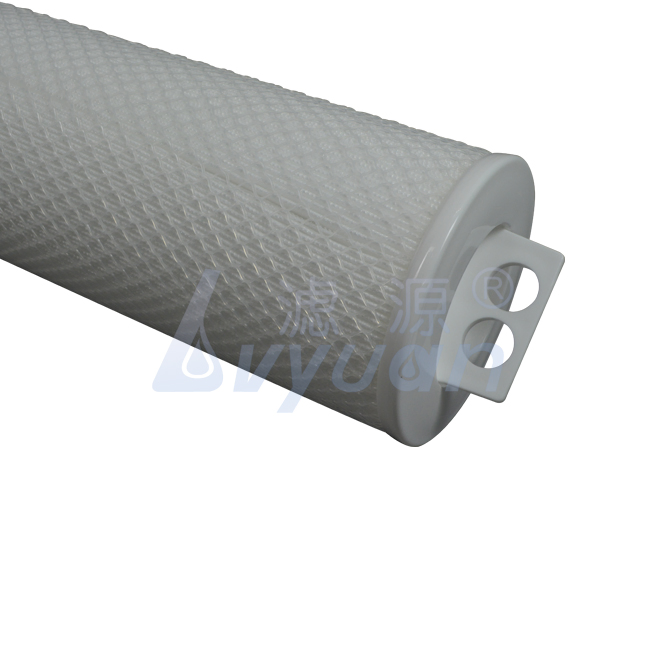

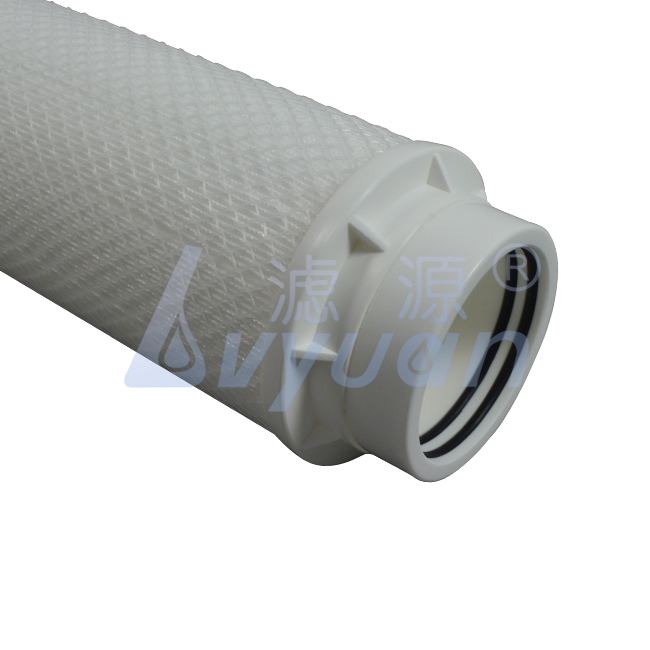

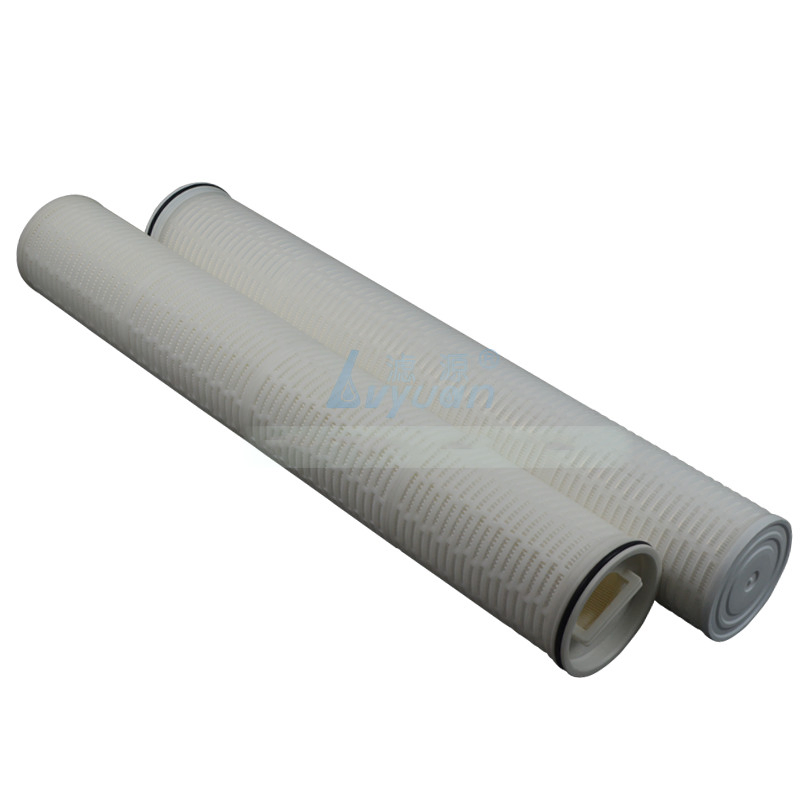

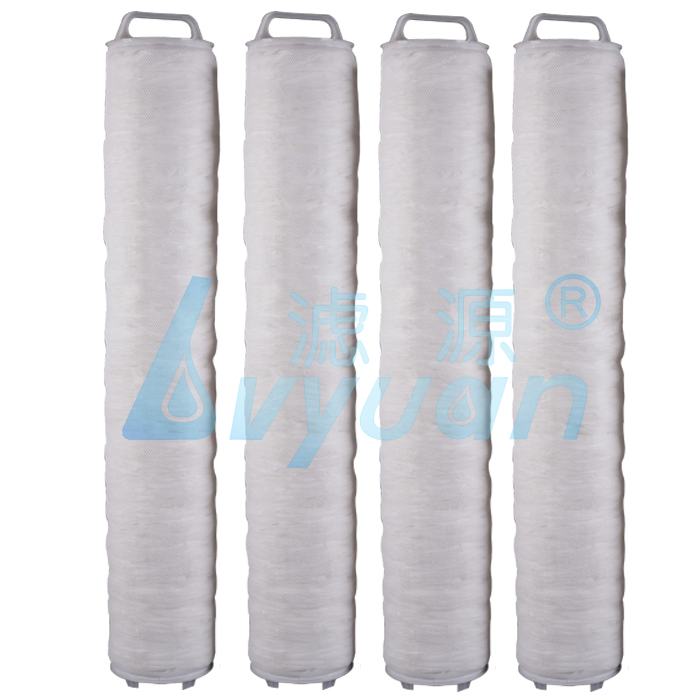

Large water capacity PP pleated material 60 inch 5 micron water cartridge filter for power plant treatment |
| Filtration Media |
Polypropylene membrane & Fiberglass membrane |
| Support/Core Material |
Polypropylene |
| Filtration Microns |
1μm, 2μm, 3μm, 5μm, 10μm, 20μm, 25μm, 30μm, 50μm |
| Length Options |
10", 20", 30", 40", 50", 60", Customized |
| Max. Temperature |
PP: 82ºC | Fiberglass: 121ºC | Melt blown: 65ºC |
| Applications |
Chemical industry, Organic solvents, Alcohols, Pharmaceutical, Food industry, Electronic industry, RO water treatment, Medical liquid filtration |
🟦 General Description & Series

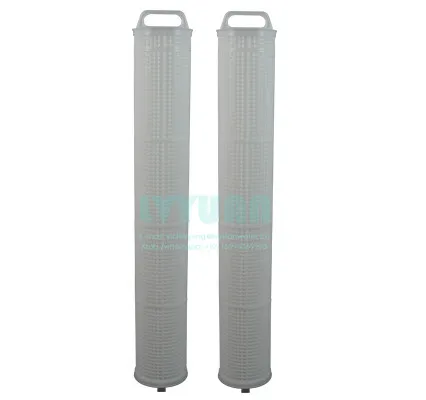

LY-HFM Series: Designed for housings with 1-37 cartridges. Large diameter ensures reduced cartridge count and housing size, ideal for high flow rate requests in industrial water systems.

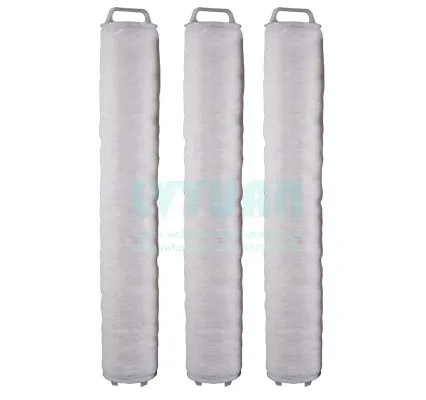

LY-HFMH & LY-HFPM Series: Horizontal pleated big flow water filter cartridges. These provide high dirt holding capacity and longer service life for large-scale water treatment projects.

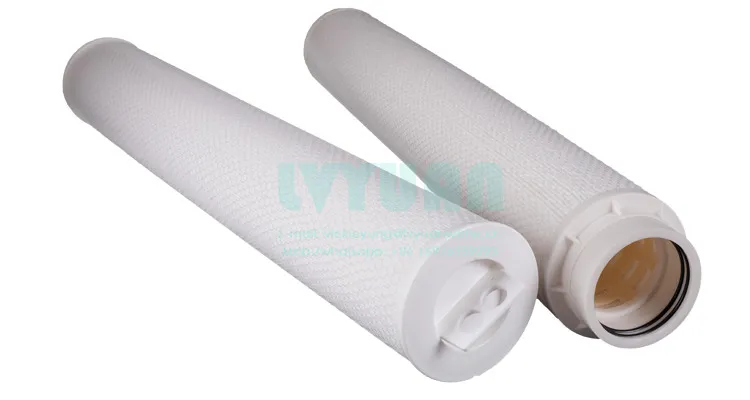

LY-HFPK Series: Replacement for depth filtration in high flow applications like RO pre-filtration. Features up to 1300LPM flow rate per cartridge, significantly reducing capital investment and space.

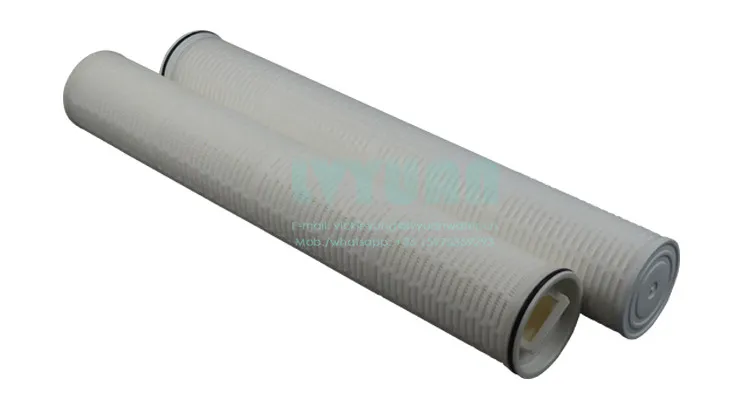

LY-HFPL Series: 6 inch/152mm large diameter made of 100% polypropylene. The strong hard cage allows for higher operation pressure and long service life with low manpower requirements.
🟦 Quality Certificates

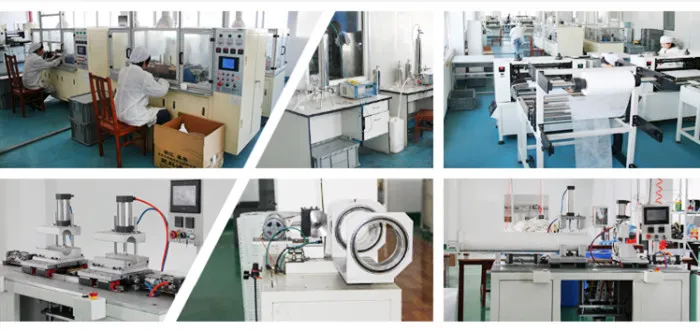

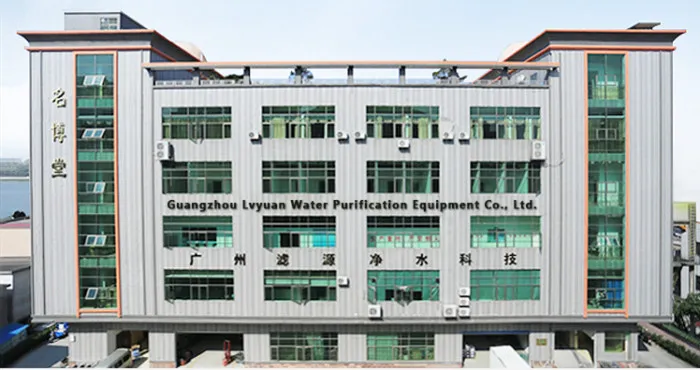

🟦 Production & Facilities
🟦 Packing & Delivery
🟦 Frequently Asked Questions
What are the main advantages of using high flow filter cartridges?
The large diameter design provides a much larger filtration area, which reduces the number of cartridges needed and allows for smaller housing sizes, saving both space and investment costs.
What micron ratings are available for these filters?
We offer a wide range of filtration grades including 1μm, 3μm, 5μm, 10μm, 25μm, 50μm, 75μm, 100μm, and 150μm to suit different industrial needs.
What is the maximum operating temperature?
The maximum working temperature depends on the material: Polypropylene can handle up to 82ºC, while Fiberglass can withstand up to 121ºC.
In which industries can these filters be applied?
They are widely used in the chemical industry, RO water treatment, food and beverage production, pharmaceutical filtration, and power plant water treatment.
Can the filter size be customized?
Yes, while standard lengths range from 10 to 60 inches, we can provide customized sizes to meet specific equipment requirements.
What sealing methods are used to ensure no bypass?
We use hot melting welding for the construction and high-quality O-rings (Silicone/EPDM/Viton/PTFE) to ensure a perfect seal and prevent any fluid bypass.
