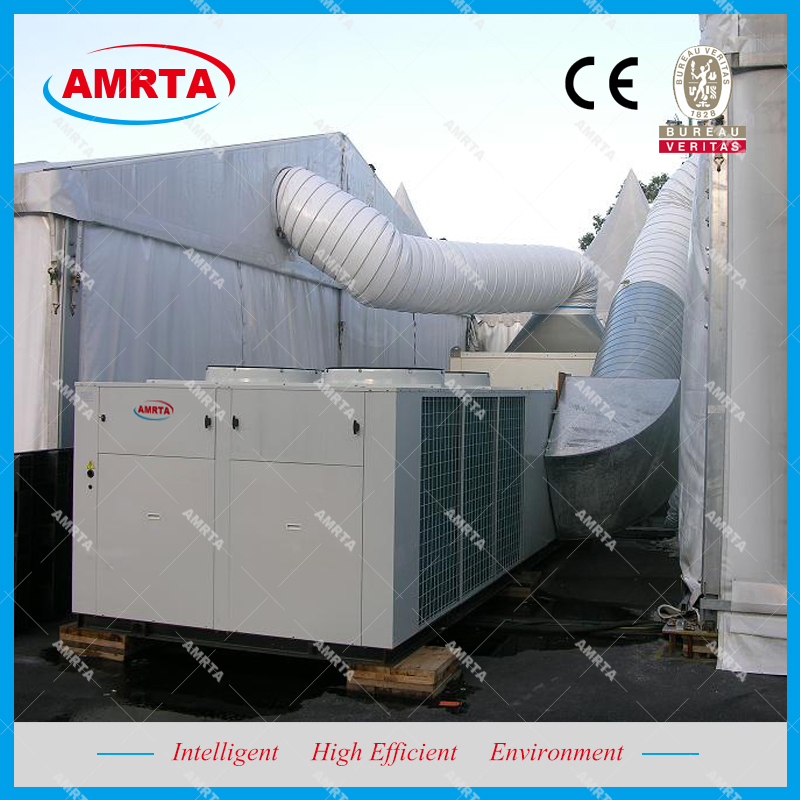

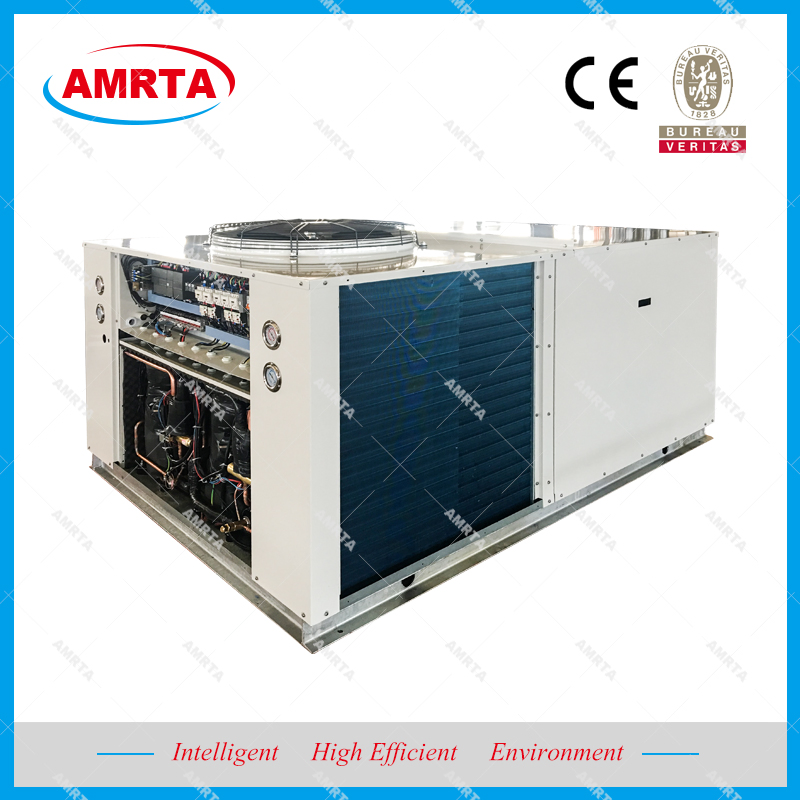

All-in-One Package Unit Air Conditioning

Customization: Available
Type: Rooftop Packaged Unit
Air Tube Material: Galvanized Sheet

Product Description

Basic Specifications
Model NO.
RTU17-300
Application Fields
Industrial Air Conditioner
Operating Voltage
380/400 VAC
Capacity
10kw-300kw
Refrigerant
R410A/R407c/R134A/R22
Operating Voltage
380/400 VAC
Mounting
Floor Standing
Lifetime
10~15 years
Certification
CE
Power Supply
50Hz/60Hz
Cooling/Heating
Cooling & Heating
HS Code
8418612090
Corrosion Durability
Higher
Production Capacity
6000PCS/Year
Rooftop Packaged Unit Characteristics

Key Structural Features

Durable Structure: Galvanized steel panels with polyester powder painting for total atmospheric resistance.
High Efficiency: Hermetic scroll compressors with built-in thermal overload protection and vibration dampers.
Acoustic Insulation: Ripple type insulation for compressor and thermal insulation for coils.
Centrifugal Fans: Forward curve centrifugal fans for air treatment and axial fans for condensation.
Smart Control: Easy operation line controller with error indication and timing functions.

Optional Enhancements

Free cooling function for low ambient temperatures and Economizer with dampers.
BMS device compatibility and T3 Tropical climate configuration.
Heat recovery up to 100% and G4/Bag filter options.

Technical Data & Diagrams

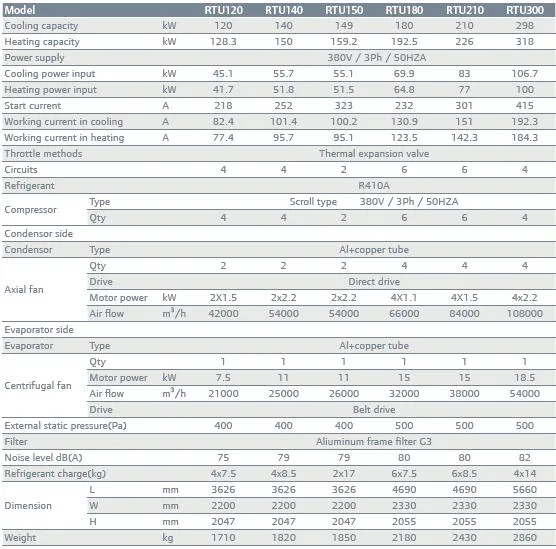

Packaged Unit Data 1

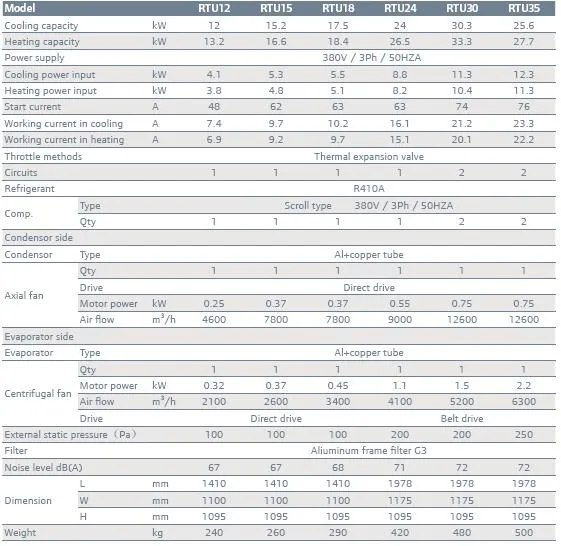

Packaged Unit Data 2

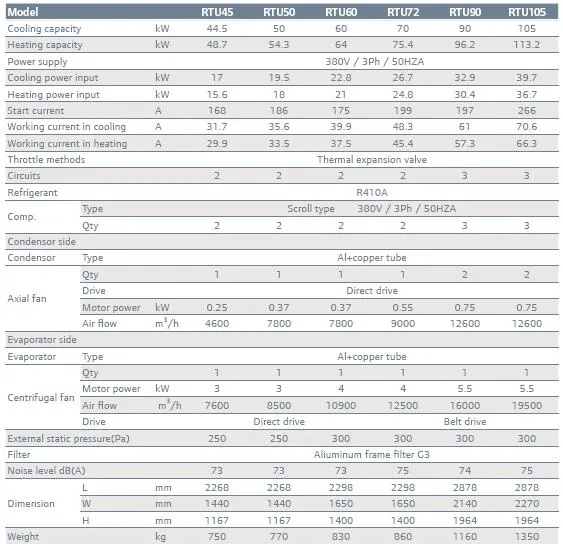

Packaged Unit Data 3
Packaged Unit Dimensions 1
Packaged Unit Dimensions 2
Packaged Unit Dimensions 3

Frequently Asked Questions

What is the cooling capacity range of these rooftop units?
The units offer a wide capacity range from 10kw up to 300kw, suitable for various industrial and commercial requirements.
Is the unit capable of both heating and cooling?
Yes, the standard unit is designed for both Cooling and Heating functions to provide year-round climate control.
Can this unit operate in tropical or high-temperature environments?
Absolutely. We offer an optional T3 (Tropical climate) configuration specifically designed for high ambient temperatures.
What type of compressor technology is used?
The units utilize high-efficiency hermetic scroll compressors, which include built-in thermal overload protection for increased reliability.
Does the system support energy-saving features?
Yes, energy-saving options such as 100% heat recovery, free cooling functions, and economizers with fresh air dampers are available.
What is the estimated service life of the rooftop unit?
With regular maintenance, these rooftop packaged units have a typical lifetime of 10 to 15 years.
